Wireless WiFi Switch Relay Module, DC5V 12V 24V 32V
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
General Description

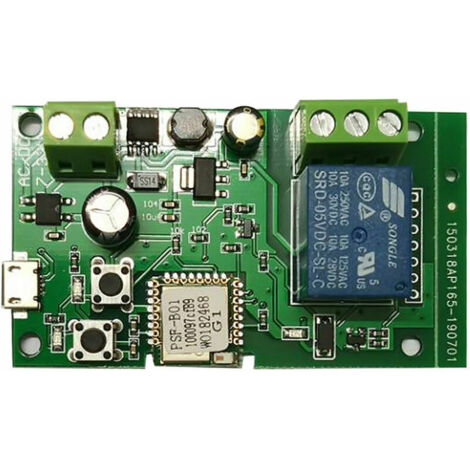

This wireless relay module is an economical device that allows users to remotely control various devices via the EWeLink application, accessible from anywhere in the world. It offers advanced features such as synchronization schedules and two operating modes: progressive mode and self-locking mode, allowing for flexible use.Technical Specifications
- Operating Voltage: 5V / 7-32V DC
- Power Consumption: <1W
- Standby Current: 80mA
- Maximum Input Current: 10A
- Maximum Power: 2200W
- Relay Life: ≥ 1 million cycles
- Electrical Insulation Resistance: 100MΩ
- Electrical Shock Voltage: 1000V
- Maximum Relay Pull-in Time: 15ms
- Maximum Relay Release Time: 5ms
- Wireless Standard: 2.4 GHz, 802.11 b/g/n
- Operating temperature: -40 to +70 degrees
- Operating humidity: 40% ~ 80% RH
- Item size: 67 * 41 * 20 mm
- Package size: about 10 * 7 * 4 cm
- Package weight: about 35g
Compatibility and accessories
- Compatible with Amazon Alexa, Google Home/Nest, and IFTTT
- Mobile app: EWeLink available on Android and iOS
Use
This module allows you to remotely control devices such as lights, electric kettles, rice cookers, and electric curtains. It supports up to 8 programmed timers for each device, offering great flexibility in managing connected devices.Other Information
- You can scan the QR code on the packaging to download the instruction manual.
- Three LEDs indicate the operating mode, WiFi status, and relay on/off status.
Features
- BrandTEHTUY
- Length6.7 cm
- Width4.1 cm
- Height2 cm
- Weight35 g
