General description

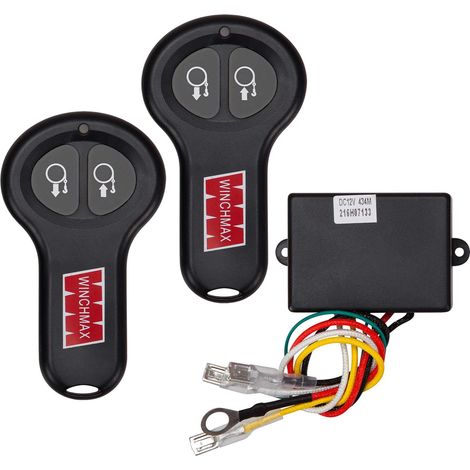

The WINCHMAX Wireless Winch Remote Control Kit is designed for 24V systems and includes two handheld controllers for convenient operation. With an operating range of over 30 meters (100 feet), this remote control kit features sealed rubber buttons for durability and ease of use. It includes a pre-fitted battery in the remote and is equipped with heat shielded cables and insulated terminals for safety. The compact receiver measures just 60mm x 45mm x 22mm, making it easy to fit inside most control box enclosures.
Technical specifications
- Operating Voltage: 24V
- Operating Range: Over 30m / 100ft

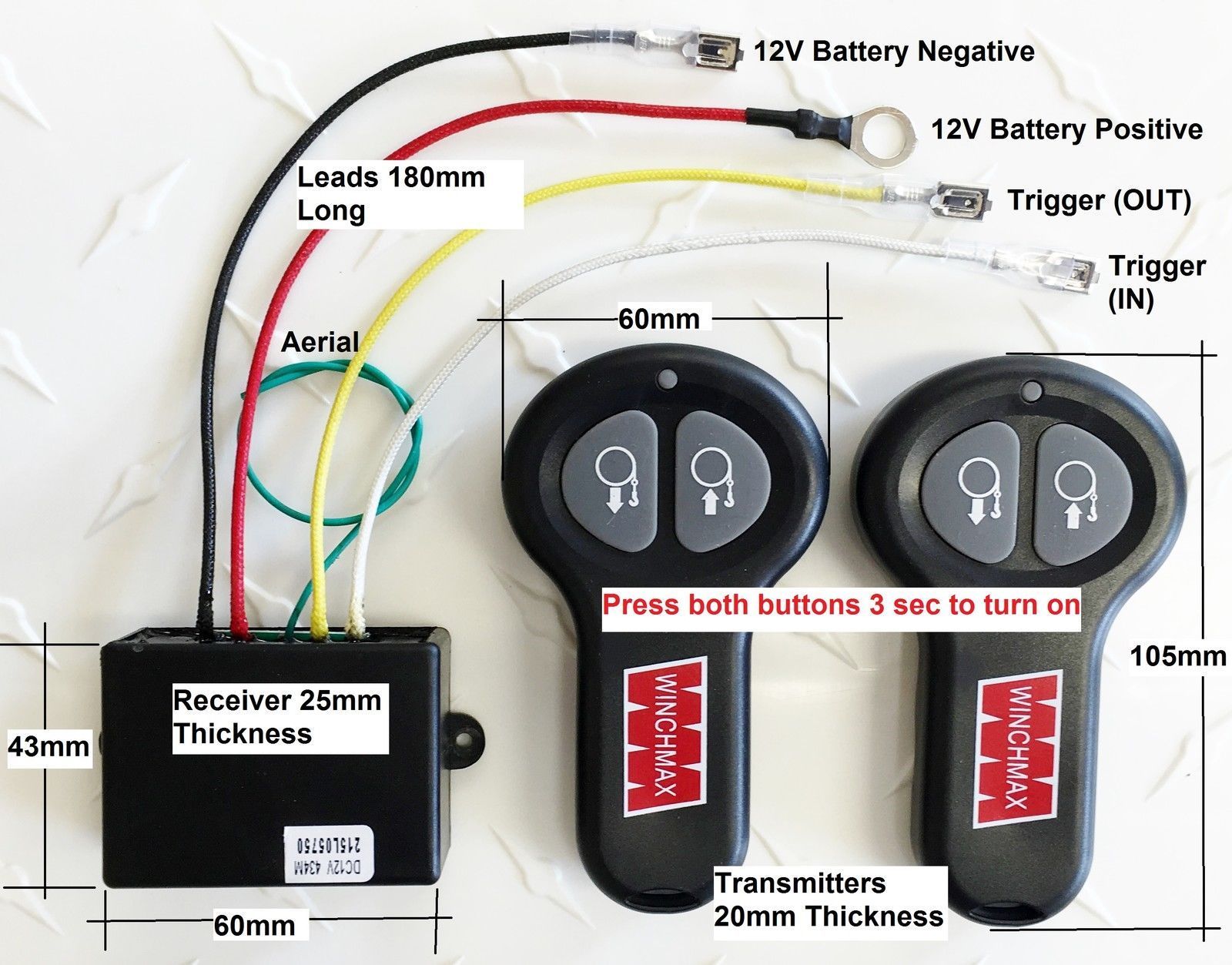

- Receiver Dimensions: 60mm x 45mm x 22mm
Installation
- Ensure correct installation to avoid damage to the micro circuitry.
- Connect the two output wires of the receiver to the supply voltage (24V).

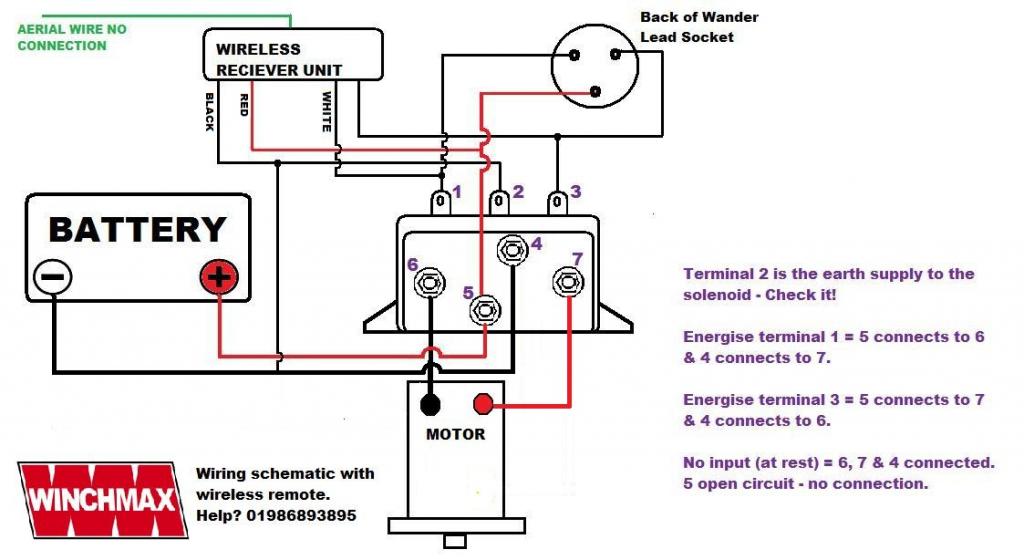

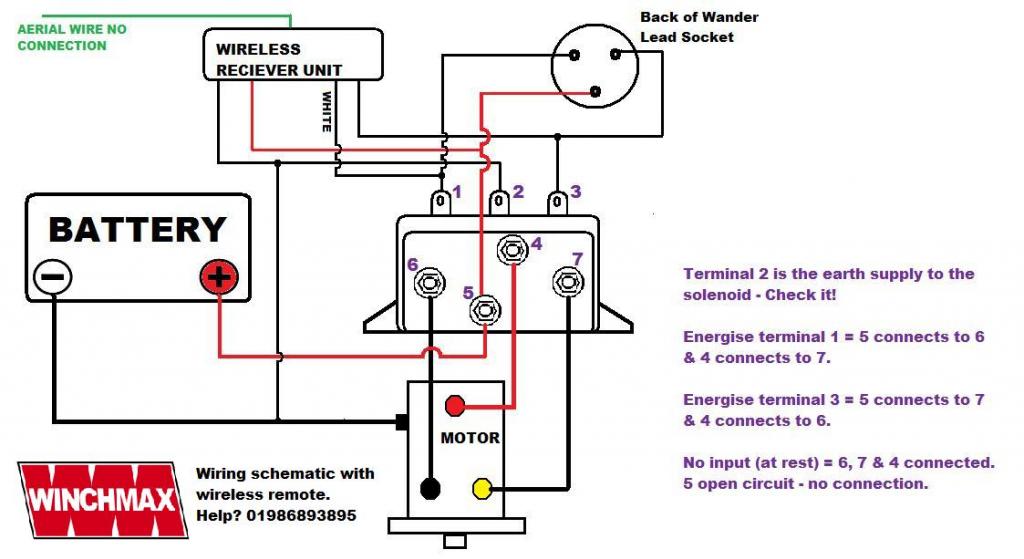

- Use the output to operate the trigger terminals on a secondary contactor (solenoid) to switch the main load (e.g., a winch).
- Do not connect the outputs to earth to prevent short circuits.
Usage

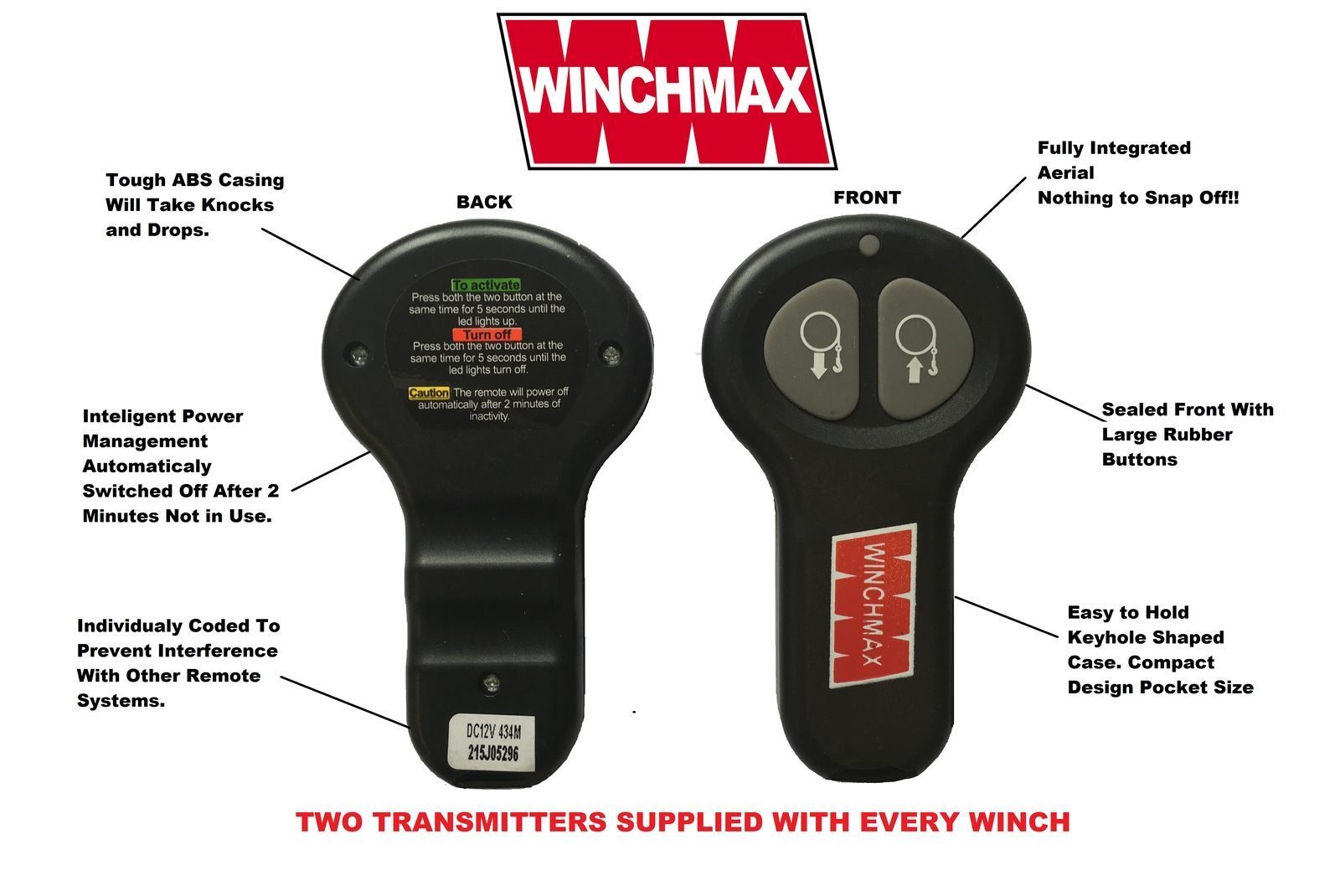

- Press and hold both buttons to power on/off the remote.
- The remote will auto shut off after 5 minutes of inactivity to preserve battery life.
- For winches with a plug-in wander lead, identify the positive feed wire to connect to the trigger terminals of the solenoid.
