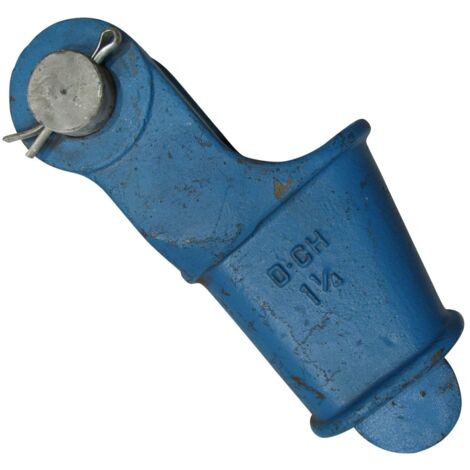

X1 1 1/8" Painted Open Wedge Socket With Bolt And Pin - Grip Tail Wire Rope

Sold by SecureFix Direct

You may also like

Faithfull Brick LifterFAITHFULL
2 options

Faithfull Brick Lifter

2
Free shipping
Faithfull Tack Lifter - V Shaped HeadFAITHFULL
2 options

Faithfull Tack Lifter - V Shaped Head

2
Free shipping
Gorilla Gripper Advantage (0-19mm) ROU32630ROUGHNECK

Gorilla Gripper Advantage (0-19mm) ROU32630

1
Free shipping
Fiskars WoodXpert Log Hook in Black and Orange with Protective SheathFISKARS

Fiskars WoodXpert Log Hook in Black and Orange with Protective Sheath

7
Free shipping
KERB CLAMP FOR LIFTING HANDLING CONCRETE GRANIT KERB STONES MONTOLIT 16MONTOLIT

KERB CLAMP FOR LIFTING HANDLING CONCRETE GRANIT KERB STONES MONTOLIT 16

4
£384.21
Free shipping
Lifting Beam Clamp with Shackle 1 Ton (1T Rigging Adjustable Girder Clamp Hoist)SECUREFIX DIRECT

Lifting Beam Clamp with Shackle 1 Ton (1T Rigging Adjustable Girder Clamp Hoist)

Free shipping
4.5 Ton 25-50MM Vertical Plate Lifting Clamp - 4500KG Grip LiftSECUREFIX DIRECT

4.5 Ton 25-50MM Vertical Plate Lifting Clamp - 4500KG Grip Lift

Free shipping
600KGS Lifting Magnet - Magnetic Lifter / Permanent / Handling / HoistSECUREFIX DIRECT

600KGS Lifting Magnet - Magnetic Lifter / Permanent / Handling / Hoist

Free shipping
88 Brick TongsMARSHALLTOWN

88 Brick Tongs

Free shipping
Precast Concrete Lifting Clutch 1.5T - 2.5T &x28Ring Panel Device Equipment&x29SECUREFIX DIRECT

Precast Concrete Lifting Clutch 1.5T - 2.5T &x28Ring Panel Device Equipment&x29

Free shipping
Permanent Lifting Magnet Magnetic Lifter 100KG &x28Crane Hoist Lift Handling Block Samson&x29SECUREFIX DIRECT

Permanent Lifting Magnet Magnetic Lifter 100KG &x28Crane Hoist Lift Handling Block Samson&x29

Free shipping
Precast Concrete Lifting Clutch 2.5T (Grade 80 Lift Ring Panel Equipment Anchor)SECUREFIX DIRECT

Precast Concrete Lifting Clutch 2.5T (Grade 80 Lift Ring Panel Equipment Anchor)

Free shipping
neodymium magnet 140 kg force diameter 60 mm, magnets with lifting rings powerful for industry and science, magnetic fishingTINOR

neodymium magnet 140 kg force diameter 60 mm, magnets with lifting rings powerful for industry and science, magnetic fishing

Free shipping
X2 Bessey BEYCEPS Lifting Arm Assembly One Hand Clamps 180kg Lifting CapacityBESSEY

X2 Bessey BEYCEPS Lifting Arm Assembly One Hand Clamps 180kg Lifting Capacity

Free shipping
Q235 Stone Lifting Clamp Steel Stone Transport Clamp Vertical Stone Lifting Clamp Pavement Moving Clamp, Maximum Load: 300kg
£1 offered

Q235 Stone Lifting Clamp Steel Stone Transport Clamp Vertical Stone Lifting Clamp Pavement Moving Clamp, Maximum Load: 300kg

£69.99
Free shipping
Neodymium Magnet 140 kg Force Diameter 60 mm, Magnets with Powerful Lifting Rings for Industry and Science, Magnetic FishingWOIYIC

Neodymium Magnet 140 kg Force Diameter 60 mm, Magnets with Powerful Lifting Rings for Industry and Science, Magnetic Fishing

Free shipping
Vertical lifting clamps, Paving stone clamp, Sidewalk support, 350 kg, Supports stones from 30 to 51 cm, For lifting and transporting
£4 offered

Vertical lifting clamps, Paving stone clamp, Sidewalk support, 350 kg, Supports stones from 30 to 51 cm, For lifting and transporting

£249.99
Free shipping
Quick Release Manhole Lifting Pin 2T (Galvanised Pipe Ring Chamber Eyes)SECUREFIX DIRECT

Quick Release Manhole Lifting Pin 2T (Galvanised Pipe Ring Chamber Eyes)

Free shipping
Quick Release Manhole Lifting Pin 1T (Galvanised Pipe Ring Chamber Eyes)SECUREFIX DIRECT

Quick Release Manhole Lifting Pin 1T (Galvanised Pipe Ring Chamber Eyes)

Free shipping
Stanley FatMax Tradelift Lifting Clamp Installation 150kg + Plus 685mm ExtensionSTANLEY

Stanley FatMax Tradelift Lifting Clamp Installation 150kg + Plus 685mm Extension

£129.98
Free shipping

Compare with similar items

Product information

Description

General description

These Painted Open Wedge Sockets with Bolt and Pin are designed for gripping wire rope across a wide range of applications. They retain the rope's full strength while securely holding it in place, making them ideal for various lifting and towing tasks.

Technical specifications

  • Size: 1 1/8"
  • Breaking Load: 60 Ton
  • Product Codes and Dimensions:
  • SFWS10: A (11.9 mm), B (6.8 mm), C (75 mm), D (140 mm), E (20.7 mm), F (20 mm), G (21.7 mm), H (13.5 mm), Breaking Load (8 Ton)
  • SFWS13: A (14.5 mm), B (9 mm), C (104.8 mm), D (180 mm), E (26.2 mm), F (25 mm), G (25.7 mm), H (15.7 mm), Breaking Load (10 Ton)
  • SFWS16: A (18.2 mm), B (12 mm), C (123 mm), D (210 mm), E (30.6 mm), F (30 mm), G (32.5 mm), H (13.6 mm), Breaking Load (20 Ton)
  • SFWS20: A (21.8 mm), B (12.9 mm), C (148 mm), D (250 mm), E (35 mm), F (35 mm), G (37.5 mm), H (17 mm), Breaking Load (25 Ton)
  • SFWS26: A (29.6 mm), B (19.8 mm), C (192 mm), D (320 mm), E (49.9 mm), F (50 mm), G (51 mm), H (22.8 mm), Breaking Load (50 Ton)
  • SFWS28: A (29.4 mm), B (22.5 mm), C (200 mm), D (365 mm), E (55 mm), F (55 mm), G (61.2 mm), H (24.6 mm), Breaking Load (60 Ton)
  • SFWS32: A (34.1 mm), B (25.9 mm), C (220 mm), D (405 mm), E (63.8 mm), F (65 mm), G (64.1 mm), H (29.5 mm), Breaking Load (60 Ton)

    • Features

    • Brand
      SECUREFIX DIRECT
    • Pcs per pack
      1
    • Height
      2.25 cm
    • Width
      2.94 cm
    • Length
      1.82 cm
    • Material
      Two-material
    • Weight
      100 g
    • ManoMano Reference
      ME27140182
    • MMID
      154930513186
    • Product code
      SFWS28
    • EAN
      600988506077
