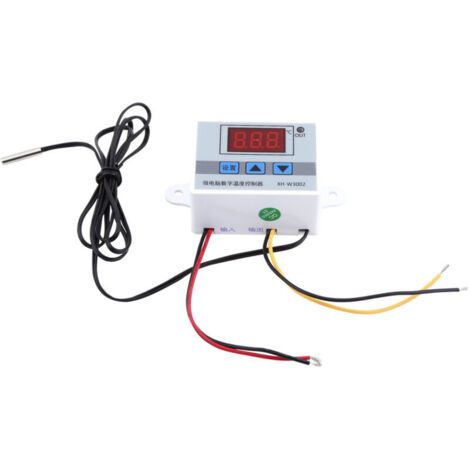

XH-W3002 12V DC Thermostat - Digital thermostat with waterproof probe up to 1m depth - Temperature controller for heating or cooling - 0.1°C accuracy

1. The flame-retardant ABS housing is non-toxic and environmentally friendly, has a long service life, and will not discolor or deform.
2. The probe uses a stainless steel shell and resin sealing treatment, making it waterproof and rustproof.
3. Wide temperature control range from -50°C to 110°C and high-temperature control accuracy of 0.1°C.
4. Can be installed directly or integrated into an industrial control equipment panel, convenient and quick.
5. Widely used in hatching areas, equipment enclosures, air conditioning systems, temperature control protection, and other fields.

Specification:

Description:
This delicate digital display temperature controller can set the start and stop temperature. The display and control temperature can be set to 0.1°C. It is convenient to install and the wiring is simple. With high accuracy and a long service life, it can completely replace mechanical temperature controllers.
Features:
The flame-retardant ABS housing is non-toxic and environmentally friendly, with a long service life and will not discolor or deform.
The probe uses a stainless steel shell and resin sealing treatment, making it waterproof and rust-resistant.
Wide temperature control range from -50°C to 110°C and high-temperature control accuracy of 0.1°C.
Can be installed directly or integrated into an industrial control equipment panel, convenient and quick.
Widely used in hatching areas, equipment cases, air conditioning systems, temperature control protection, and other fields.
Specifications:
Input Voltage: DC12V, DC24V, AC220V (optional)
Output Voltage: Equal to input voltage
Temperature Measurement Range: -50 ~ 110°C
Temperature Control Range: -50 ~ 110°C
Temperature Measurement Accuracy: ± 0.2°C
Temperature Control Accuracy: ± 0.1°C
Loading Power: 120W (12V), 240W (24V), 1500W (220V)
Measurement Input: 1-meter NTC10K waterproof probe
Output: 10A maximum
Installation Hole Distance: 73mm / 2.87 inches
Hole Diameter: 4mm / 0.15 inches
Size: 60 x 45 x 31 mm / 2.36 x 1.77 x 1.22 inches
Instructions:
CodeFunctionSettingRangeDefault
P0Start Temperature -50 to 100°C
P1Stop Temperature -50 to 100°C
P2Calibration Temperature -10 to 10°C
P3Delay Start 0 to 10 minutes 0 minutes P0: Press the Set button to enter the menu; the screen displays P0. Press the Set button again and press the Up or Down button to set the start temperature.
P1: Press the Set button to enter the menu; the screen displays P0. Press the Up or Down button until the screen displays P1, then press the Set button again and press the Up or Down button to set the stop temperature.
P2: Press the Set button to enter the menu; the screen displays P0. Press the Up or Down button until the screen displays P2, then press the Set button again and press the Up or Down button to set the calibration temperature. Measured temperature + calibrated temperature = actual temperature; for example, if the measured temperature is 0.5°C higher than the actual temperature, the calibrated temperature should be -0.5°C.
P3: Press the Set button to enter the menu; the screen displays P0. Press the Up or Down button until the display shows P3, then press the Set button again and press the Up or Down button to set the delayed start time. This function is normally used for compressor refrigerators; you can ignore it if you don't need this feature.
Package includes:
1 x thermostat
Note: The input voltage of the temperature controller is AC220V and cannot be AC110V.
Please ensure your power supply voltage is correct before purchasing. Thank you for your understanding.
