Description

General description

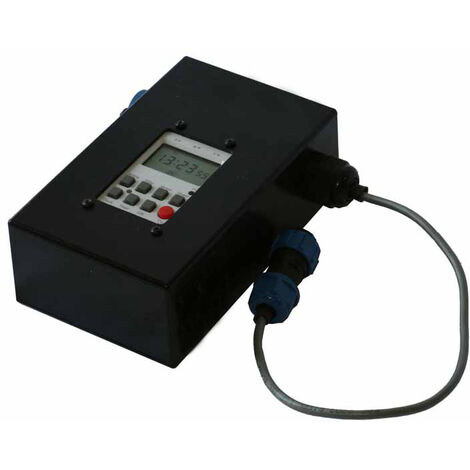

This accessory extends the functions of the Heated Bat Box to become a programmable heated bat box. It can be fitted to new Heated Bat Boxes or retro-fitted to boxes already installed. Designed to match the simple aesthetics of the temperature controller, it is the same size and can be positioned side by side or stacked on top to save space. The Yearly Programmer allows for up to 16 separate heating periods per year, although most applications will typically require just one heating period, such as switching on in Spring (e.g., 15 April) and off in Autumn (e.g., 1 November).

Technical specifications

Materials: Housing - ABS plastic

Display: Liquid Crystal

Heating Periods: Up to 16 per year

Access: No access to internals - no user serviceable components

Cable: Approx 40cm

Connectors: 4 pin shrouded connectors to match Heated Bat Box

Protection: Utilises RCD circuit breaker and mains fuse in temperature controller

Power Consumption: Less than 2W

Power Supply: Draws power for switching from temperature controller

Operating Voltage: 220 to 240V AC

Battery: Time and settings retained in memory by tabbed and permanently fixed lithium-ion battery; recommended battery replacement by manufacturer every 3 years

Dimensions: Height: 55mm; Width: 95mm; Depth: 156mm; Weight: 350g (connectors and cable extra)

Installation

The installation of the plug and play Yearly Programmer is straightforward and does not require any tools or particular expertise. It can be installed in a few minutes by connecting it to the Heated Bat Box inside the building next to the temperature controller using the existing connectors. After connecting, the current time and date need to be set, along with the dates for switching the heater on and off.

Usage

Once set, the Yearly Programmer will switch the bat box heater on and off on the same dates every year. It draws power for switching from the temperature controller and retains the time and date settings using a small internal battery, eliminating the need for a separate power supply and additional cables. The bat box's temperature controller continues to regulate the temperature inside the bat box, and the protection against electric shock provided by the RCD plug also covers the Yearly Programmer.

Features

Brand
OTHERS
Power source
Corded
Smart
No
Colour
White
Product finish
Matt
Height
55 mm
Width
95 mm
Material
Plastic
Programming mode
Pre-programmed
Weight
350 g
Pilot wire support
Yes
Heating system connection type
Corded
Control
Manual control
Compatible equipment type
Heat pump dryer
Thermostat type
Programmable
ManoMano Reference
ME74463583
MMID
754538053363
Product code
NestboxCompanyB3BYPZZZZ
EAN
9556787645329
