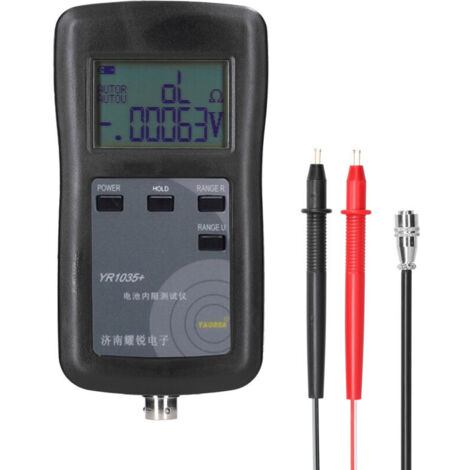

YR1035 4-Wire System Internal Battery Resistance Tester with LCD Display for Lead Acid, Lithium Ion, Lithium Polymer, Iron and
Buying for your business?
Negotiated prices excl. VAT up to -20%
You may also like
Wiha Volt Detector voltage tester, non-contact, single-pole 90 – 1,000 V AC I phase tester with optical signal (43798)
Draper Digital Multimeter 92433 with Auto and Manual Ranging for Precise Electrical Measurements
Wiha voltage and continuity tester 12 - 1,000 V AC, CAT IV incl. 2x AAA batteries I with LED display I one-hand testing (45216)
Wiha Voltage and continuity tester 0.5 - 1,000 V AC, CAT IV incl. 2x AAA batteries I photovoltaic compatible I with LED display (45217)
Wiha Volt Detector voltage tester, non-contact, single-pole 12 – 1,000 V AC I phase tester with optical and acoustic signal (43797)
Wiha Voltage and continuity tester eMobility 12 – 1,000 V AC, CAT IV incl. 2x AAA batteries (44319)
Multifunctional wire tester, cable detector, MS6812 robotic lawnmower cable detector, LAN network cable line tester, robotic lawnmower wire break detector
Compare with similar items
Product information
Description
True internal sinusoidal resistance meter AC1kHz four-wire 0.00001Ω---range 200Ω. It can measure lead acid, lithium ion, lithium polymer, lithium iron, dry alkaline batteries, hydrogen, the button cell side panel. The ZRfu
Note: It is forbidden to input an AC signal and a DC voltage greater than 100V.
Special combination: host test line and probe, suitable for measuring different types of batteries, good versatility. Twisted wire pair to improve anti-interference.
Made of high-quality ABS material, robust, durable and long service life.
Professionally manufactured, stable characteristics and high reliability.
Specifications:
Item Type: Internal Battery Resistance Tester
Model: YR1035
Material: ABS
Color: Black
Measuring Range: 0V-100VDC, 0.01mΩ-200Ω
Charger: 5V
Test Lead Length: Approx. 75cm/29.53inch
Package List:
1x Internal Battery Resistance Tester
1x Probe Test Lead
4x Replacement Probe Needles
Note: It is forbidden to input an AC signal and a DC voltage greater than 100V.
Internal resistance measurement:
Accuracy format: ±([percentage accuracy] + [least significant figure])
Minimum resolution Range accuracy
20mΩ 0.01mΩ 0.7% + 7 (when the ZR function remains activated)
200mΩ 0.1mΩ 0.5% + 5
2Ω 1mΩ 0.5% + 5
20Ω 10mΩ 0.5% + 5
200Ω 0.1Ω 0.6% + 5
Within the range of 5% to 95% of the gear position, if it is not within this range (less than 5% of the gear range, or more than 95% of the gear range), the error may be greater than the accuracy above.
Voltage Measurement:
Range Resolution Accuracy±(%reading+%range)
1V 0.00001V 0.35+0.015
10V 0.0001V 0.30+0.010
100V 0.001V 0.30+0.015
Symmetric Errors Positive and Negative±(0.012%+5 words)
Temperature Drift within normal operating temperature limits (10°C-40°C) 100 ppm/°C
Features
- BrandSNQ
- Measured function(s)Resistance
- Height1 cm
- Length7.5 cm
- MaterialAcrylonitrile butadiene styrene (ABS)
- Display modeDigital
- Weight350 g
- Voltage1 V
- ManoMano ReferenceME96516836
- MMID549441518817
- Product codeFD-19728
- EAN6289547554274
