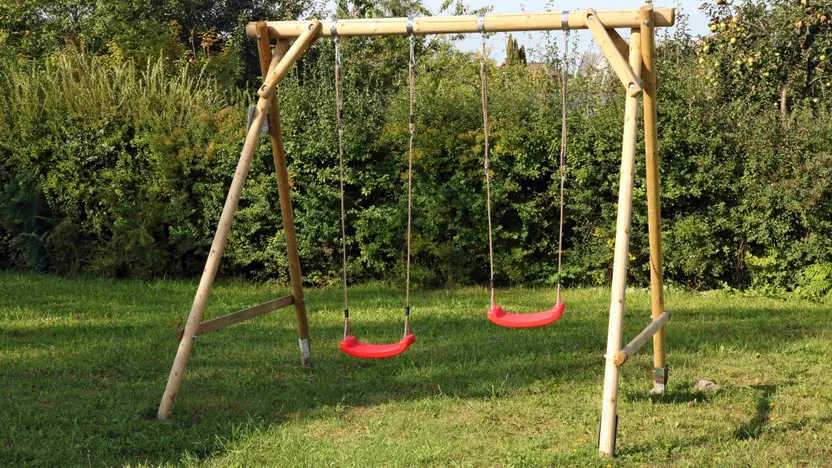

How to install a swing set

If you don't have a lot of room in the garden, swing sets can be a great way to keep your little ones entertained outdoors. Often simple structures that are easy to install, garden swing sets provide long hours of outdoor play.

The most important thing is to choose the right spot for your swing set, to assemble all parts correctly and, most importantly, to ensure toddler safety by making sure your structure is securely fixed to the ground.

Steps

1. Preparing parts and the ground

2. Assembling the structure

3. Securing the structure to the ground

4. Assembling play equipment

Preparing your equipment

• Before you start assembling your garden swing set, open all the boxes carefully and read through the instructions to make sure all parts are present.

• Next, prepare to assemble. Get yourself organised by sorting all the various parts into piles; for example, connecting sleeves and hardware to one side, and all structural parts to the other.

Preparing the ground

• First of all, select the flattest and most stable outdoor surface possible for your swing set.

• If your land slopes too much (more than 2%), you'll have to level the ground.

• The surface must be able to accommodate your swing set as well as around two metres of clearance space around the structure.

• Clear the area of all protruding, jagged or sharp objects (pieces of wood, stones, etc.).

Fitting the crossbeam and connecting sleeves

Before you head right into assembling the swing, be sure to read the instructions carefully.

Most swing sets are made up of a crossbeam and legs.

Start by placing the connecting sleeves on each end of the crossbeam. These sleeves link the crossbeam to the legs (there should therefore be three tubes in all).

You should then slot the legs into the angled part of the sleeve. Secure them in place then screw them together firmly.

Fitting your play apparatus

Next, put the hardware designed for fitting your apparatus (swing, swing seats, ropes, etc.) into place. Prepare the second set of legs. Fit the legs into the second sleeve and secure them using screws.

Fit the second set of legs onto the crossbeam with the help of a friend.

Tilt the mounted structure to check that the legs are lined up correctly and that the hardware for the apparatus is perfectly perpendicular to the ground.

If all parts are properly in place, slot and screw the second sleeve onto the crossbeam.

Horizontal support bars

Depending on the model, your swing set may also have horizontal support bars to fit. These bars are used to prevent the swing set from bending and to keep the frame secure.

Your swing set must remain stable during use. To ensure the safety of your toddler, it is imperative to fix it to the ground.

Place your structure into position.

Use a spirit level to check that the crossbeam and support bars are level. Take a tape measure and measure the distance between the legs on each side (the measurements must be absolutely identical).

Mark the ground in your garden with the position of the feet. Move the structure slightly to the side and fit the ground fixings:

• you can secure your structure using stakes. In this case, drive the stakes into each of the spots you’ve marked out to ensure the fixings are all level, then attach each of the legs to the stakes;

• alternatively, you can use ground anchors. Dig holes with a diameter of around 20 cm and 45 cm at each of the points you have marked out then pour in your concrete around the anchors. Adjust your anchors so they are all level before the concrete dries. Wait several hours (or overnight) to then fix the feet to the anchors.

Assembling your apparatus

Once your swing set is in place and absolutely stable, you just need to assemble your play equipment. There are single swing, double swing and triple swing models available depending on the size of your swing set.

If you have secured your swing set in concrete, you will need to wait several days to complete this step. Most play equipment – whether this be a swing, swing seat, a trapeze bar, climbing frame or a rope ladder – can be attached to the crossbeam using carabiner clips or quick links.

Testing your frame and equipment

Fit all play equipment into the right slots and adjust the height of all parts. Make sure everything is secure by testing the playset equipment, either by pulling on it or trying it out yourself – if the weight limit allows!

Required skills

You should be cautious and methodical when setting up a garden swing set. There’s nothing too complicated about mounting the structure itself, but you will have to follow the instructions to the letter when it comes to assembling all parts. You must know how to use a tape measure, spirit level, spanners and screwdrivers.

When it comes to securing the structure to the ground, you will also have to be able to dig and potentially prepare a few loads of concrete if necessary.

Time required

2 to 3 hours depending on model (not including time taken to lay concrete)

Number of people required

2 people

Tools and equipment

• A tape measure and pencil

• A spirit level

• A set of box spanners

• A set of open-ended spanners

• An impact driver or set of screwdrivers

• Pliers

• A wooden or rubber mallet

• A stepladder

• Instructions

• A cement mixer, shovel and pickaxe

Safety wear

• Safety shoes

• Protective gloves

• Gardening clothes
