Product information

Description

General description

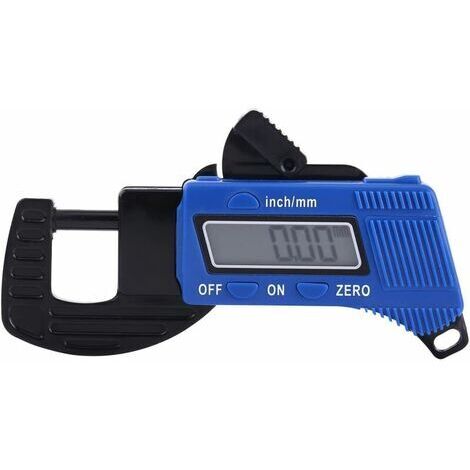

The 0-12mm Thickness Gauge is a high precision measurement tester designed for accurate thickness readings. Its body is constructed from high-quality engineering plastics, making it both lightweight and durable. The gauge features a large digital LCD display for easy data reading and supports various functionalities including a reset function, metric and imperial system switching, and manual power on/off with automatic power off capabilities. It is suitable for measuring materials that require special insulation and magnetic or anti-scratch protection, making it versatile for various applications.

Technical specifications

Measuring Range: 0-12.7mm / 0.5inch

Resolution: 0.01mm, 0.0005''

Accuracy: ±0.1mm, 0.005''

Operating Temperature: 0 ~ 40℃

Storage Temperature: -20 ~ 70℃

Relative Humidity: ≤80%

Power Supply: LR44/SR44 1.5V Button Battery (not included)

Usage

Press the on/off button to turn on the device.

Ensure the display reads 0.00; if not, reset by pressing the ZERO button.

Press the pressing bulge, place the item (e.g., coin) inside, and release the bulge.

Read the measurement result and repeat the measurement several times to calculate an average for improved accuracy.

Other information

Package Contents: 1 x Thickness Gauge

Features

Brand
GOTRAYS
Power source
Batteries
Material
Recycled cardboard
Measurement type
Electronic
ManoMano Reference
ME93911811
MMID
923988703508
Product code
GB-2028252
EAN
7424106114097
