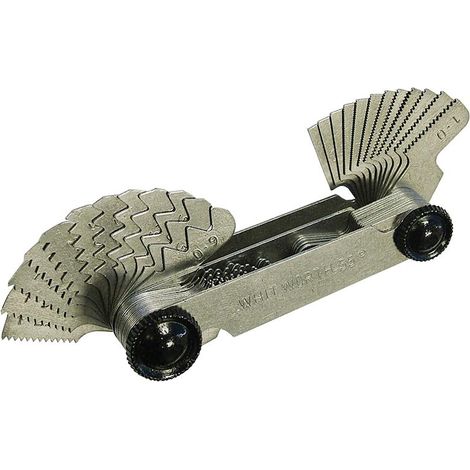

Faithfull Screw Pitch Gauge 52, Metric and Whitworth Thread Pitch Measurement Tool

#1 in sales

Buying for your business?

Negotiated prices excl. VAT up to -20%

Sold by GravaHaus and 4 other sellers

You may also like

210136 Tensioning Gauge Belt vidaXLVIDAXL

210136 Tensioning Gauge Belt vidaXL

96
Free shipping
Sealey Siegen Dual Marked Feeler Gauge 32 BladeSEALEY
3 options
#1 in sales

Sealey Siegen Dual Marked Feeler Gauge 32 Blade

1
Free shipping
Sealey Siegen Dual Marked Offset Feeler Gauge 26 Blade S0515SEALEY
3 options
#1 in sales

Sealey Siegen Dual Marked Offset Feeler Gauge 26 Blade S0515

1
Free shipping
Sealey Siegen Dual Marked Offset Feeler Gauge 12 Blade S0516SEALEY
3 options
#1 in sales

Sealey Siegen Dual Marked Offset Feeler Gauge 12 Blade S0516

1
Free shipping
Facom Feeler Gauge Metric Set 0.04mm to 1mmFACOM
2 options

Facom Feeler Gauge Metric Set 0.04mm to 1mm

42
Free shipping
Sealey 1-30mm 4pc Taper Bore Gauge AK75TPGSEALEY
2 options

Sealey 1-30mm 4pc Taper Bore Gauge AK75TPG

Free shipping

Compare with similar items

Product information

Description

Description

  • This screw pitch gauge combines 52 leaves for measuring both Whitworth standard 55-degree and Metric standard 60-degree threads, covering a range from 0.25 to 6.00mm. The leaves are clearly marked with size information for easy identification. Made from high-quality polished tool steel, it provides durability and precision. The gauge features locking devices at both ends to securely hold the leaves in place during measurement.

Technical Specifications

  • Number of leaves: 52
  • Range: 0.25 to 6.00mm
  • Thread standards: Whitworth 55°, Metric 60°
  • Material: Polished tool steel

Compatibility and Accessories

  • Suitable for measuring various Metric and Whitworth screw threads
  • No additional accessories required for basic use

Installation

  • No installation required. Simply select the appropriate leaves and lock them in place for measurement.

Usage

  • Open the gauge and select the leaves that match the thread pitch to be measured.
  • Place the leaves against the screw thread to determine the pitch.
  • Use the locking device to secure the leaves during measurement for accuracy.

Features

  • Brand
    FAITHFULL
  • Height
    149 mm
  • Material
    Steel
  • Weight
    84 g
  • Measurement type
    Mechanical
  • ManoMano Reference
    ME1383485
  • MMID
    156047556568
  • Product code
    FAIPITCHMW
  • EAN
    5023969297057

Customer reviews

MManoMano Customer
Published on 29/09/2021, United Kingdom

Faithful brand products are always good. Mano Mano always a fair price. Tool did exactly what I wanted it to do.
