12 Pcs RO Water Filter Accessories 1/4 Inch Nozzle Fitting 90 Degree Right Angle Fast Docking for Connecting Water Pipe Fittings, Refrigerator Pipe

Thank you for choosing 1/4'' water purifier accessories!

More information about 1/4'' water purifier accessories!

• This kit is suitable for use in hot (140°F max.) and cold (33°F min.) water applications.
• Hand operated, it replaces threaded or flanged connections, which require wrenches.
• It is used to branch off to different sockets for your RO unit.
• This kit s fits standard 1/4" OD copper, CPVC, PEX and PVC tubing for most RO systems.
• The water valve adopts push-fit technology, which allows you to quickly disconnect connection without using tools.Simple operation, quick installation and time saving.Very convenient and efficient.
• 100% safe food grade material, 100% leak free, 100% reusable.

Product Features

Fits 1/4" OD tubing on most RO systems. (Hose and "C" clips are not included in this product kit.)

The water purifier faucet is made of food grade materials that are safe, leak-free and reusable. There is no need to worry about foreign bodies and impurities in the faucet seals mixing with drinking water and endangering your health.

Quick connector includes: main body, inner claw, O-ring, buckle, etc.

Main body: angled connector.

Inner claw: used to fix the water pipe. As the inner claw lifts, the claw blade shrinks and cuts the wall of the water pipe. The water pipe is fixed. Release the sub-blade under the inner claw to remove the water pipe.

Sealing Ring: Used to seal the water pipe with the joint main body to prevent water leakage.

Note: The end inserted into the joint of the water pipe should not have a sharp point to avoid damaging the sealing ring.

Blue Buckle: Used to hold the inner claw in the bouncing state to prevent the water pipe from rushing due to excessive water pressure.

This product has high compatibility and is suitable for most standard copper, CPVC, PEX and PVC pipe in the 1/4" OD RO system. At the same time, it has a wide range of uses. , acting on reverse osmosis machines, water purifiers, direct drinking machines, water dispenser, water dispenser, etc.

Installation method

The PE pipe must be carefully cut with a pipe cutter to ensure that the cut is flat;

Unplug the blue board;

Insert the PE pipe into the connector ( about 15-18mm);

Insert the blue card to fix. Installation is complete.

Disassembly method

Unplug the blue card; < /p>

press and hold tower buckle;

Pull out the PE tube at the same time Disassembly completed

Precautions

Material: materials of food grade

Color: White + blue

Outer diameter: 6.35 mm

Maximum water pressure tolerance: 20 bar / 40 kg </ p>

Package Content:

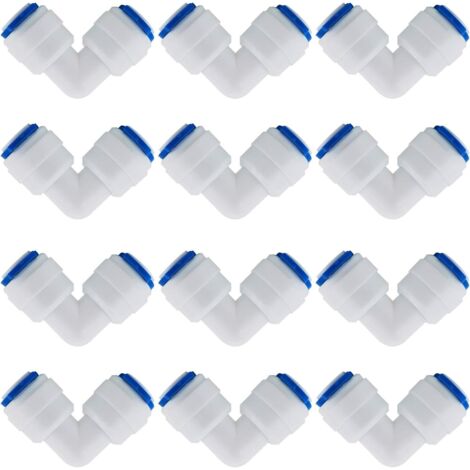

12 x Union Elbow 1/4" OD

The above are all manual measurement, there are errors (1-5mm )
