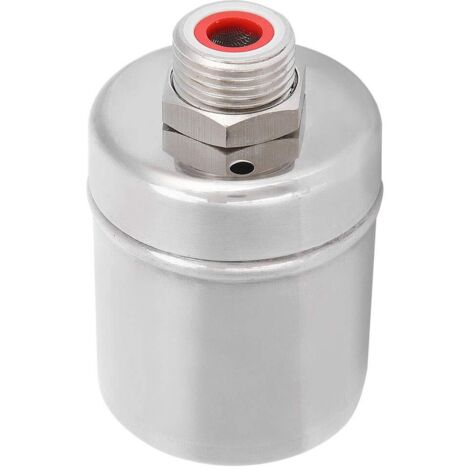

1/2in Float Ball Valve Tank Automatic Water Level Control Stainless Steel Floating Ball Valve

【Automatic Control】The float valve controls the flow rate and the opening and closing of the inlet pipe by the floating of the ball. When the water level rises to a certain level, the water injection will be cut off; when the water level drops to a certain limit, water is automatically injected

【G1/2in】 G1/2" external thread inlet, suitable for most types of water pipes, easy to install and adjust, and has a beautiful appearance, with small size, practicality and simple installation

【Three-hole valve】 This float valve replaces the traditional float ball and can be used in high water tanks, swimming pools, industrial water towers and other systems

【Stainless steel valve】 The float valve controls the flow rate and the opening and closing of the inlet pipe through the floating of the ball, with automatic control, low self-replenishment and automatic water shut-off function

【Specifications】 Thread size: G1/2in - Maximum installation inclination: 30 degrees - Working pressure range: ≤1.0MPa - Residential tap water pressure: 0.3-0.5Mpa - The use of siphon pipes for water supply must ensure that the water level drop is greater than 80cm/31.5in, otherwise it will affect the water outlet

Stainless steel body

The stainless steel material ensures a delicate and beautiful appearance while being more robust and durable

Large displacement

The floating ball valve is small and does not take up space, and can effectively increase the water flow, which is more than the traditional floating ball valve.

Friction and impact resistance

The hard shell effectively increases the service life of the float valve

Solid floating core

The floating core design Increases the control of the water level sensor for the regulating valve, making water replenishment more sensitive.

Instructions for Use

1. Applicable water pressure range: 1.2-10 kg (please use it under reasonable circumstances).

2. The product must be installed vertically on a horizontal plane, and the float valve must be facing downward during installation.

3. Please fix the water pipe on the horizontal surface first, and then install the product on the water inlet pipe.

4. When using, the shut-off valve of this product must be fully open.

5. If two float valves are installed in a pool, they must be kept at the same level.

6. Please clean the impurities in the pipe during installation to prevent the impurities from blocking the ball valve.

7. When the product is installed indoors, there will be water drops at the bottom of the ball valve, which is a normal phenomenon.
