Product information

Description

General description

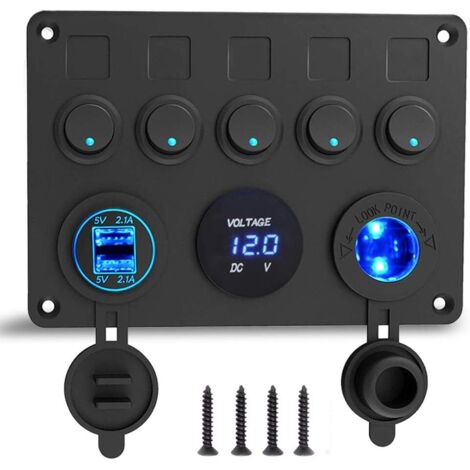

The 12V Marine Switch Panel is a versatile and durable solution for circuit control, charging needs, and voltage monitoring. It features a dual USB charger, a cigarette lighter socket, and a digital voltmeter, making it ideal for various vehicles including cars, boats, trucks, and RVs.

Technical specifications

Panel Size: 150mm x 105mm (5.9in x 4.1in)

Hole Distance: 135mm x 90mm (5.3in x 3.5in)

Working Voltage: DC 12V - 24V

USB Socket Output (each): DC 5V 2.1A

Power Socket: DC 12V

Voltmeter Display Range: 0~24V

Overload Protection: 12V~24V, 15A DC

Operating Temperature: -25℃ to 85℃

Mechanical Life: 10,000 - 20,000 cycles

Waterproof Grade: IP66

Installation

The panel comes with pre-wired mounting screws and a set of labels for easy installation. The included multi-function stickers allow for customization according to specific needs.

Usage

Dual USB ports can charge two devices simultaneously, such as phones, power banks, and cameras.

The cigarette lighter socket can power devices like dash cams, GPS units, vehicle-mounted refrigerators, air pumps, and air purifiers.

LED rocker switches provide overload protection, overcurrent protection, and short circuit protection to prevent accidents caused by battery failure.

Other information

Material: Aluminum plate, ABS, PC, PBT

Package Includes: 1 x Multi-function Panel, 1 x Labels, 4 x Screws

Features

Brand
TINOR
Fuse/Integrated protection
Yes
IP rating
IP66
Material
Aluminium
Voltage
12 V
Connection port type
USB
ManoMano Reference
ME94201995
MMID
816102291156
Product code
TiR-UK-10093
EAN
8420468985459

12V Marine Switch Panel, 4.2A USB Charger Port + Cigarette Lighter Socket + Voltmeter Display, IP65 Waterproof Rocker Switches for Auto Boat Car Vehicles Circuit Control
