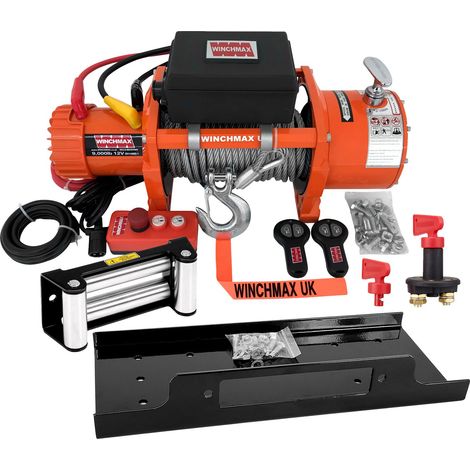

9,000lb (4,082kg) 12v Winch EN14492 Compliant. 24m x 9mm Wire Rope. Mounting Plate & Battery Isolator.

Name: 9,000lb (4,082kg) 12v Winch EN14492 Compliant. 24m x 9mm Wire Rope. Mounting Plate & Battery Isolator.
Brand: WINCHMAX
SKU: WM9000ENWR12V,WMMP3,WMBATISOTYP1
Price: 559.95 GBP
Availability: InStock

Sold by Winchmax Ltd

Product information

Description

General description

The 9,000lb (4,082kg) 12v Winch is designed for professional use on recovery trucks and trailers up to 3.5T. Although electronically limited to 9,000lb, it is built on a robust 15,000lb winch frame, making it stronger than standard models. This fully EN14492 compliant winch is equipped with advanced features for efficient and safe operation.

Technical specifications

Single Line Rated Pull: 9,000lb (4,082kg)

Motor: 12v 6.8hp/5.1kw series wound

Control: Remote switch with 12ft (4.5m) lead

Gear Train: 3 stage planetary

Gear Reduction Ratio: 358:1

Clutch: Sliding ring gear

Braking Action: Automatic in the drum

Drum Size: Diameter 90mm (3.5"), Length 224mm (8.82")

Drum Finish: Black, painted

Cable: 24m x 9mm multi-strand steel wire rope

Hook: Clevis hook 3/8 inch, zinc-plated

Fairlead: 4-way roller fairlead

Weight (Gross): 52kg (114lb)

Overall Dimensions: 560.5 x 195 x 232mm

Mounting Bolt Pattern: 254 x 114.3mm + 254mm x 176mm (8 fixings)

No Load Line Speed: 7.28m/min (23.9 ft/min)

Compatibility and accessories

WINCHMAX Heavy-Duty Battery Isolator Switch (300A rating)

2 x twist and release keys

High tensile fixing bolt kit

Suitable for all WINCHMAX winches

Installation

Mounting Plate drilled for standard 254mm x 114.3mm (10" x 4.5") bolt pattern

Pre-drilled for winch and roller fairlead

Usage

Ideal for recovery operations on trucks and trailers

Built-in electronic load limiter for safety

Power in/out handheld control unit with a large emergency stop button

Sliding ring gear freewheel clutch for easy operation

Other information

Manufactured in the UK

CE certified & built to ISO9001 quality management system requirements

Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical

WINCHMAX branded cover to protect from water and road grime

Safety catch and hand saver included

Zinc plated for corrosion resistance

Tough four roller fairlead with zinc-plated rollers

Features

Brand
WINCHMAX
Origin
Made in the United Kingdom
Colour
Orange
Maximum load
4.082 kg
Remote operation
Yes
Cable diameter
9 mm
Supplied with hauling pulley
Yes
IP rating
IP68
Width
19.5 cm
Work cable length
24 m
Material
Steel
Operating Mode
Electric
Weight
52 kg
Presence of brake
Yes
Power
5100 W
Power supply
Electric
Voltage
12 V
Winch operating type
Straight Line Pull
Sold with cable
Yes
ManoMano Reference
ME41603276
MMID
774332441723
Product code
WM9000ENWR12V,WMMP3,WMBATISOTYP1
EAN
5060854570376
