2 Ton, Plain Trolley - Push / Beam / Girder / RSJ / Travel

Product out of stock

Product information

Description

General description

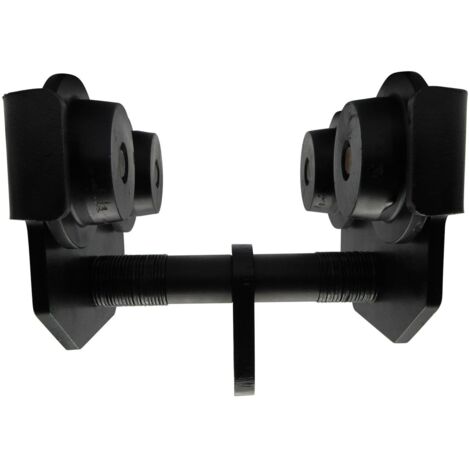

Push trolleys are designed for attachment to steel beams, serving as a lifting point for chain blocks, hoists, and lifting tackle. These trolleys can be easily moved backwards and forwards along the beam, providing flexibility in lifting operations. The design includes adjustable washers for optimal fit on the beam, either on the outside or inside of the plates. This trolley features ball bearings in the wheels for smooth operation and is supplied with a test certificate for quality assurance.

Technical specifications

Safe Working Load (S.W.L): 2 Ton (2000 KGS)

Overall Length of Trolley: 280 MM

Overall Width of Trolley: 254 MM

Overall Height of Trolley: 283 MM

Recommended Beam Size: 80-168 MM

Suits I Beam Thickness up to: 27 MM

Conforms to: BS EN 13157: 2004 + A1: 2009

Features

Brand
SECUREFIX DIRECT
NF certification
NF254
Warranty
1 year(s)
Maximum load
2000 kg
Height
28.3 cm

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
