1T Plain Trolley - 1000KG Ton Push Beam Girder RSJ Travel

Product out of stock

Product information

Description

General description

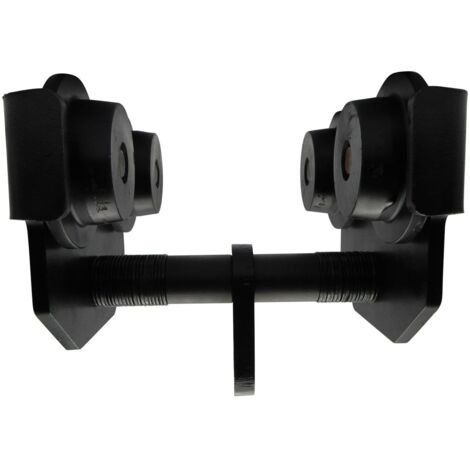

1T Plain Trolley is designed for safe and efficient lifting operations. It has a Safe Working Load (S.W.L) of 1 Ton (1000KG) and is suitable for attachment to steel beams, acting as a lifting point for chain blocks, hoists, and other lifting tackle. The trolley can be easily moved backwards and forwards on the beam, providing flexibility in lifting tasks.

Technical specifications

Safe Working Load (S.W.L): 1 Ton (1000KG)

Overall Length: 286MM

Overall Width: 220MM

Overall Height: 237MM

Recommended Beam Size: 80-146MM

Suits I Beam Thickness up to: 22MM

Other information

Conforms to: BS EN 13157: 2004 + A1: 2009

Supplied with Test Certificate

This trolley features ball bearings in the wheels for smooth operation

Features

Brand
SECUREFIX DIRECT
NF certification
NF220
Warranty
1 year(s)
Maximum load
1000 kg
Height
23.7 cm

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
