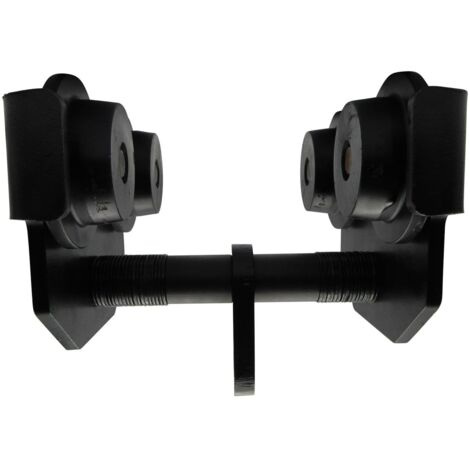

3 Ton, Plain Trolley - Push / Beam / Girder / RSJ / Travel

Name: 3 Ton, Plain Trolley - Push / Beam / Girder / RSJ / Travel
Brand: SECUREFIX DIRECT
SKU: SFPT3
Price: 120 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Push Trolleys are designed for attachment to steel beams, serving as a lifting point for chain blocks, hoists, and lifting tackle. These trolleys can be easily moved backwards and forwards along the beam, providing flexibility in lifting operations. The design includes adjustable washers for optimal fit on the beam, which can be positioned either on the outside or inside of the plates. This trolley features ball bearings in the wheels for smooth operation and is supplied with a test certificate.

Technical specifications

Safe Working Load (S.W.L): 3 Ton (3000 KGS)

Overall Length of Trolley: 320 MM

Overall Width of Trolley: 310 MM

Overall Height of Trolley: 290 MM

Recommended Beam Size: 88-168 MM

Suits I Beam Thickness up to: 27 MM

Other information

Conforms to: BS EN 13157: 2004 + A1: 2009

Product Code: SFPT3

Features

Brand
SECUREFIX DIRECT
Maximum load
3000 kg
Height
29 cm
Material
Two-material
power supply
Manual
ManoMano Reference
ME27140505
MMID
754899092118
Product code
SFPT3
EAN
0600988522886

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
