20" Stroke Linear Actuator DC12V Electric Motor 900N Recliner Sturdy Silent

20" Linear Actuator
12V linear actuator is used to get the purpose that moving things in a straight line(up and down, or side to side). Our 20" product is a powerful and reliable actuator with 900 N power. It has built-in limit switches and designed with IP54 water protection. It is suitable for a massage sofa, recliner, TV lifter, lifting table, electric window opener, etc. Quite a practical device for electric appliances.

• Excellent Material
• retract & Extend Function
• Powerful Motor & Quiet
• Quick & Easy Assembly

Features & Details

• 【EXCELLENT MATERIAL】- Stroke Length: 20"; Travel Speed: 10 mm/s; Power: DC 12V; Working Temperature: -20 ℃ to 65 ℃; This linear actuator adopts solid aluminum alloy case, which is sturdy, well-sealed, and designed with IP 54 protection class. Notice: We recommend using our product with a power supply with DC 12V output voltage and 8-9A output current.
• 【RETRACT & EXTEND FUNCTION】- This electric linear actuator can powerfully lift or down(retract or extend) recliner, industrial equipment, etc. Retracted length 24.7" and extended length 44.7". Stop at any place you want. Metal gears make movement more smooth.
• 【POWERFUL MOTOR & QUIET】- It is equipped with a strong 900 N motor. When the electrical actuator works, it is not noisy with ≤50dB sound. Reliable performance and stable running. It also has two limit switches on each side to protect the motor.
• 【QUICK & EASY ASSEMBLY】- Quick to assembly this 12-volt linear actuator to electric devices, We also offer you two brackets and screws to add more flexibility.
• 【DIVERSE USE SCENARIOS】- Linear actuator is widely used in home furniture, hospital & healthcare fields, such as open doors, lift tables, raise flat screens, adjust recliners for the headset, footrests, relaxation beds.

Specifications

• Stroke Length: 508 mm/20"
• Rated Load: 900 N
• Travel Speed: 10 mm/s
• Material: Aluminum Alloy
• Input Voltage: DC 12 V
• Rated Current: 5 Amp
• Duty Circle: 25%

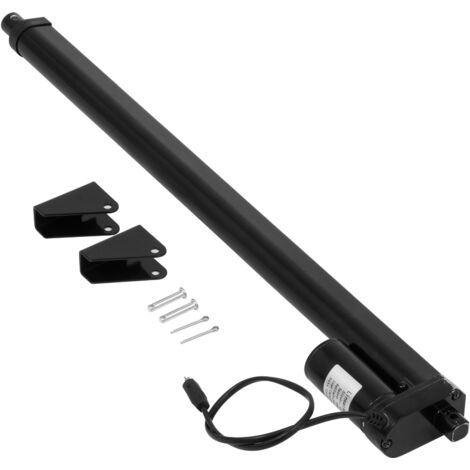

Package Content

• 1 x Linear Actuator
• 2 x Mounting Brackets
• 1 x Screw Set

Aluminum Alloy Case

This product adopts the excellent aluminum alloy case, which is thick, sturdy, and powder-coated on the surface for anti-rust.

Retract & Extend Function

This actuator supports both the retraction and extension movement of the electric device. 20" stroke length, 24.7" retracted length, and 44.7" extended length.

12V Power Supply

To protect the motor and main electronic device, this actuator should be connected to DC 12V power supply.

Powerful & Quiet Motor

We deploy a powerful 900 N motor for lifting or down. It travels at 10 mm/s speed, while silent on working.

Install with Brackets

Installation is not complicated and you can finish the job quickly. We also offer two brackets and several screws for more flexible assembly.

Wide Application Places

This product can be widely used for the following fields, like home furniture, hospital, health care, industry, etc.
