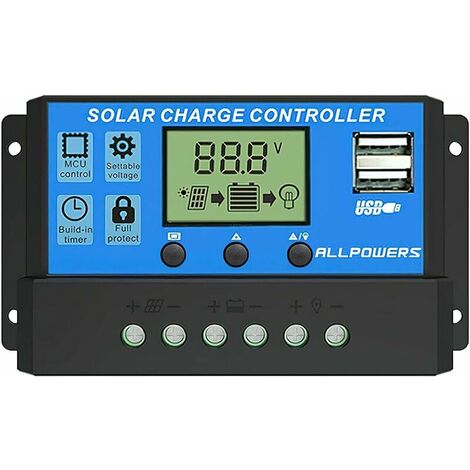

20A Solar Charger Controller Intelligent Solar Panel Regulator with USB Port Display 12V/24V——

~~£17.13~~

Of which environmental contribution £0.01 including VAT.

Sold by Permu UK

Product information

Description

General description

The 20A Solar Charger Controller is an intelligent solar panel regulator designed for efficient energy management. It features a dual USB output and a clear display for monitoring status and data. This controller is suitable for various applications, including home, industrial, and commercial use.

Technical specifications

Rated discharge current: 20A

Battery voltage: 12V/24V auto

USB output voltage: 5V/3A

Self-consumption: 10mA

Operating temperature: -35°C to +60°C

Dimensions: 150 x 78 x 35 mm

Rated charging current: 20A

Overload protection: 14.4V/28.8V

Floating charge overload: 13.7V/27.4V

Charge recovery voltage: 12.6V/25.2V

Over-charge protection: 10.7V/21.4V

Over-discharge recovery: 12.6V/25.2V

Installation

Connect the battery

Connect the solar panels

Connect the DC charging

Usage

Monitor the LCD display for status and data

Switch modes and configure parameters as needed

Ensure battery voltage reaches 11V for initial use

Other information

Wire range: 26-12 AWG

Note: The controller will stop output if battery voltage drops below 8V

Keep the controller in a cool and well-ventilated place for optimal heat dissipation

Features

Brand
BRIDAY
IP rating
IP67
Amperage
20 A
Material
Plastic
Voltage
12 V
Type of solar charge controller
PWM
ManoMano Reference
ME61976634
MMID
412769805428
Product code
BAY-34492
EAN
6286528579219
