1/5

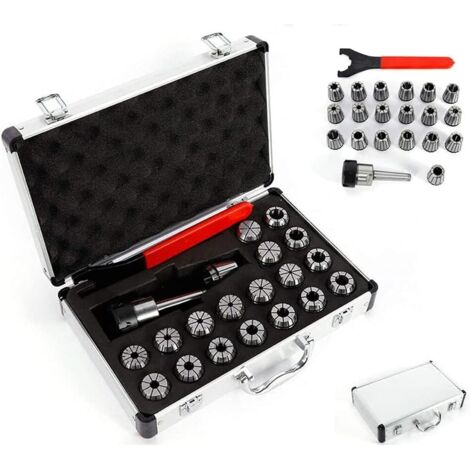

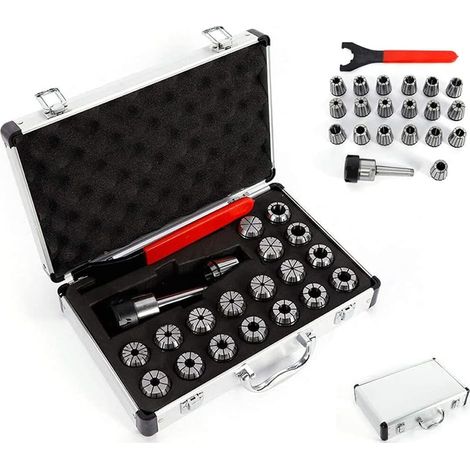

21pcs ER32 Spring Collet Set Spring Steel Chuck Tool MT2 Shank Wrench Spanner with Box for CNC Workholding Engraving Millling Machine Lathe Tool (MT2 ER32 M10)

~~£99.99~~

£2Offered

To be applied on the payment page

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by DENCRESTUK

Product information

Description

General description

Our 21pcs ER32 Spring Collet Set is expertly crafted from high-quality 45# steel and 40Cr material, ensuring excellent wear resistance and a long service life. This high-precision tool is designed to meet demanding requirements, making it ideal for various high-precision tasks. The set comes with a portable carrying box for easy transport and storage, providing convenience whether you're working outdoors or in a workshop.

Technical specifications

Material: 45# Steel, 40Cr, Aluminum-plastic

Color: Black, Silver

Process: Heat Treatment, Fine Grinding

Collet Type: ER32

Number of Pieces: 19

Collet Specifications: 2-20mm / 0.08-0.78 inches

Precision: 0.015mm

Each Spring Collet Size: 33*40mm / 1.3*1.57 inches

Chuck Diameter: 12mm / 0.47 inches, 27mm / 1.06 inches

Overall Chuck Size: 121*50mm / 4.76*1.97 inches

Spanner Size: 250*72mm / 9.84*2.83 inches

Spanner Clamp Length: 44mm / 1.73 inches

Carrying Box Size: 34.5*27.5*9cm / 13.6*10.8*3.5 inches

Package Size: 37*28.5*11cm / 14.57*11.22*4.33 inches

Gross Weight: 4.55kg / 10.03 lbs

Net Weight: 4.32kg / 9.52 lbs

Compatibility and accessories

Compatible with machine tools featuring an MT2 tail hole as the tailstock

Includes 19 Spring Collets, 1 Spanner, 1 Chuck, and 1 Carrying Box

Installation

Assembly Required: Yes

Usage

Suitable for milling, boring, drilling, wiretapping, and other operations

Other information

Note: Please check the size carefully before ordering.

Do not use tools that exceed the clamping range.

Avoid locking the collet without the tool installed to prevent damage.

If abnormal vibrations or sounds occur, reduce spindle speed and depth of cut.

Allow for slight color differences due to lighting and a 1-3 cm error due to manual measurement.

Features

Brand
CNCEST
Warranty
1 year(s)
Spindle thread
M10
Material
Steel
Metal lathe accessory type
Tool racks
ManoMano Reference
ME94435670
MMID
689780057011
Product code
20211012316
EAN
756383486992
