4 Jaw Self-Centering Lathe Chuck 80 mm Steel K12 80 vidaXL

Name: 4 Jaw Self-Centering Lathe Chuck 80 mm Steel K12 80 vidaXL
Brand: VIDAXL
SKU: 8720286025215
Price: 82.99 GBP
Availability: InStock
Rating: 4.29 (17 reviews)

~~£86.99~~

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by vidaXL

Often purchased together

Product information

Description

General description

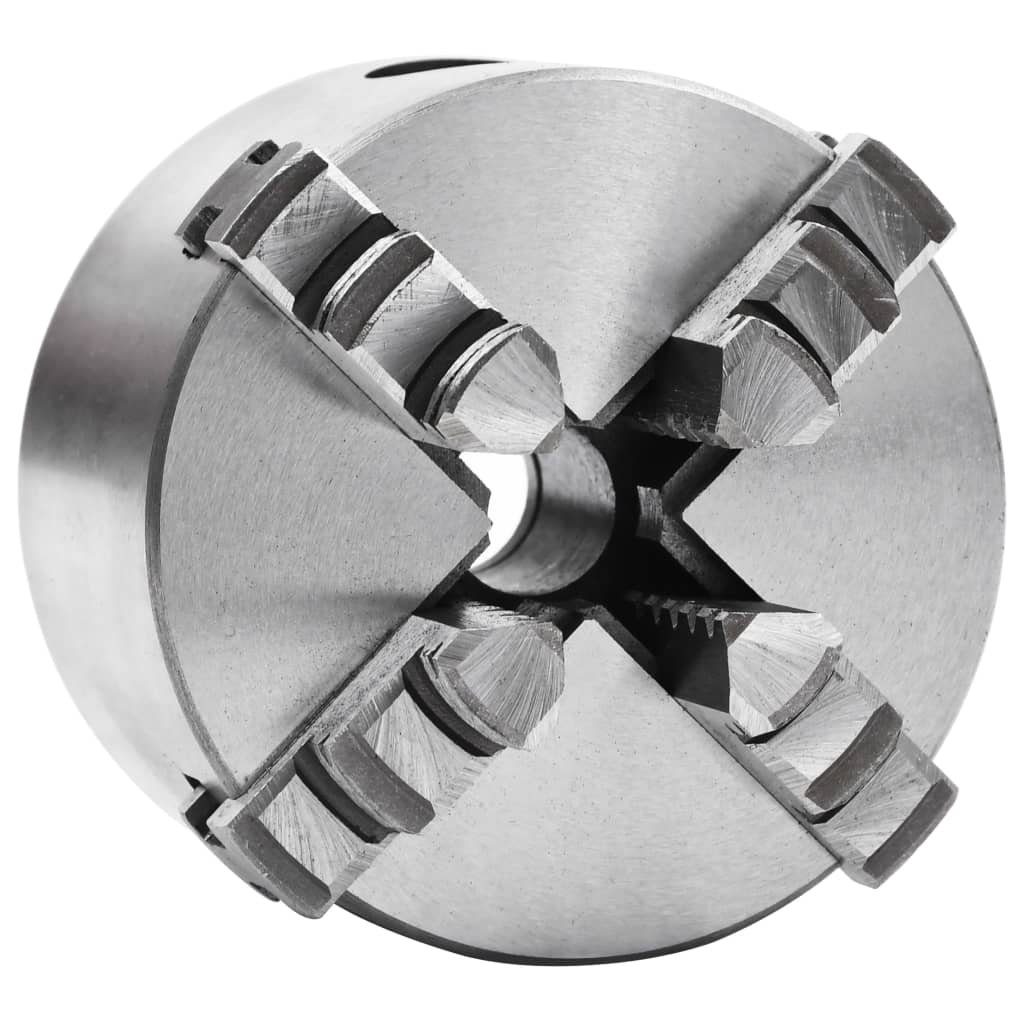

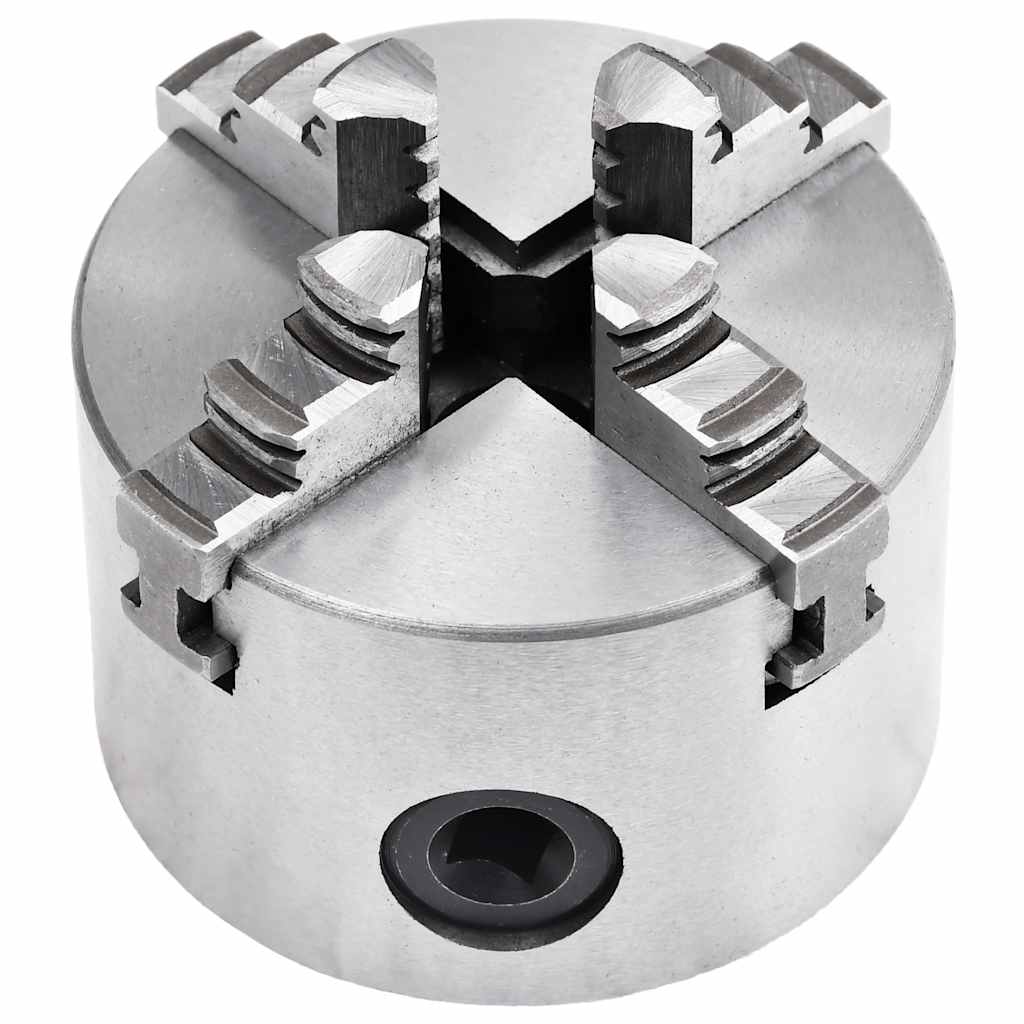

This self-centering 4 jaw lathe chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also provides high clamping accuracy on various surfaces, such as fixed solid or hollow circle materials, triangular materials, or hexagonal materials. Made of high-quality steel, it offers high hardness and wear resistance, ensuring strength and durability. This chuck features a 4 jaw design, is self-centering, compact, and easy to use.

Technical specifications

Colour: Silver and black
Material: HT300 steel
Outside diameter: 80 mm
Number of jaws: 4
Passage: 16 mm
Cylindrical inner passage: 55 mm
Clamping range (internal jaw): 2 - 22 mm
Clamping range (external jaw): 22 - 63 mm
Total height: 50 mm
Maximum speed: 4000 R/min

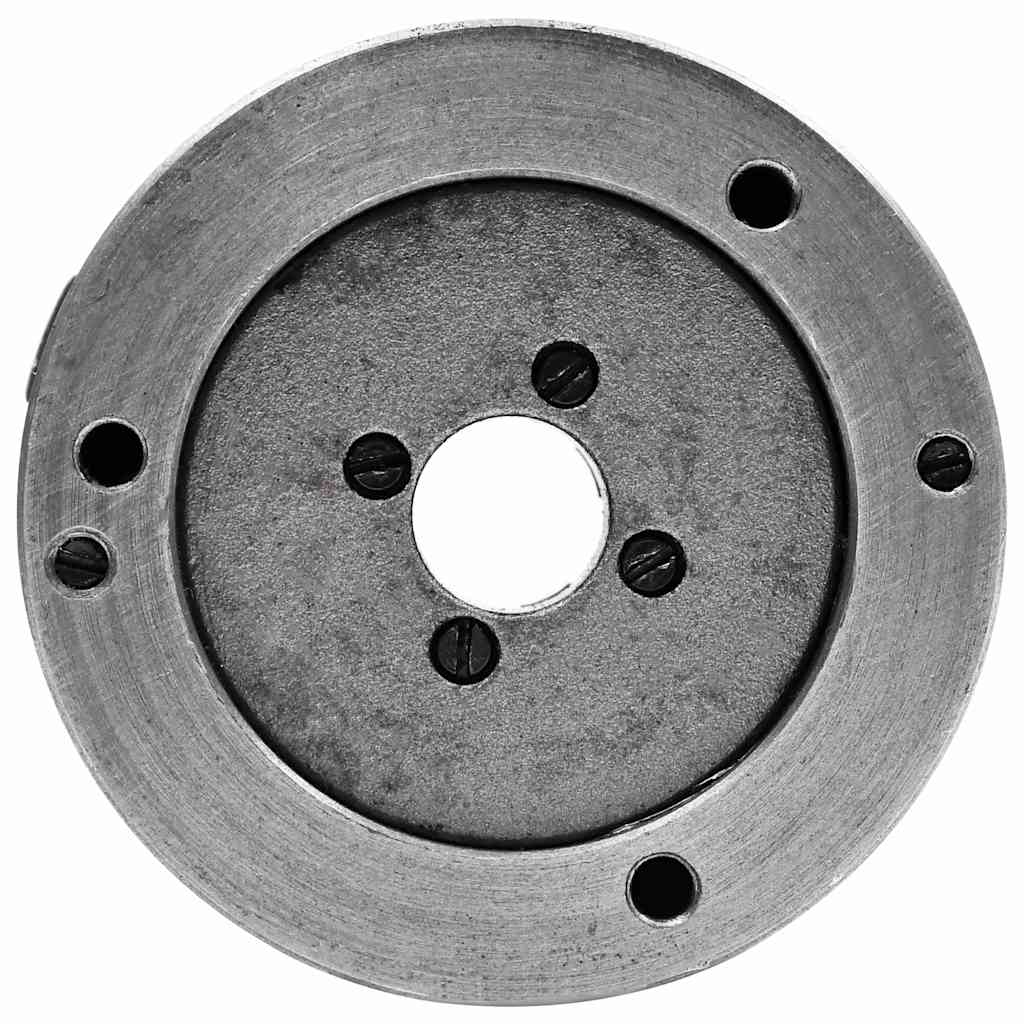

3 x M6 holes
Run out: 0.08
Net weight: 1.8 kg

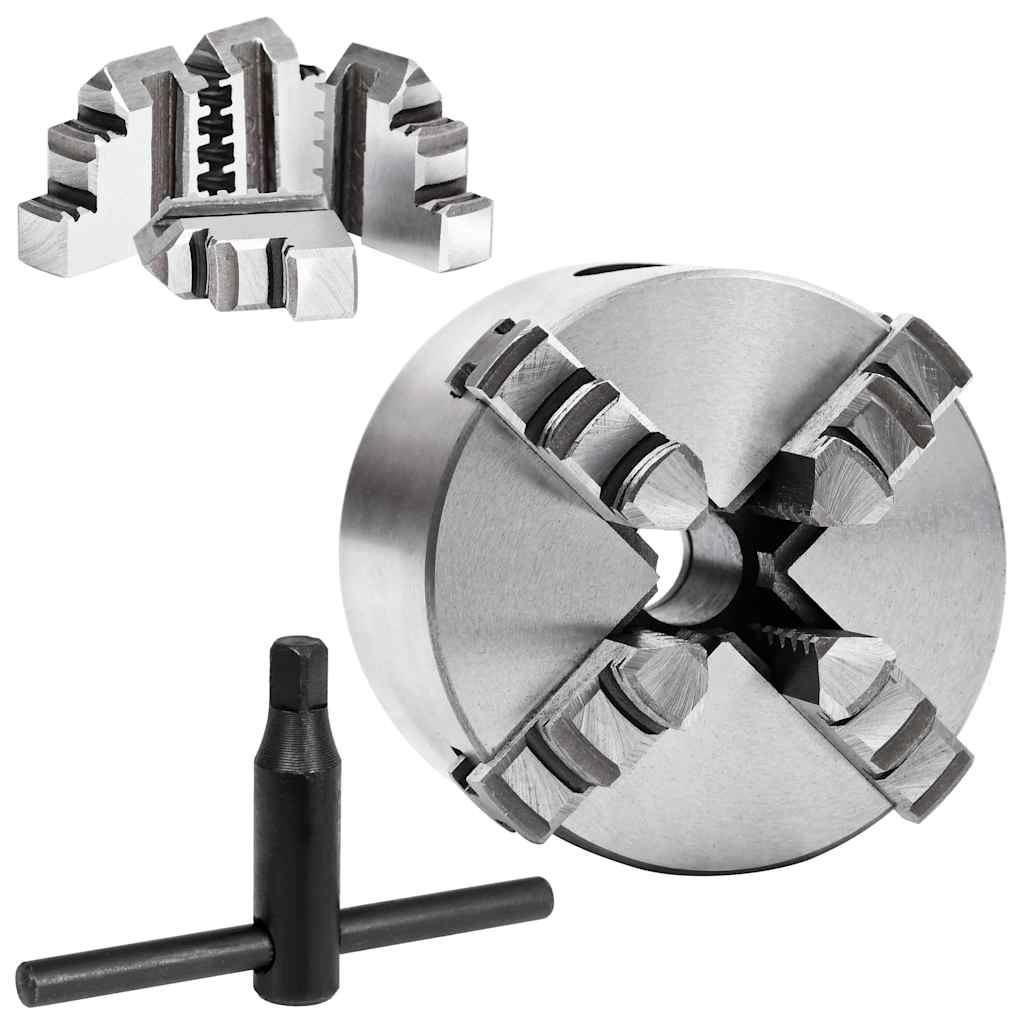

Delivery contains:
1 x Lathe chuck

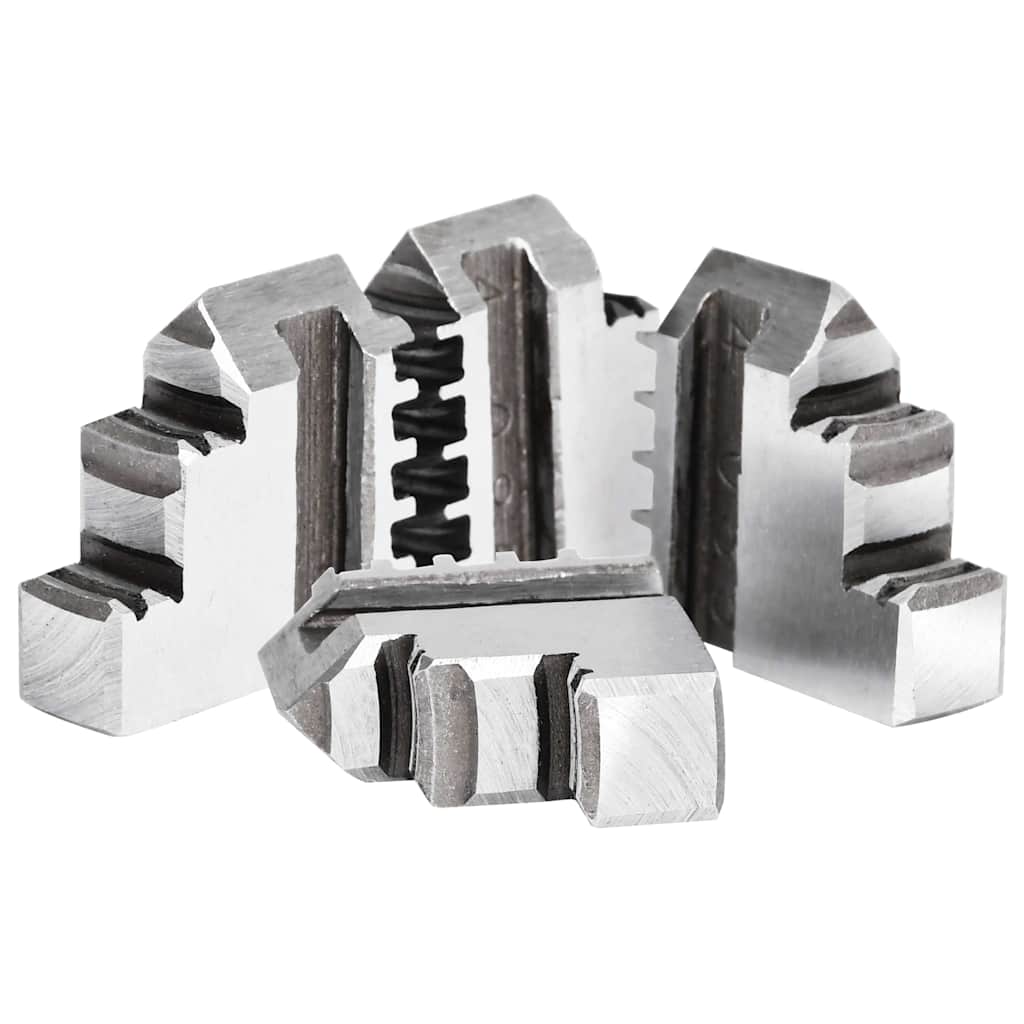

4 x Jaws
1 x Chuck key
EAN: 8720286025215
SKU: 146708
Brand: vidaXL

Other information

SKU: 146708

Features

Brand
VIDAXL
Warranty
2 year(s)
Origin
Made in China
Diameter
80 mm
Height
50 mm
Length
80 mm
Material
Steel
Number of positions
4
Weight
1800 g
ManoMano Reference
ME26269990
MMID
741140784167
Product code
8720286025215
EAN
8720286025215

Customer reviews

4,3

/ 17 Reviews

Reviews verified by ManoMano

JJoël

Published on 25/01/2023, France

Bjr, pleasantly surprised by the real conformity to the description. This product after mounting on my mini lathe corresponds perfectly to my expectations: precision and complete accessories. Thanks Joel Rt

LLionel

Published on 29/09/2022, France

I use it on a small 370 watt motor which serves as a welding and grinding rotator, it does the job nothing to complain about

Cchantal

Published on 12/02/2025, France

Perfect product, well packaged and delivered on time, thank you

PPhilippe

Published on 23/04/2025, France

Good product for my use

Hherve

Published on 10/12/2025, France

Perfect. Exactly as described.

MManoMano Customer

Published on 01/07/2021, France

Very good value for money

1 person found this helpful
