Description

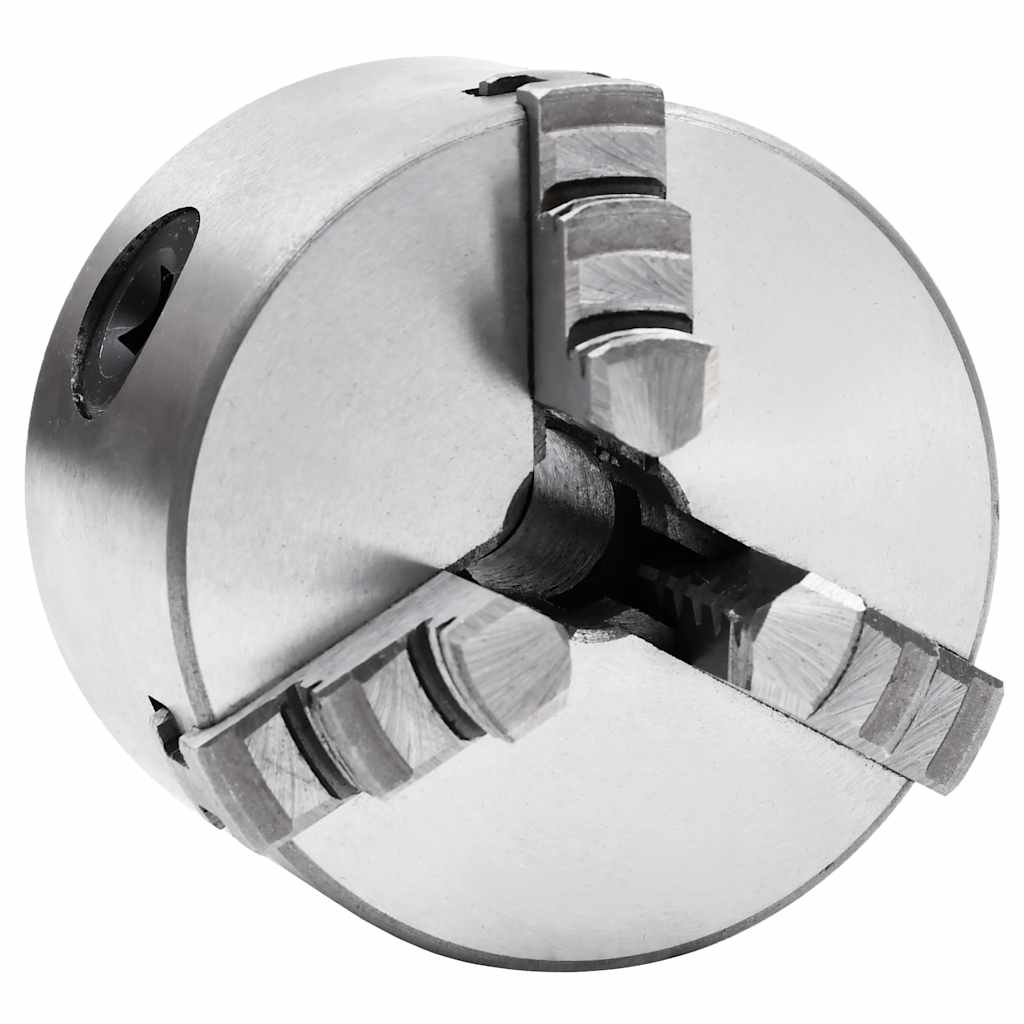

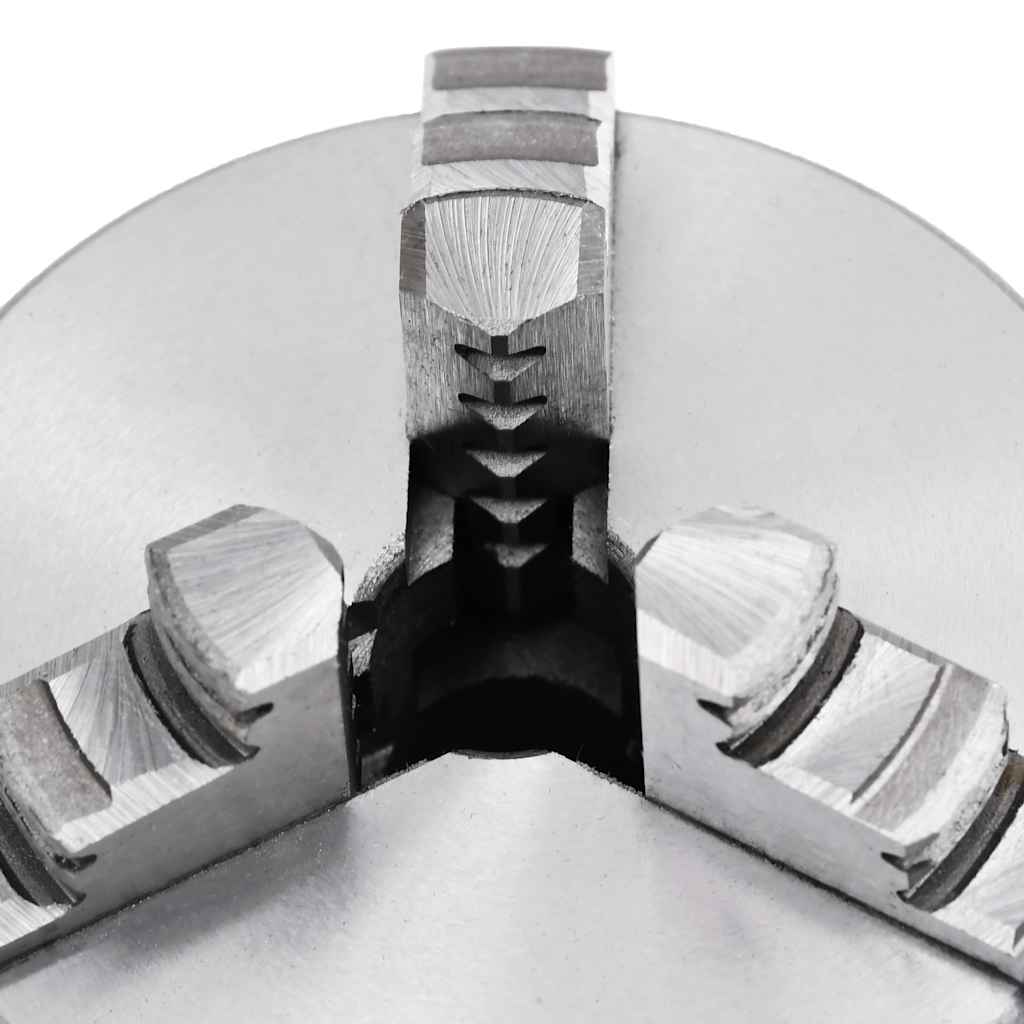

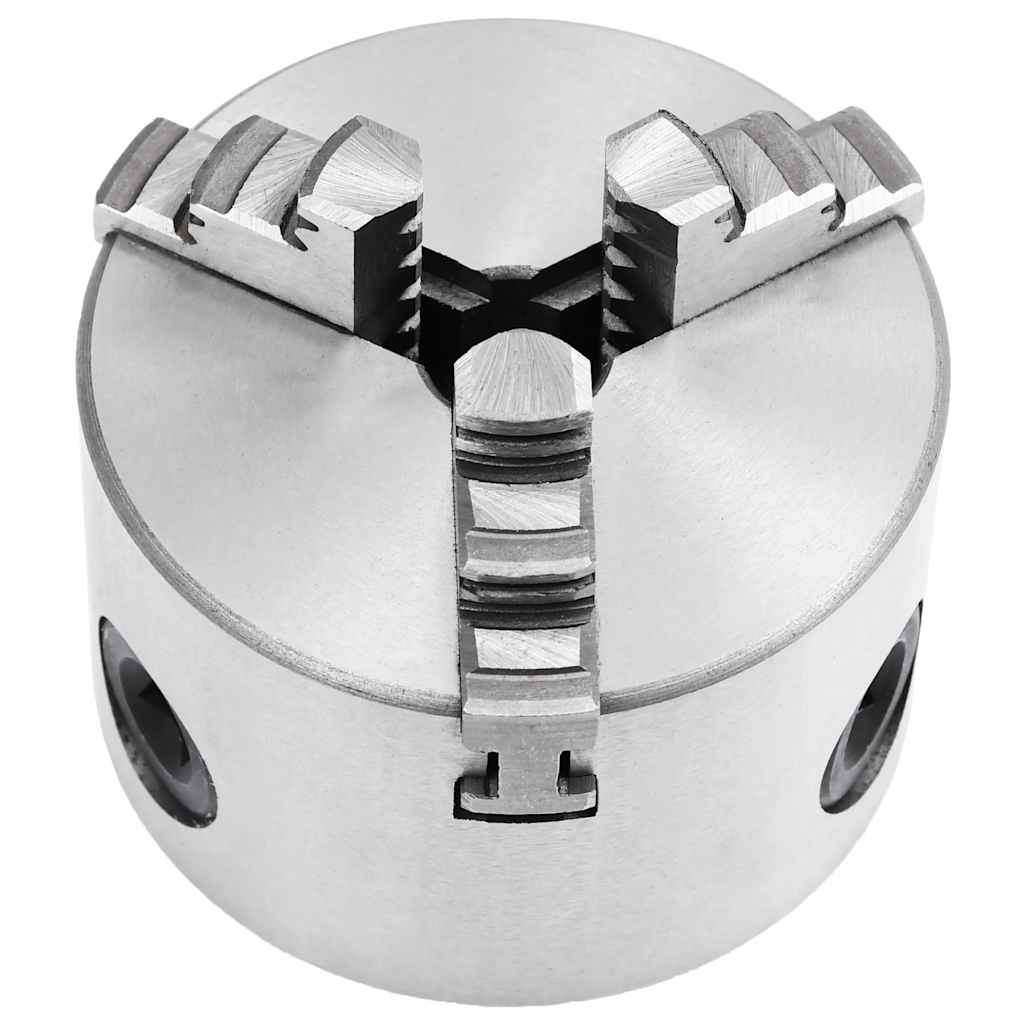

This self-centring 3 jaw lathe chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also proves high clamping accuracy on a wide range of surfaces, such as a fixed solid or hollow circle material, a triangular material or a hexagonal material.
It is made of high-quality steel with high hardness and wear-resistance, making it strong and durable. This chuck is with 3 jaw design, self-centring, compact size and easy to use.
- Colour: Silver and black
- Material: HT300 steel

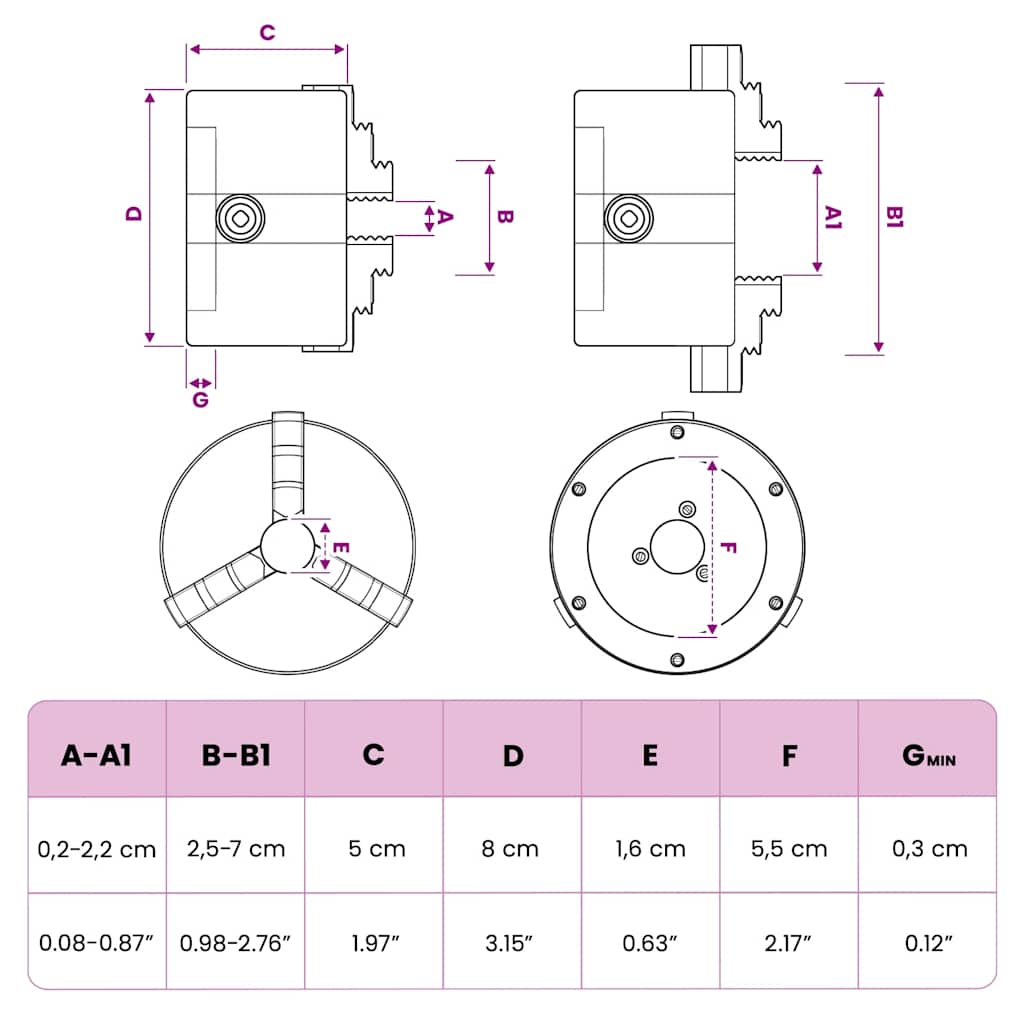

- Outside diameter: 80 mm
- Number of jaw: 3
- Passage: 16 mm
- Cylindrical inner passage: 56 mm
- Clamping range (internal jaw): 2 - 22 mm
- Clamping range (external jaw): 22 - 63 mm
- Total height: 50 mm
- Maximum speed: 4000 R/min

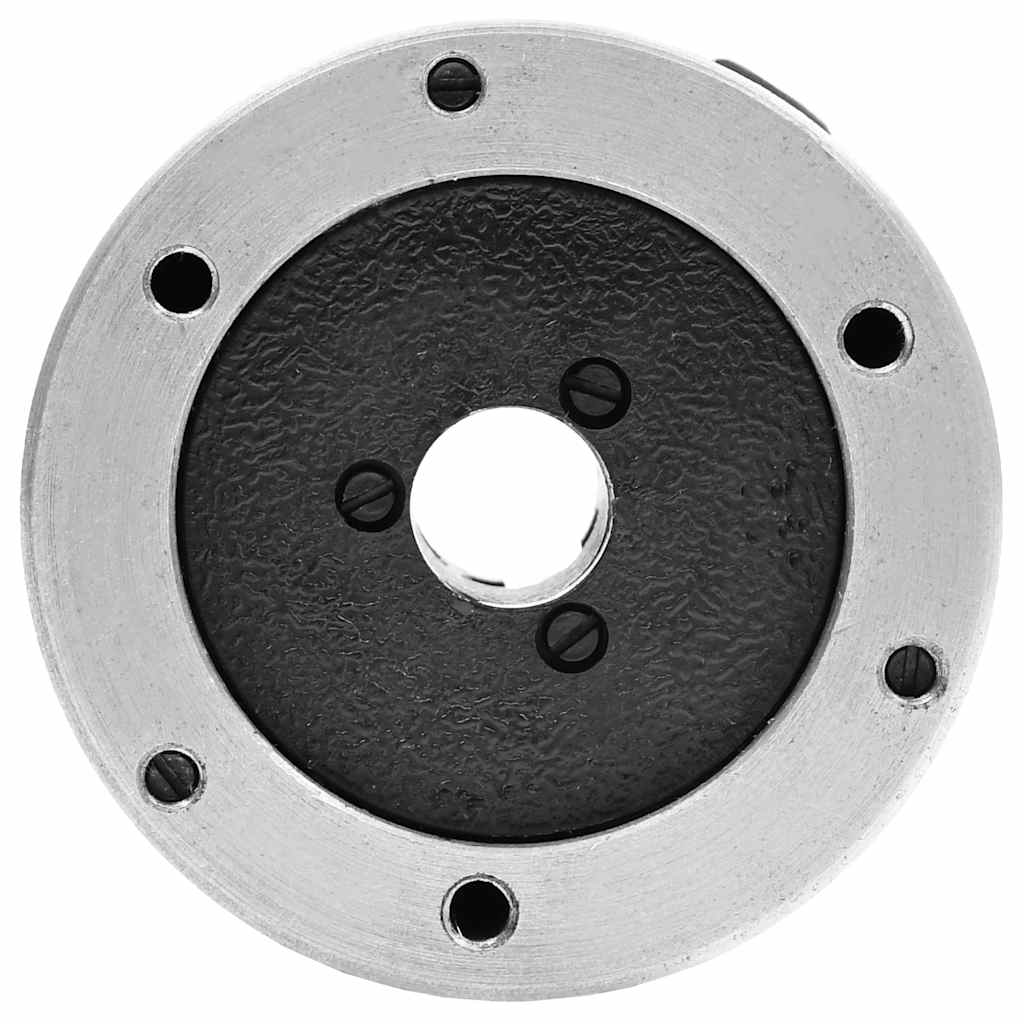

- 3 x M6 holes
- Run out: 0.08
- Net weight: 1.7 kg

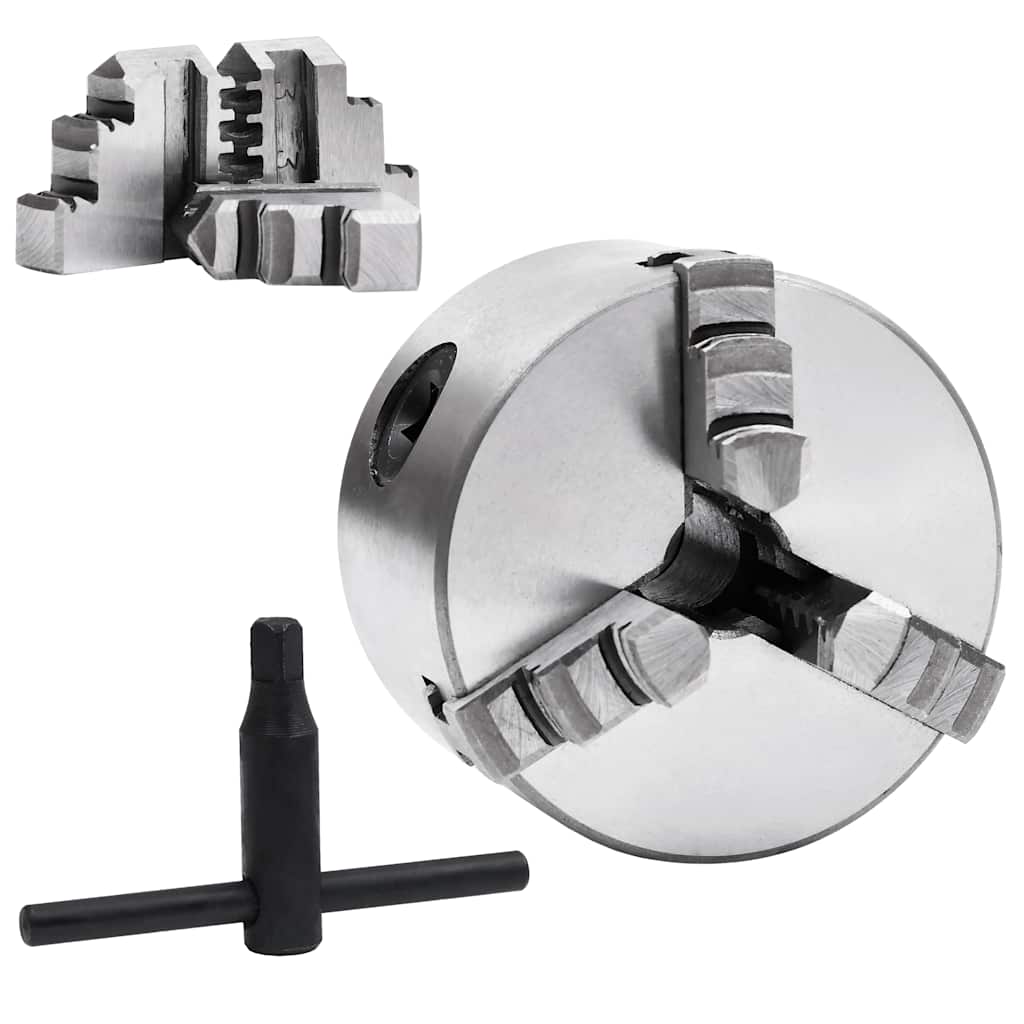

- Delivery contains:
- 1 x Lathe chuck

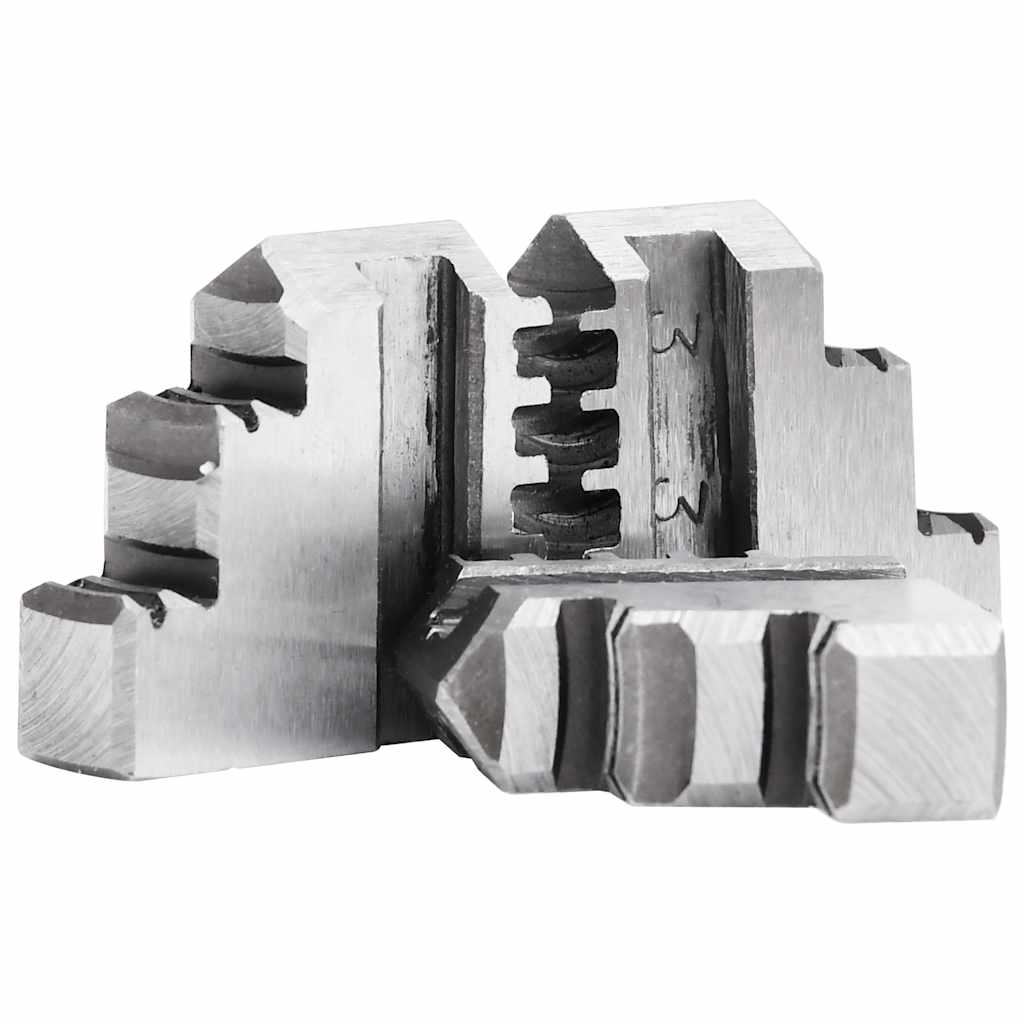

- 3 x Jaw
- 1 x Chuck key
- SKU: 146704
