230V sliding cross cut mitre saw 305 mm 2000 W SCHEPPACH HM305SL

The scheppach HM305SL crosscut mitre saw with sliding pullout function is ideal when there is little space in the workshop, but a high-quality and versatile crosscut, pull and miter saw is still required.
Due to the innovative guidance on fixed rails, the HM305SL does not require any space behind the machine and can therefore also be placed directly in front of walls.

• High-performance 2000 Watt motor with soft start function
• Saw head can be angled 48° to either side for professional results
• Work table can be adjusted from -50° to +50°
• Sliding pullout function with parallel guides requires no space behind the unit
• Built-in laser for precise cutting along the indicated cutting edge
• 305 mm carbide saw blade for consistent and precise cutting results
• High cutting capacity of 340 mm width and 180 mm height, thanks to special cutting height extension
• Saw blade fully enclosed by guard for maximum work safety
• Includes carbide saw blade with 48 teeth

Workpieces up to 340 mm wide can be sawn with the HM305SL saw. This is ensured by the 2000 watt motor and the extra-large 305 mm saw blade with 48 teeth.
The integrated soft start allows the saw blade to start up slowly.

In order to position long workpieces properly, the table can be extended on both sides with extensions to a total of approx. 1040 mm.
A high workpiece stop and a quick-release hold-down device are used for optimal positioning and fixing of the workpiece.

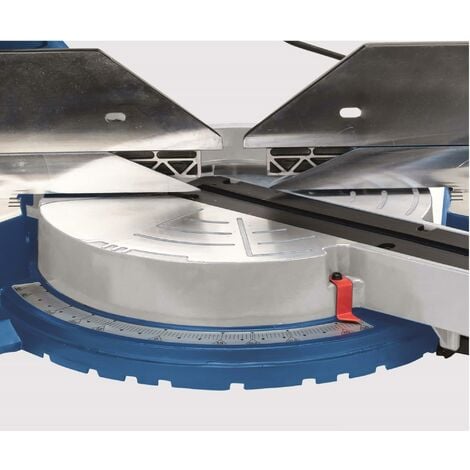

The work table has a free swivel range of -50 to +50° for various bevel cuts and miter angles. Common angles can be fixed quickly and easily using several locking points.
The saw blade can also be tilted by up to 48° to both sides.

The wide handle and the fully enclosed saw blade guard ensure maximum safety for the user of the pull and miter saw when sawing.
The integrated laser shows the exact cutting edge to enable precise cuts in both wood and plastic.

A special feature of the HM305SL is its sliding pullout function with parallel guides. Unlike conventional crosscut saws, the HM305SL does not require any space behind the machine to move the saw head, as the guide rails are fixed. A larger cutting width is possible and the machine can still be placed directly on the wall.
This makes it perfect for small workshops or work surfaces that do not have sufficient depth.

Due to a special attachment of the 305 mm saw blade, a cutting height extension of up to 180 mm is possible.

Technical specifications

Dimensions L x W x H 588 x 842 x 746 mm
Blade Ø 305 mm
Motor speed 5000 rpm
Bevel type 2 x 48°
Mitre capacity -50° left till +50° right
Cross cut at 90° / 90° 340 x 105 mm
Mitre cut at 90° / 45° 340 x 35 mm (r.) - 340 x 60 mm (l.)
Bevel cut at 45° / 90° 235 x 105 mm
Compound cut at 45° / 45° 235 x 35 mm (r.) - 235 x 60 mm (l.)
Mitre slots 45-31.6-22.5-0-22.5-31.6-45°
Motor 220 – 240 V~ / 50 Hz
Input 2000 W
Weight net / gross 20.9 / 24.6 kg
Packaging dimensions 750 x 585 x 390 mm
