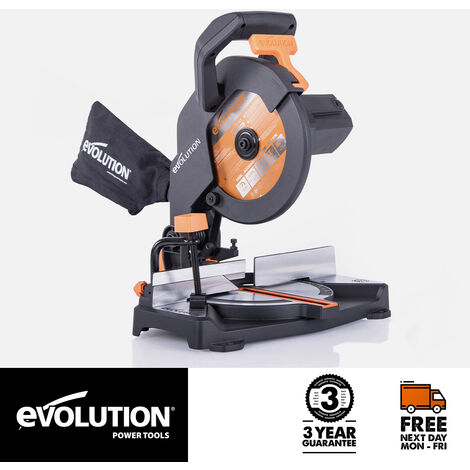

The R210CMS+ is the perfect Compound Mitre Saw for the building trade. Powerful, compact, portable and durable it can easily cut steel, aluminium, wood, wood with nails and plastic, using just a single multi-material blade.
The multipurpose R210CMS+ Compound Mitre Saw is capable of accurate, repeat cuts at any desired angle in wood, plastics, mild steel, aluminium, copper and more. It is the perfect trade saw for 1st and 2nd fix.
Safer, faster, and more economical than abrasive discs when cutting metal, the R210CMS+ slices through metals, producing no heat, or burrs, virtually no sparks and provides cuts that are cool to the touch, clean and instantly ready for fitting.
With great ergonomics, an ambidextrous central handle, and a stable base the R210CMS+ Mitre Saw is a pleasure to use at home and on the jobsite. Save time, save money and get the job done with the R210CMS+ Compound Mitre Saw from Evolution.
Motor (110V 50Hz): | 1200W |
Motor (240V 50Hz): | 1200W |
Speed No Load: | 3750 min-1 |
Max. Mitre: | 45 degrees - 45 degrees |
Max. Bevel (Left): | 45 degrees |
Blade Guard: | Cast Aluminium |
Cable Length: | 2m |
Dust Port Diameter: | 35mm |
Blade Dia.: | 210mm |
No. of Teeth: | 20 |
Bore: | 25.4mm |
Kerf: | 1.7mm |

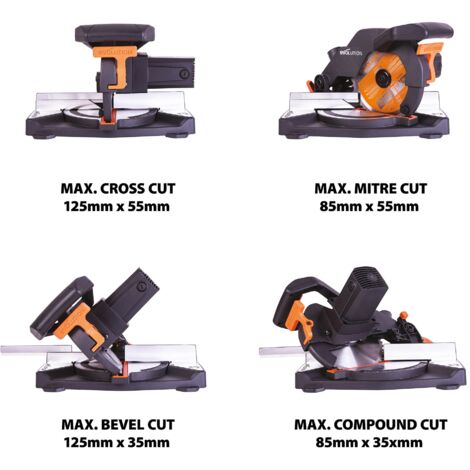

Max. Cross Cut (0 degrees x 0 degrees): | 125mm x 55mm |
Max. Bevel Cut (0 degrees x 45 degrees): | 125mm x 35mm |
Max. Mitre Cut (45 degrees x 0 degrees): | 85mm x 55mm |
Max. Compound Cut (45 degrees x 45 degrees): | 85mm x 35mm |
Mild Steel Plate (Max. Thickness): | 6mm |
Mild Steel Box Section (Max. Wall Thickness): | 4mm |
Product Dimensions: | 260mm x 393mm x 381mm |
Packaging Dimensions: | 420mm x 290mm x 310mm |
Product Weight: | 5.8 kg |
Packaged Weight: | 7.2 kg |
Sound Pressure Level LPA: | 110V: 96.02 dB(A) / 220-240V: 97.14dB(A) |
Sound Power Level LWA: | 110V: 109.02 dB(A) / 220-240V: 110.14dB(A) |
Uncertainty K: | KpA & KWA: K=3 dB(A) |

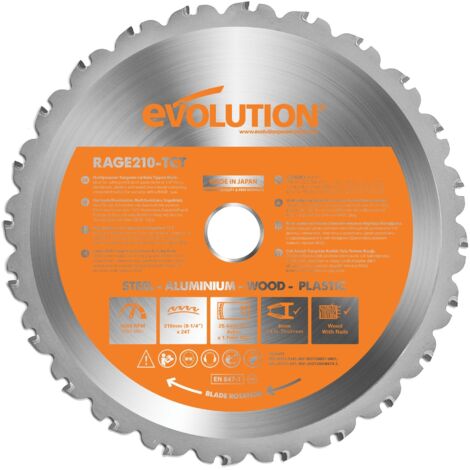

24T Multi-Material TCT Blade (Upgrade over none plus model) |
Dust Collection Bag (Upgrade over none plus model) |
Top Hold Down Clamp |
6mm (Blade Change) Allen Key |
