250kg Electric Winch Scaffold Hoist Winch Crane Workshop Garage Lifting Set

Specifications

Color: Red

Style: Modern

Material: Aluminium, Steel Wire, Cast Iron

Process: Electrostatic Spraying, Spray Paint

Assembly Required: Yes

Power Source: Corded Electric

Plug Type: UK Standard

Voltage: 220V 50HZ

Power: 550W

Motor Type: Aluminium Wire Motor

Control Type: Wireless Remote Control(Included)

Lifting Capacity: 250kg/551.16lbs (Double Cable), 125kg/275.58lbs (Single Cable)

Protection Grade: IP40

Insulation Class: B

Battery Type: 2*AAA Batteries(Not Included)

Remote Control Distance: Within 80m/262.47ft

Lifting Speed: 10m/32.81ft/min (Single Cable), 5m/16.4ft/min (Double Cable)

Lifting Height: 12m/39.37ft(Single Cable), 6m/19.69ft(Double Cable)

Steel Wire Length: 12m/39.37ft

Power Cord Length: 0.5m/1.64ft

Product Size: 34*13*13.5cm/13.38*5.12*5.31in

Package Size: 48*28*20cm/18.9*11.02*7.87in

Gross Weight: 11kg/24.25lbs

Net Weight: 10.45kg/23.04lbs

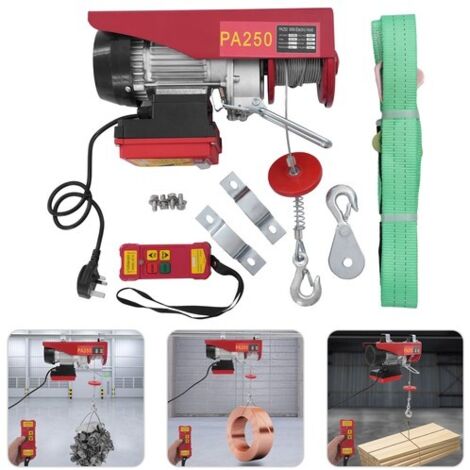

Package Included

1* Electric Hoist

2* Hooks(One is on the Machine)

1* Wireless Remote Control

2* Slings

Other Needed Accessories

Description

There may be a need to lift heavy objects in your daily life and work, but you simply cannot do this by hand. This electric hoist we recommend for you is the right lifting equipment. With its good performance and convenient operation, it is an indispensable working assistant in industrial sites and home renovation. It not only simplifies the heavy lifting process but also makes lifting heavy objects a breeze efficiently and safely.

Key Features

Robust and Durable: The aluminum, steel wire, and cast iron hook with electrostatic spraying and spray paint processes make this product impact-resist, corrosion-resist, and not easy to deform, with high strength and good rigidity.

Powerful Lifting: With a 550W powerful motor, it can lift 551.16lbs/275.58lbs weight of heavy objects with a fast speed to a height of 19.69ft/39.37ft while saving labor costs.

Thoughtful Design: Two slings can be used to secure hard-to-hook goods, so you don't need to buy extra, which is economical and convenient.

Highly Flexible: It features two lifting modes (single cable and double cable), and you can choose different modes according to your needs. Designed with a pulley lift hook for dual-line operation, this electric hoist increases stability and load capacity, making it ideal for heavy lifting.

Safety Guaranteed: The high insulating grade (class B) and IP40 protection grade enhance the safety of the product. In addition, the sealed oil pump design protects against oil leakage. It also comes with a limiter that can automatically cut off the power to protect your safety when the machine is hoisted to a certain position.

Excellent Heat Dissipation: The powerful cooling fan and multiple heat dissipation holes can quickly dissipate heat and reduce the risk of burning out the machine, ensuring stable operation.

Easy to Operate: It is electrically powered and equipped with a wireless remote control (remote control distance: 262.47ft) to help easily control this product.

Simple Installation: The two mounting brackets on the top, simple construction, and complete accessories make it easy for you to complete the installation.

Easy to Maintain: The maintenance cost of an electric hoist is relatively low, you simply need to regularly clean and maintain it.

Details

Hook&Long Steel Wire: The cast iron hook and 39.37ft wire are strong and durable while having a long lifting stroke (39.37ft single cable, 19.69ft double cable), which can lift most items of varying heights and ensure the goods do not fall off or rotate. The latch design of the hook provides further protection.

Remote Control Rope: It facilitates you to operate and store the remote control better without losing it.

Marked Buttons: The buttons come with different colors and marks, so you can easily control its lift and down.

Application

It is suitable for agriculture, factories, docks, mines, warehouses, logistics, construction sites, goods lifting, automobile manufacturing plants, railroads, stage construction, buildings, garages, ceilings, attics, barns, lofts, etc. It is used for lifting regular or irregularly shaped objects and can be used for various lifting equipment such as single columns, pilasters, and cranes.

Notes

• This product is not allowed to be used for lifting people.
• If the hook is cracked or deformed, or if the wire rope is kinked or corroded, please do not use the product. For better results, please use the product within the load range.
• Please ensure that all persons in the immediate area are informed and warned of the need for safety before lifting and moving heavy objects. If necessary, set up a lifting area to remind unoccupied and uninvolved persons that they are not allowed in. Please do not leave lifted heavy objects unsupervised for long periods as this may cause injury.
• Please note that noise is inevitable during product operation. If the specified object is too large or the object cannot be hung directly on the hook, you will need to tie the sling around the object to lift the object.
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
