3.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 3750KG Lifting Towing Tested

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account
Sold by SecureFix Direct

You may also like

210229 12 V Electric Winch 907 KG Wire Remote Control vidaXLVIDAXL
4 options

210229 12 V Electric Winch 907 KG Wire Remote Control vidaXL

411
£76.99
Free shipping
210230 12 V Electric Winch 1360 KG with Mounting Plate Roller Fairlead vidaXLVIDAXL
4 options

210230 12 V Electric Winch 1360 KG with Mounting Plate Roller Fairlead vidaXL

411
£93.99
Free shipping
141628 Hand Winch 360 kg vidaXLVIDAXL
4 options

141628 Hand Winch 360 kg vidaXL

525
Free shipping
141629 Hand Winch 540 kg vidaXLVIDAXL
4 options

141629 Hand Winch 540 kg vidaXL

525
Free shipping
141631 Hand Winch 1130 kg vidaXLVIDAXL
4 options

141631 Hand Winch 1130 kg vidaXL

525
Free shipping
143993 Hand Winch with Strap 360 kg vidaXLVIDAXL
4 options

143993 Hand Winch with Strap 360 kg vidaXL

179
Free shipping
143994 Hand Winch with Strap 540 kg vidaXLVIDAXL
4 options

143994 Hand Winch with Strap 540 kg vidaXL

179
Free shipping
143997 Hand Winch 1360 kg vidaXLVIDAXL
4 options

143997 Hand Winch 1360 kg vidaXL

525
Free shipping
Stainless Steel Strip Dee Shackle 5MM (D Flat Rigging Marine Rope)SECUREFIX DIRECT

Stainless Steel Strip Dee Shackle 5MM (D Flat Rigging Marine Rope)

Free shipping
X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim WomSECUREFIX DIRECT

X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim Wom

1
Free shipping
Long D Shackle Stainless Steel 6MM (Marine Boat Rigging Sails Halyards Dee)SECUREFIX DIRECT

Long D Shackle Stainless Steel 6MM (Marine Boat Rigging Sails Halyards Dee)

Free shipping
Lifting Chain Connector Grade 100 10MM (G10 4 Ton Component Connector 4T)SECUREFIX DIRECT

Lifting Chain Connector Grade 100 10MM (G10 4 Ton Component Connector 4T)

Free shipping
Stainless Steel Bow Shackle with Safety Pin 2 Ton 12MM (Marine Lifting Load Rated)SECUREFIX DIRECT

Stainless Steel Bow Shackle with Safety Pin 2 Ton 12MM (Marine Lifting Load Rated)

Free shipping
1 Ton Piling Shackle Self Colour - Long Body Dee D Tested CertifiedSECUREFIX DIRECT

1 Ton Piling Shackle Self Colour - Long Body Dee D Tested Certified

Free shipping
1.5 Ton Piling Shackle Self Colour - Long Body Dee D Tested CertifiedSECUREFIX DIRECT

1.5 Ton Piling Shackle Self Colour - Long Body Dee D Tested Certified

Free shipping
5 Ton Self Colour Large Dee Shackle With Screw Pin - 5000KG D High Tensile Lifting TowingSECUREFIX DIRECT

5 Ton Self Colour Large Dee Shackle With Screw Pin - 5000KG D High Tensile Lifting Towing

Free shipping
8.5 Ton With Screw Pin Bow Shackle - Lifting 8500KG 1" x 1.1/8"SECUREFIX DIRECT

8.5 Ton With Screw Pin Bow Shackle - Lifting 8500KG 1" x 1.1/8"

Free shipping
210231 12 V Electric Winch 1360 KG with Mounting Plate Roller Fairlead Wireless Remote Control vidaXLVIDAXL
4 options

210231 12 V Electric Winch 1360 KG with Mounting Plate Roller Fairlead Wireless Remote Control vidaXL

411
£108.99
Free shipping
Stainless Steel Long Dee Shackle Captive Screw 8MM (Marine Fishing Boat Trawler D Connector)SECUREFIX DIRECT

Stainless Steel Long Dee Shackle Captive Screw 8MM (Marine Fishing Boat Trawler D Connector)

Free shipping
Electric Winch PVC Black vidaXLVIDAXL
4 options

Electric Winch PVC Black vidaXL

411
£133.99
Free shipping

Compare with similar items

Product information

Description

General description

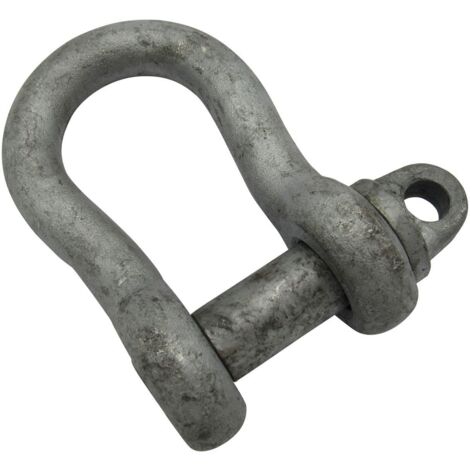

This 3.75 Ton Galvanised Large Bow Shackle with Screw Pin is designed for lifting and towing applications. Manufactured from high tensile steel and finished with galvanisation, it ensures durability and resistance to corrosion. With a safe working load of 3.75 tons and a safety factor of 5:1, this shackle provides optimum safety during use.

Technical specifications

  • Product Code: SFBSLBG3.75
  • Safe Working Load: 3750 KG
  • Pin Type: Screw
  • Manufactured Material: High Tensile Steel
  • Finish: Galvanised
  • Safety Factor: 5:1
  • Dimensions:
  • A (MM): 25.5
  • B (MM): 28.5
  • C (MM): 46.5
  • D (MM): 59
  • E (MM): 111
  • F (MM): 65.5
  • G (MM): 32.75

    • Other information

  • Test Certificate Supplied (Sent Via Email)

    • Features

    • Brand
      SECUREFIX DIRECT
    • Pcs per pack
      1
    • Weight
      100 g
    • Maximum load
      3750 kg
    • Shackle shape
      Lyre
    • Material
      Two-material
    • ManoMano Reference
      ME27135601
    • MMID
      603138844093
    • Product code
      SFBSLBG2.75
    • EAN
      600988500754
