General description

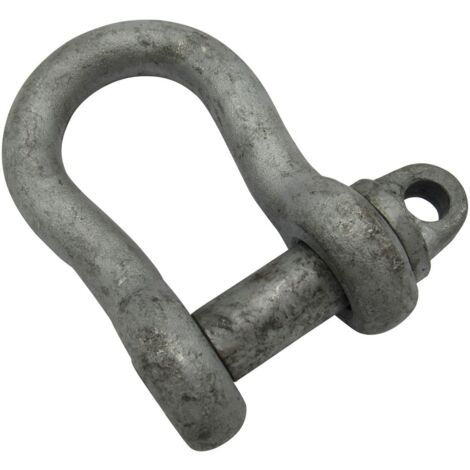

The 8.5 Ton Galvanised Large Bow Shackle with Screw Pin is designed for heavy-duty lifting and towing applications. Manufactured from high tensile steel and finished with galvanisation, this shackle ensures durability and resistance to corrosion. With a safe working load of 8.5 tons and a safety factor of 5:1, it provides optimum safety during use.
Technical specifications
- Product Code: SFBSLBG8.5
- Safe Working Load: 8500 KG
- Pin Type: Screw
- Manufactured Material: High Tensile Steel
- Finish: Galvanised
- Safety Factor: 5:1
- Dimensions:
- A: 37.5 MM
- B: 44 MM
- C: 70.5 MM
- D: 89 MM
- E: 170 MM
- F: 96.5 MM
- G: 48.25 MM
Other information
Test Certificate Supplied (Sent Via Email)
