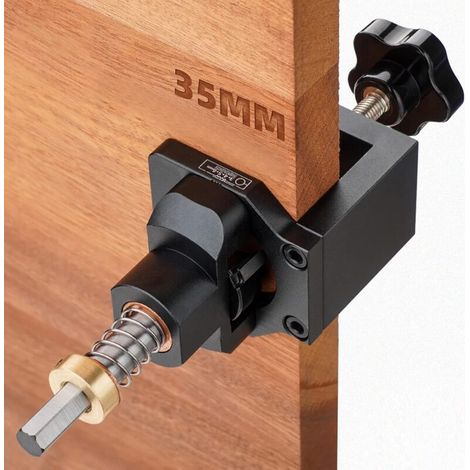

This 35mm Hinge Drilling Jig is designed specifically for concealed hinges, making cabinet door installation easier and more efficient. It eliminates the need for measuring, allowing for quick and precise drilling of hinge holes.

Technical specifications

  • Product Name: 35mm Cabinet Hinge Jig Drilling Hole Puncher
  • Material: 6061 Aluminum Alloy (Main Body), Brass (Limit Pull Ring, etc.)
  • Surface Treatment: Anodized
  • Color: Black
  • Drill Bit Size: 35mm Hole Saw, double-edged
  • Product Size: 170 x 60 x 58 mm

    • Compatibility and accessories

  • Designed for 35mm hinges
  • Accessory set includes: hex socket, adjusting wrench
  • Package includes: 1 x hinge positioner, 1 x Allen socket, 2 x adjusting wrench

    • Installation

  • Draw a reference line based on the height of the cabinet door and the number of hinges.
  • Align the tip of the jig with the reference line and secure it with the handle.
  • Install the hex socket on the electric drill, set to high-speed drilling mode.
  • Drill without pressing down excessively to avoid overloading the drill.
  • Lift the drill several times during drilling for chip evacuation.
  • After drilling, clean the sawdust and check the depth.
  • Adjust the hinge position and install screws to complete the installation.

    • Usage

  • Ideal for DIY woodworking projects involving cabinet doors.
  • Facilitates quick and accurate hinge hole drilling.

    • Features

    • Brand
      GOTRAYS
    • Material
      Aluminium
    • Pcs per pack
      1
    • Colour
      Black
    • Chuck diameter
      35 mm
