35mm hinge jig, cabinet door hinge jig, concealed hinge jig, hole punch, drill guide locator for DIY woodworking

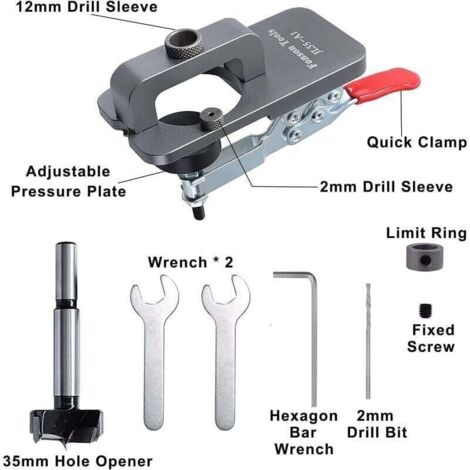

General Description: 35mm hinge jig, ideal for fitting concealed hinges on doors and cabinets. Made from aluminum alloy, this tool is designed for maximum durability and precision, making woodworking easier for DIY enthusiasts. Technical Specifications Material: Aluminum alloy Hole diameter: 35 mm Drilling depth: 12-13 mm Adjustable fixed plate size: 15-25 mm Included: 2 mm drill bit Compatibility and Accessories Compatible with most common hinges Included accessories: 35 mm hole opener, limit ring, fixed screw, wrenches, and hex key Installation Install a 35 mm hole opener. Adjust the drilling depth to 12-13 mm and lock the limit ring. Adjust the fixed size of the quick-release clamp's pressure block. Move the drill to the marked position and lock the quick-release clamp. Squeeze the drill handle and drill to 12-13 mm. Drill a 2 mm screw hole on the left and right sides. Use Use this tool to drill precise holes for hinge installation in various woodworking projects. Suitable for both beginners and experienced users.
