4D Laser Level 16 Lines 3° Auto Leveling Machine USB Rechargeable Lithium Battery Leveling Tool with Vertical and Horizontal Tilt Lines - Blue

Product information

Description

General description

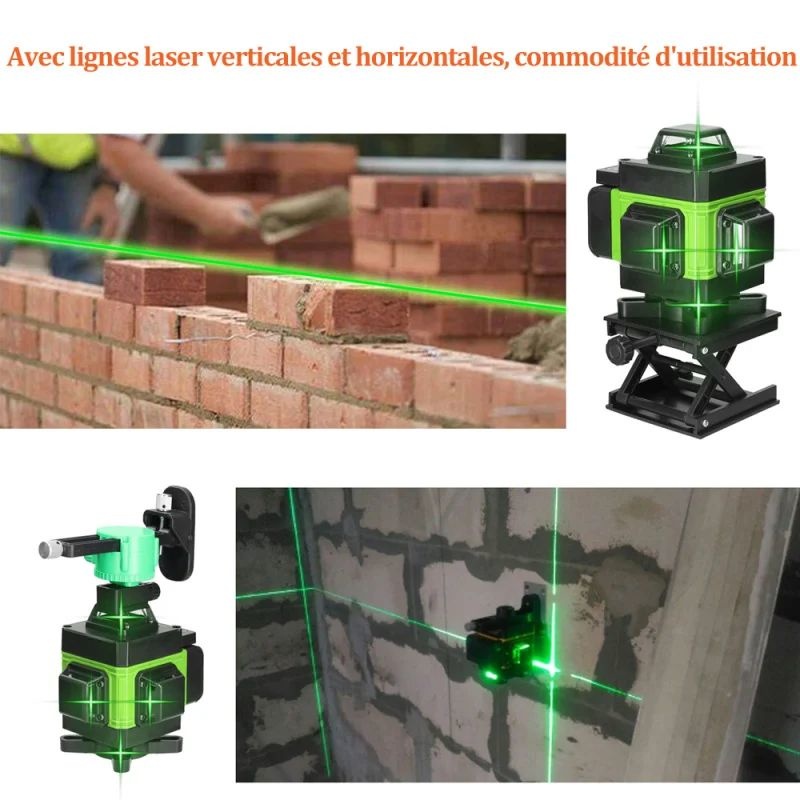

The 4D Laser Level is a versatile leveling tool that emits visible horizontal, vertical, and tilt lines for self-leveling, either separately or simultaneously. It provides accurate data for interior construction, making it suitable for various applications such as laying floor tiles, wallpapering, stenciling, and finish carpentry. The compact and lightweight design allows for easy mobility and storage.

Technical specifications

Name: Laser level

Main material: plastic + metal

Laser class: class 2, output power < 1mW

Line type: 4 * 360°

Wavelength: 532nm (green)

Battery: 2 * rechargeable lithium battery, 3.7V, 2400mAh (included)

Horizontal/Vertical accuracy: ±2mm/10m

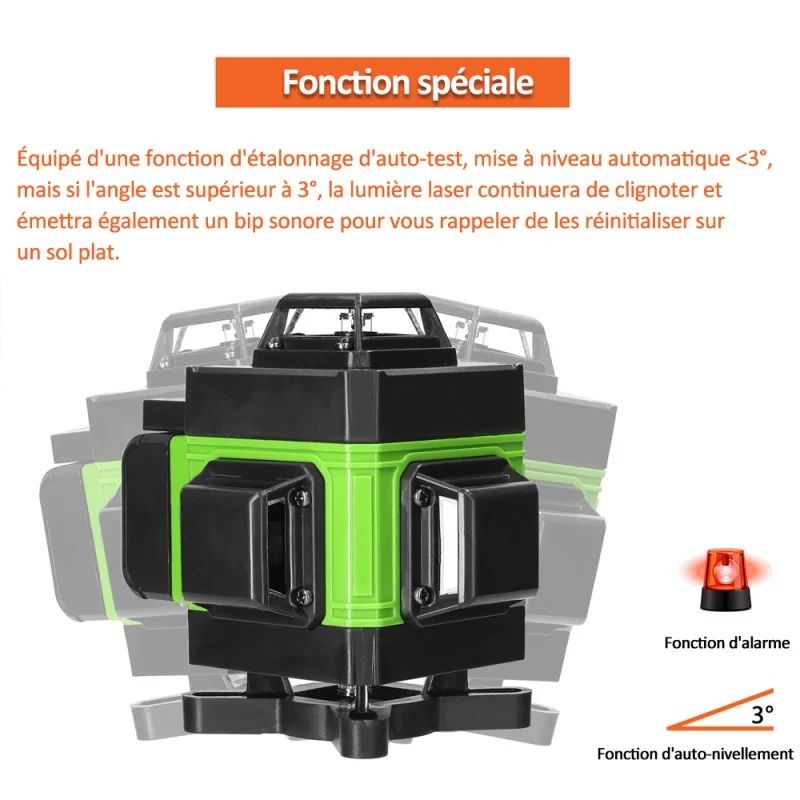

Self Leveling: ±3°

Operating Temperature: -5℃ to 50℃

Waterproof level: IP54

Working distance: 25m

Machine dimensions: 130 * 102 * 134mm / 5.12 * 4.02 * 5.28in

Item Weight: 1485g / 3.27lb

Package Size: 220 * 165 * 255mm / 8.66 * 6.50 * 10.04in

Package Weight: 1649g / 3.64lb

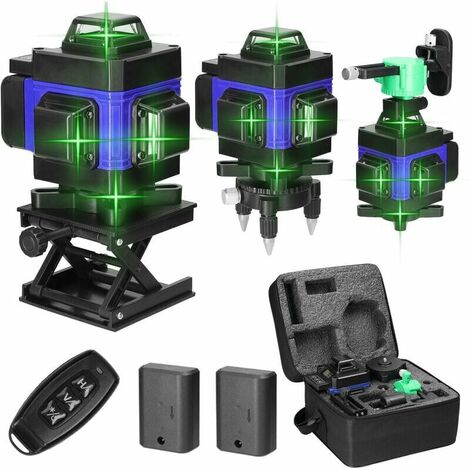

Compatibility and accessories

1 * Level Machine

2 * Battery

1 * Battery Charger

1 * Tripod base

1 * Wall bracket

1 * Ironing board

1 * Lifting platform

1 * Remote control

1 * 1/4 inch to 5/8 inch thread adapter

1 * Carry Bag

1 * Guide

Installation

T-shaped bracket with 7mm distance for wall mounting

360° rotatable base with fine adjustment mechanism

Compatible with 1/4 inch and 5/8 inch tripods for height adjustment

Usage

Push buttons for easy operation: right to open, left to close

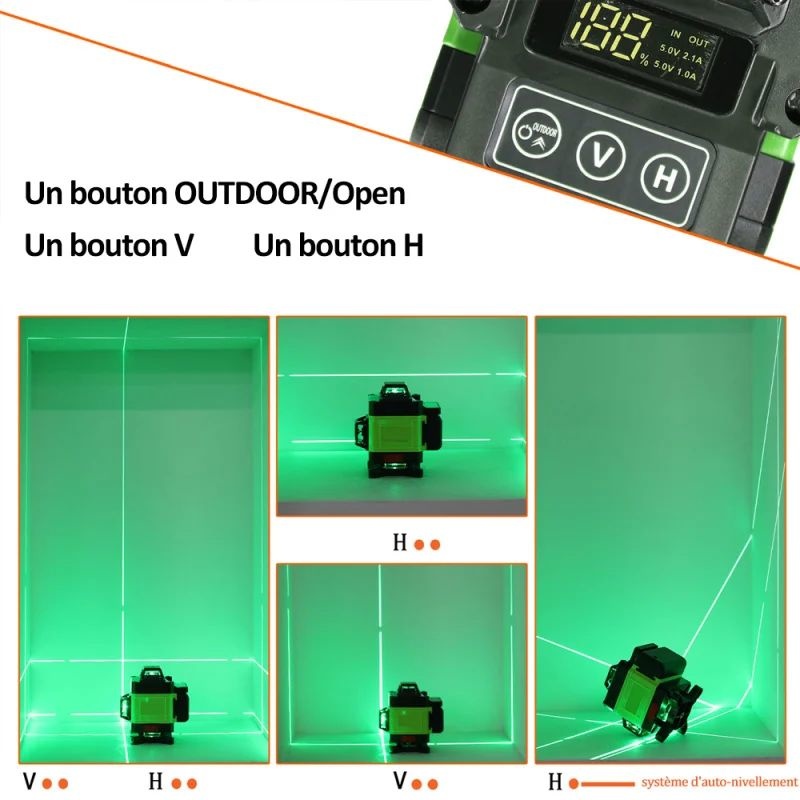

Touch buttons for horizontal, vertical, and tilt lines

Adjust brightness of the laser according to working conditions

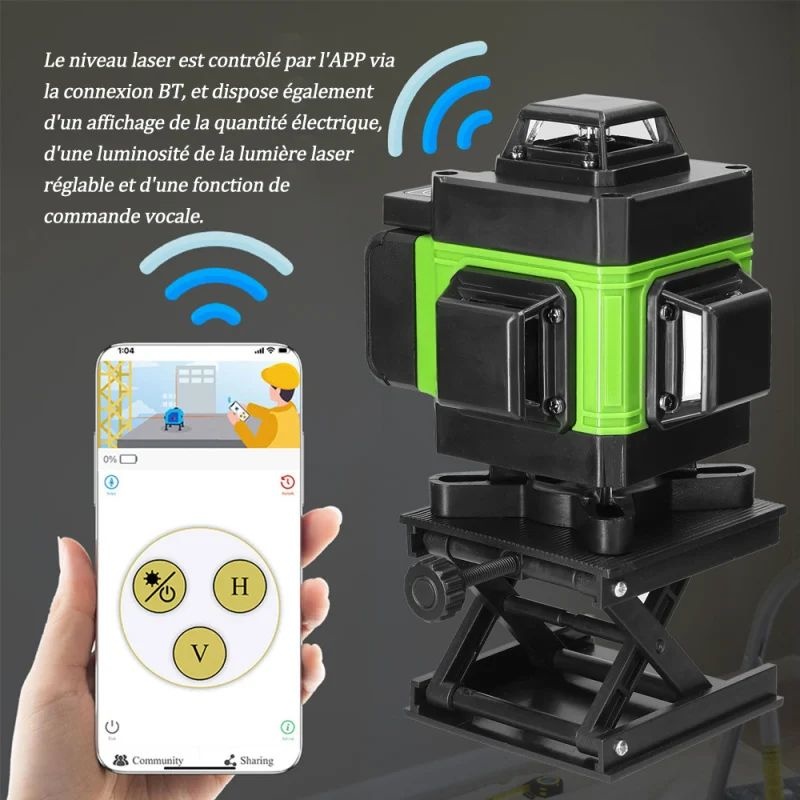

Control the laser level via mobile app through Bluetooth connection

Other information

Waterproof and dustproof, suitable for indoor and outdoor use

Do not stare into the laser light directly

Do not disassemble the instrument or perform internal repairs

This instrument complies with the Laser Radiation Safety Evaluation Standard

Features

Brand
ABC
Length
13 cm
Range
25 m
Beam colour
Green
Self-levelling (feature)
Yes
Battery or cell included
Yes
Laser class
2
Remote operation
Yes
Self-stabilizing beam
Yes
Laser shape
Horizontal
Height
134 mm
Material
Metal / Plastic
Parallel leveling (360°)
Yes
Weight
1485 g
Plumb mark
Yes
ManoMano Reference
ME76848712
MMID
242893700638
Product code
C-MANOuk230131-2689
EAN
5328793490439
