Huepar LR-5RG Laser Detector for Pulse Lasers, Digital Green and Red Laser Receiver, Use with Line Lasers, Distance up to 50-60m, with Backlit LCD Screens on Both Sides (Only Compatible with 5:5 Laser

GENERAL DESCRIPTION

The Huepar LR-5RG receiver is designed specifically for use with Huepar Line Laser Levels and cannot be used with Rotary Laser Levels. It is compatible with models such as Huepar 901CG, 902CG, BOX-1G/R, 8211G, 621CG/R, 622CG/R, 602CG/R, 603CG/R, and GF360G/R. The receiver can also work with Tacklife SC-L03 and SC-L04 Laser Levels.

TECHNICAL SPECIFICATIONS

• Laser Class: Class 2 (IEC/EN60825-1/2014) <1mW power output
• Pulse duration: 50 μs; PWM: 5:5
• Frequency: 10KHz
• Display: Dual LCD Display
• Leveling Accuracy (High): ≤2mm (1/13in)
• Leveling Accuracy (Low): ≤3mm (1/9in)
• Working Distance: 130ft~200ft (depending on light source)
• Operating Time: 20 hours; Auto Power Off after 10 minutes of inactivity
• Power Source: 2 AA Batteries (Alkaline)

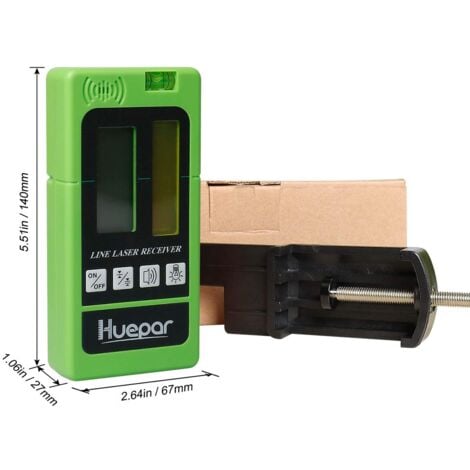

• Dimensions (LxWxH): 140mm × 68mm × 26mm
• Weight: 140g

COMPATIBILITY AND ACCESSORIES

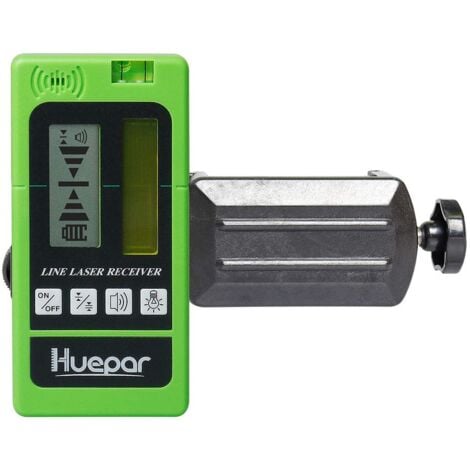

Compatible with Huepar Line Laser Levels and Tacklife SC-L03/SC-L04. Package includes the Huepar LR-5RG Digital Laser Detector, a heavy-duty clamp, and 2 AA batteries.

USAGE

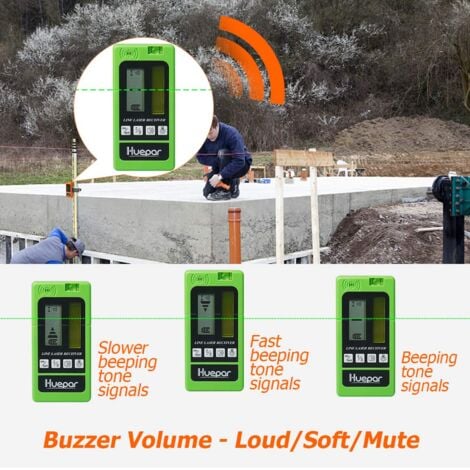

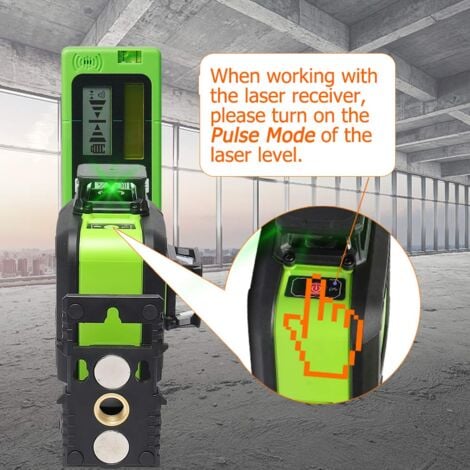

To use the receiver, set the laser level to Pulse (Outdoor) Mode, ensure the windows of both devices are clean, and check the batteries. The receiver will provide optical and acoustic signals to help locate the laser plane accurately.

OTHER INFORMATION

This receiver is not compatible with Rotary Laser Levels and is intended for use with pulse induction laser levels only. It cannot be used with Huepar models 9011G, 9211G, FL360R, FL360G, or 8300G.
