5 Ton 0-65MM Horizontal Plate Lifting Clamp - 5000KG Grip Lift

Name: 5 Ton 0-65MM Horizontal Plate Lifting Clamp - 5000KG Grip Lift
Brand: SECUREFIX DIRECT
SKU: SFHLC5
Price: 185 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

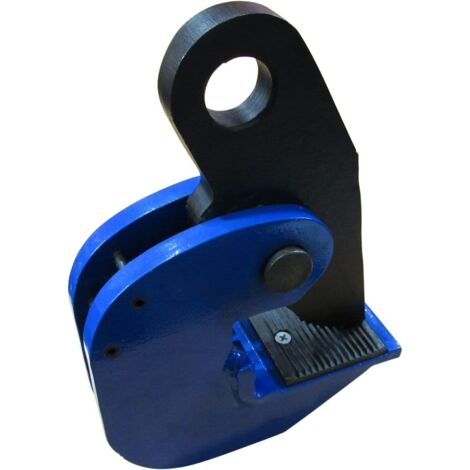

These 5 Ton Horizontal Plate Lifting Clamps are designed for lifting sheet materials in a horizontal position. They ensure a secure grip without slipping when lifting force is applied or during lowering, making them reliable for heavy-duty lifting tasks.

Technical specifications

Lifting Capacity: 5 Ton

Jaw Opening: 0-65MM

Minimum Steel Thickness: 20% of Jaw Opening + Minimum Opening

Minimum Loading Weight: 20% of Safe Working Load (SWL)

Conforms to: BS EN 13155

Product Code: SFHLC5

Dimensions:

Min Loading (KG): 1000

A (MM) MIN: 220

A (MM) MAX: 265

B (MM) MIN: 178

B (MM) MAX: 205

C (MM): 170

F (MM): 71

G (MM): 30

H (MM): 220

I (MM): 18

Other information

Test Certificate included (sent via email)

Please note that we supply a huge variety of lifting equipment

Features

Brand
SECUREFIX DIRECT
Warranty
1 year(s)
Pcs per pack
1
Power source
Manual
Height
17 cm
