Product information

Description

General description

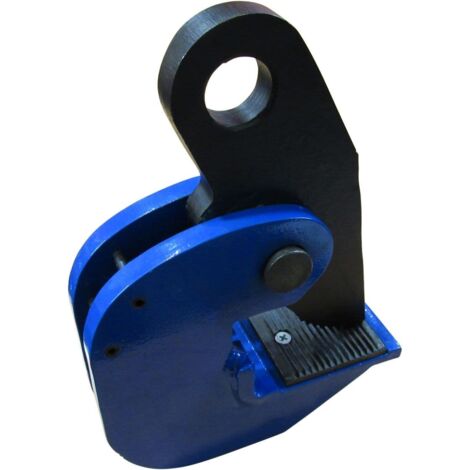

These 4 Ton Horizontal Plate Lifting Clamps are designed for lifting sheet materials in a horizontal position. They provide a secure grip and do not slip when lifting force is applied or during lowering.

Technical specifications

  • Lifting Capacity: 4 Ton
  • Jaw Opening: 0-60MM
  • Minimum Steel Thickness: 12MM
  • Minimum Loading: 800KG
  • Product Code: SFHLC4
  • Dimensions: A(MM)MIN 215, A(MM)MAX 261, B(MM)MIN 175, B(MM)MAX 205, C(MM) 165, F(MM) 66, G(MM) 29, H(MM) 220, I(MM) 19

    • Other information

  • Conforms to BS EN 13155
  • Test Certificate included (sent via email)
  • Please note that the minimum loading weight is 20% of the Safe Working Load (SWL)
  • The minimum thickness is 20% of the jaw opening plus the minimum opening

    • Features

    • Brand
      SECUREFIX DIRECT
    • Pcs per pack
      1
    • Power source
      Manual
    • Suitable for
      Metal
    • Material
      Two-material
    • Weight
      100 g
    • ManoMano Reference
      ME27139019
    • MMID
      364261952374
    • Product code
      SFHLC4
    • EAN
      0600988504349
