5 Ton Screw Type Push Trolley - 5000KG Beam Girder Plain Travel

Name: 5 Ton Screw Type Push Trolley - 5000KG Beam Girder Plain Travel
Brand: SECUREFIX DIRECT
SKU: SFSTPT5
Price: 225 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

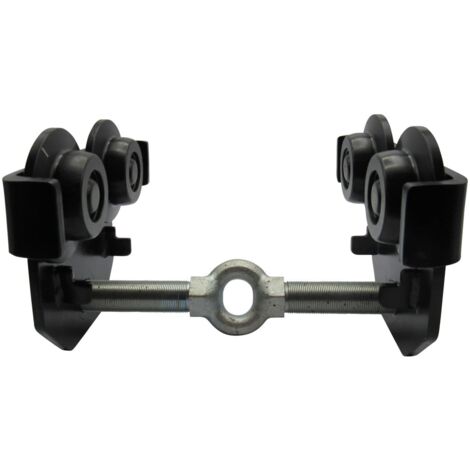

5 Ton Adjustable Screw Type Push Trolley is designed for attachment to steel beams, serving as a lifting point for chain blocks, hoists, and lifting tackle. This trolley can be easily moved backwards and forwards on the beam, providing flexibility in lifting operations. The screw type adjuster allows for efficient adjustment to fit various beam sizes as required.

Technical specifications

Safe Working Load (S.W.L): 5 Ton (5000KGS)

Overall Length Of Trolley: 395MM

Overall Width Of Trolley: 335MM

Overall Height Of Trolley: 285MM

Recommended Beam Size: 90-220MM

Conforms to: BS EN 13157: 2004 + A1: 2009

Other information

Supplied with Test Certificate (via email)

Product Code: SFSTPT5

Features

Brand
SECUREFIX DIRECT
Warranty
1 year(s)
Maximum load
5000 kg
Height
28.5 cm
Material
Two-material

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
