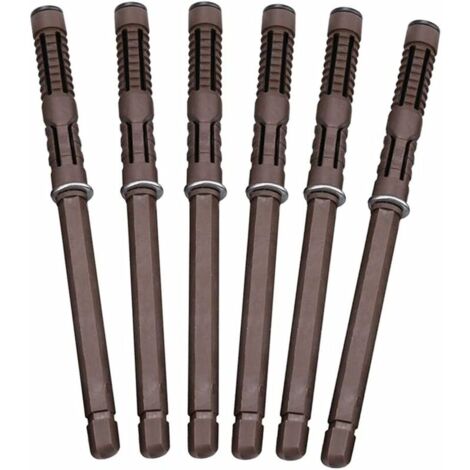

[6 pieces] 12x120mm Concealed Floating Shelf Bracket Wall Shelf Brackets and Brackets Heavy Duty Invisible Bracket Hidden Shelf Brackets for Custom Wall Shelves Floating Planks

~~£23.99~~

Product information

Description

General description

The Concealed Floating Shelf Bracket set includes 6 heavy-duty brackets designed for custom wall shelves. These brackets are completely hidden within the walls and boards, providing a simple and stylish solution to enhance the aesthetics of your home while ensuring stability and strength.

Technical specifications

Total length: 195 mm

Expansion tube length: 75 mm

Expansion tube diameter: Ø12 mm

Support rod length: 120 mm

Support rod diameter: Ø12 mm

Load capacity: up to 20 kg when properly installed on a suitable solid wall

Material: Iron (interior), plastic (housing and expansion tube)

Installation

Measure the hole spacing and drill holes in the wall (depth should not exceed 75 mm).

Insert the extension end of the bracket support pin into the wall hole along with the black screw cap.

Insert the handrail into the expansion plug in the wall opening and tighten the screw cap clockwise until the expansion plug expands into the wall.

Drill an appropriate size hole in the side of the panel based on the distance between the wall holes.

Insert the printed circuit into the board supports.

Use a 12 mm drill bit for drilling holes.

Ensure the silver metal center ring is placed on one side of the expansion pipe and recessed into the wall.

Each board should have at least two invisible supports and be kept in a horizontal position.

Usage

The brackets can support and fix various types of wall shelves, including display stands, garage shelves, decorative shelves, bathroom shelves, and shoe racks, making them ideal for different DIY wall mounting designs.
