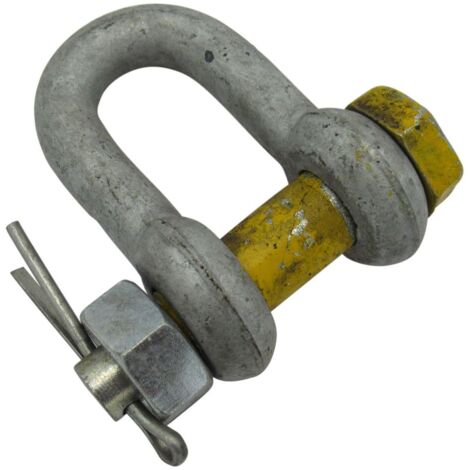

8.5 Ton Safety Pin Galvanised Dee Shackle - 8500KG Upset Forged Tested Certified

Name: 8.5 Ton Safety Pin Galvanised Dee Shackle - 8500KG Upset Forged Tested Certified
Brand: SECUREFIX DIRECT
SKU: SFYPUFSAD8.5
Price: 19.75 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

8.5 Ton Safety Pin Galvanised Dee Shackle is designed for heavy-duty lifting applications. Manufactured using upset forged techniques, this shackle features a hot-dipped galvanised body and a painted pin finish, ensuring durability and resistance to corrosion. With a safe working load of 8.5 tons and a high safety factor of 5:1, it provides optimum safety during use. The shackle is equipped with a safety pin for added security.

Technical specifications

Safe Working Load: 8.5 Tons

Body Finish: Hot Dipped Galvanised

Pin Finish: Painted

Safety Factor: 5:1

Conforms to: BS EN 13889: 2003 + A1: 2008

Product Code: SFYPUFSAD8.5

Dimensions:

A: 25.5 mm

B: 30 mm

C: 80.5 mm

D: 41.5 mm

E: 59.5 mm

Other information

Test certificate supplied (sent via email). Please note that the color may vary from the picture. A wide variety of lifting equipment is also available.
