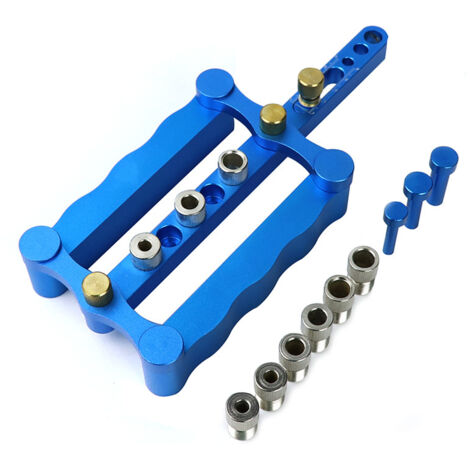

Adjustable Self-Centering Drill Guide Kit with 6mm, 8mm and 10mm Bushings for Woodworking Carpentry (Blue)

(£28.23/kg)

~~£42.92~~

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by HERSAMA

Product information

Description

This dowel jig is made of industrial-grade 6150 aluminum alloy, offering good strength and high corrosion resistance, making it durable and long-lasting. Wide clamping range, the maximum is 60 mm. It comes with 9 drill bushings in 3 sizes, meeting different needs in the wood drilling process.

Specifications

Material: Aluminum alloy

Color: Blue

Drill bushings size: 6/8/10 mm (3 pieces/type)

Dowel positioning: 6/8/10 mm

Suitable wood size: 17-60 mm / 0.67-2.36 inches

Dimensions: 23.5 x 10 x 3.8 cm / 9.25 x 3.94 x 1.50 inches

Usage

1. Adjust the positioning scale to determine the distance between the first hole and the end of the board.

2. After fixing the position, select the drill bit corresponding to the drill bushings to start drilling.

3. Remove the ladder nuts after drilling three holes.

4. Use the positioning pin to fix the hole on the third hole (make sure the distance of each hole is the same).

5. Drill all holes straight.

6. Glue the round wooden rod firmly with glue to the drilled hole.

Package Contents:

1 x Self-Centering Centering Jig.

9 x Drill Bushings.

3 x Positioning Dowel.

Features

Brand
BEIJIYI
Material
Aluminium
Colour
Blue
Height
3.8 cm
Compatible drill
Standard drill
Weight
200 g
Type of drill accessory
Guide
ManoMano Reference
ME95592137
MMID
527617771048
Product code
YU00834
EAN
9324622210250
