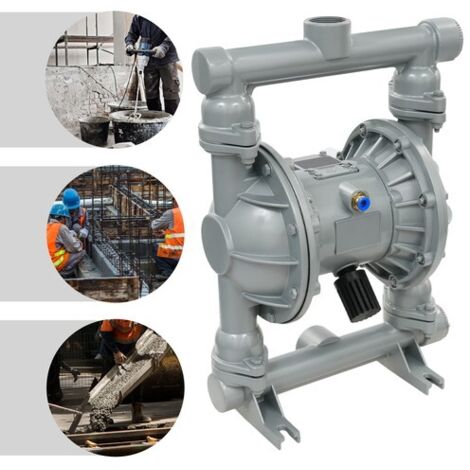

Air Operated 1.5 Inch Aluminum Double Diaphragm Pump for Fluid Transfer Paint

Description

This air-driven double diaphragm pump delivers a clever blend of durability and versatility, easily tackling diverse fluid transfer challenges in commercial and industrial environments—making efficient, reliable pumping an easy reality. Powerful, versatile, and built to last, this pump is ideal in high-demand applications.



Key Features

Tough Construction: Crafted from aluminum alloy, neoprene rubber, and nitrile rubber with an integral molding process, this product seals tight, stands strong, and keeps pumping through various kinds of fluids, season after season.



Masterful Performance: Boasting a 164.04-ft reach, 22.97 ft suction lift, and flow rates up to 4.71 CFM, this pump dynamically adapts to diverse pumping needs—delivering powerful, efficient movement with every cycle.



Efficient and Reliable Conveying Performance: Featuring a 1.5-inch inlet/outlet and compatibility with particles up to 0.18 inches in diameter, this product ensures smooth flow, minimizes clogging risks, and reduces downtime for uninterrupted operation.



Flex & Endure: Built with dual diaphragms in tough neoprene and nitrile rubber, this pump takes fluids and daily wear with ease—staying flexible and tightly sealed in the long term.



Safe & Sound: Powered by air instead of electricity, this pump operates without sparks or heat buildup. It delivers reliable performance in various conditions, offering peace of mind while keeping your workspace secure and productive.



Details

Thoughtful Muffler: It gently hushes the noise, so you can work smoothly with less fret and more relaxation.



Reinforced Mounting Feet: The sturdy mounting feet make setup quick, easy, and stable.



Application

This product is suitable for pumping liquids such as paint, pigments, adhesives, ceramic glaze slurry, various abrasives, sewage, cement grout, mortar, and as a pre-pressurization device for various solid-liquid separation equipment.



Specification

Color: Silver

Style: Modern

Material: Aluminum Alloy, Neoprene Rubber, Nitrile Rubber

Process: Integrated Molding

Drive Type: Pneumatic

Inlet/Outlet Size: 3.81cm/1.5in

Max. Passable Particle Diameter: 4.5mm/0.18in

Head: 0-50m/0-164.04ft

Suction Lift: 7m/22.97ft

Air Nozzle Diameter: 10mm/0.39in

Outlet Pressure: 6kgf/cm²/85.34PSI

Max. Air Supply Pressure: 7kgf/cm²/99.5PSI

Flow Rate: 0-8m³/h/0-4.7 CFM

Max. Air Consumption: 1.7m³/min/60.03 CFM

Normal Air Consumption: 0.6m³/min/21.19 CFM

Product Size: 37.5*23*52.5cm/14.76*9.06*20.67in

Package Size: 51*41*25cm/20.08*16.14*9.84in

Gross Weight: 13.45kg/29.65lbs

Net Weight: 12.2kg/26.9lbs



Package Included

1* Air Operated Double Diaphragm Pump

1* Chinese & English Manual



Notes

• Please check the product size carefully before purchasing.
• This product is not suitable for pumping corrosive materials.
• Please read the manual carefully before use and pay particular attention to the safety precautions.
• Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
