Air Suspension Kit W/ Compressor For Fiat Ducato Citroen Relay 1994-2024 4000kg

You may also like

Compare with similar items

Product information

Description

General description

Air Suspension Kit with Compressor designed for Fiat Ducato, Citroen Relay, Peugeot Boxer, and Citroen Jumper models from 1994 to 2024. This kit is suitable for various body types including panel vans, tippers, motorhomes, campers, and box vans. It is compatible with both single and twin rear wheel configurations, as well as front-wheel drive (FWD) and rear-wheel drive (RWD) chassis types, excluding Alco type torsion bars chassis.

Technical specifications

  • Max loading: 4000 kg
  • Package dimensions: 42 x 37 x 27 cm
  • Package weight: 12.4 kg
  • Air spring design height: 172 mm
  • Air spring stroke: 140 mm
  • Air spring extended height: 230 mm
  • Air spring compressed height: 90 mm
  • Air pump power: 150W
  • Output voltage: 12V
  • Maximum current: 10A
  • Maximum working voltage: 10 bar (1 MPa)
  • Compatibility and accessories

  • Compatible with Fiat Ducato, Citroen Relay, Peugeot Boxer, and Citroen Jumper (1994-2024)

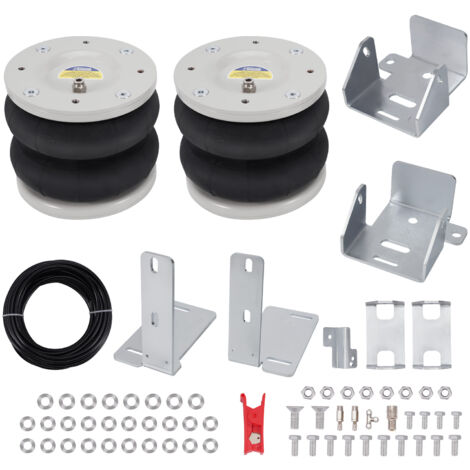

  • Includes: 2x Natural Rubber & Hi-tensile steel air spring bags
  • 4x Galvanised heavy-duty mounting brackets
  • 1x 12V air suspension compressor
  • 1x Barometer
  • 4x Air fittings
  • 1x 5m air line
  • 1x Tee T-fitting
  • 2x Hex valve air fittings (G1/8)
  • 2x 90° air fittings (G1/8)
  • 1x Installation box with bolts, screws, washers, and spring washers
  • Installation

    Professional installation is recommended for this aftermarket air suspension kit, which is designed to replace the original suspension components.

    Usage

    This air suspension kit enhances vehicle stability, restores original ride height, improves ride quality, and ensures driving comfort while reducing tire wear.

    Other information

  • Stress tested for over 5,000,000 cycles for durability and safety
  • Burst pressure ≥ 2.0 MPa for high compressive strength and reduced noise
  • Air tightness test ≤ 0.02 MPa guarantees 100% air tightness
  • Temperature range: ≥ -40℃ to ≤ 70℃, made from premium natural rubber material
  • Constructed with high-quality steel for high load-bearing capacity and longevity
  • Features

    • Brand
      MAXPEEDINGRODS
    • Width
      37 cm
    • Material
      Metal
    • Pcs per pack
      2
    • Warranty
      2 year(s)

    Customer reviews

    Aalain
    Published on 19/06/2025, France

    Very well packaged. The mounting plates are of good quality. Several accessories for connecting air hoses. Unbeatable value for money. Very easy to assemble.

    3 people found this helpful
    Jjean michel
    Published on 16/02/2026, France

    The product is great, assembly was easy, the hardest part is unscrewing the brackets when they're rusty, otherwise it's fantastic, thank you

    Rroland
    Published on 08/12/2025, France

    Very good product, meets my expectations

    MManoMano Customer
    Published on 02/12/2025, France

    Good product. Note: the top part is difficult to attach.

    MMarc
    Published on 07/08/2025, France

    Very good product! The air springs provide incredible stability to my vehicle, a 2003 Hymer motorhome. Even with new shock absorbers, it had some wobble when cornering and passing trucks. With the air springs, it handles like a car. The kit is easy to install and very effective. Plus, you can replace the shims by increasing the pressure to level the vehicle. When driving, reset the pressure to 2.5 bar; it's the best compromise between comfort and handling. Very good purchase, fast delivery, efficient after-sales service, and good advice! WELL DONE!

    1 person found this helpful
    Cclaude
    Published on 16/07/2025, France

    Very good product, easy and quick to install for an average DIYer, huge change in the vehicle's ride and comfort. The connection and bolts are top notch; the only criticism is the length of the air hose. I recommend it.

    9 people found this helpful
