General description

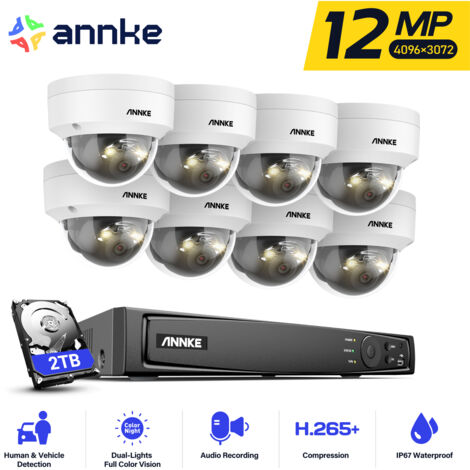

ANNKE 12 MP Outdoor Video Surveillance Kit includes 8 outdoor cameras designed for comprehensive security monitoring. With advanced features such as color and infrared night vision, built-in microphones, and person/vehicle detection, this kit ensures 24/7 video surveillance for your property.Technical specifications
- Camera Type: IP Camera
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Max Resolution: 4096 x 3072 (12 MP)
- Main Stream: 50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720); 60 Hz: 10 fps@4096*3072, 15 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720)
- Substream: 50 Hz: 12.5 fps (1280*720, 640*480, 640*360); 60 Hz: 15 fps (1280*720, 640*480, 640*360)
- Video Compression: H.265+/H.265/H.264+/H.264
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Lens: 2.8 mm
- Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Angle of View: Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
- Supplement Light Range: Up to 30 m
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F – 140 °F/-30 °C – 60 °C
- Dimension (L X W X H): 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
- Weight: 0.6 lb./285 g
Compatibility and accessories
- Supports up to 16 IP cameras with built-in PoE inputs
- Compatible with third-party network cameras
- Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
- NVR: 2 SATA interfaces for HDD, up to 8 TB capacity for each disk
Installation
- Easy installation with PoE support
- Connect via HDMI for video output up to 4K
Usage
- Remote monitoring via mobile devices (iPhone, iPad, Android)
- Real-time audio recording with built-in microphone
- Flexible lighting options: color, IR, or smart dual-light mode
