General description

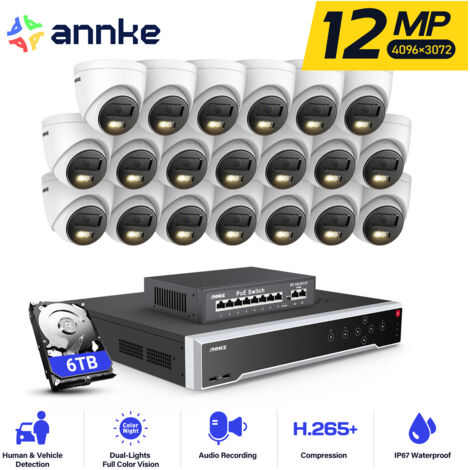

The ANNKE 12MP Outdoor Security Camera Kit includes a 32-channel NVR and 20 smart cameras equipped with dual light night vision capabilities. This advanced surveillance system is designed for comprehensive monitoring, featuring high-resolution recording and intelligent motion detection to enhance security for your property.Technical specifications
- Camera Resolution: 12 MP
- NVR Input: 32 IP camera channels (256 Mbps total incoming bandwidth)
- Video Output: HDMI up to 4K (3840 × 2160), VGA up to 1080p
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Max Recording Resolution: Up to 12 MP
- Max Playback Resolution: Up to 12 MP
- Max Playback Channels: 16 channels
- Storage: 4 SATA interfaces, up to 12 TB capacity for each HDD (48 TB total)
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W

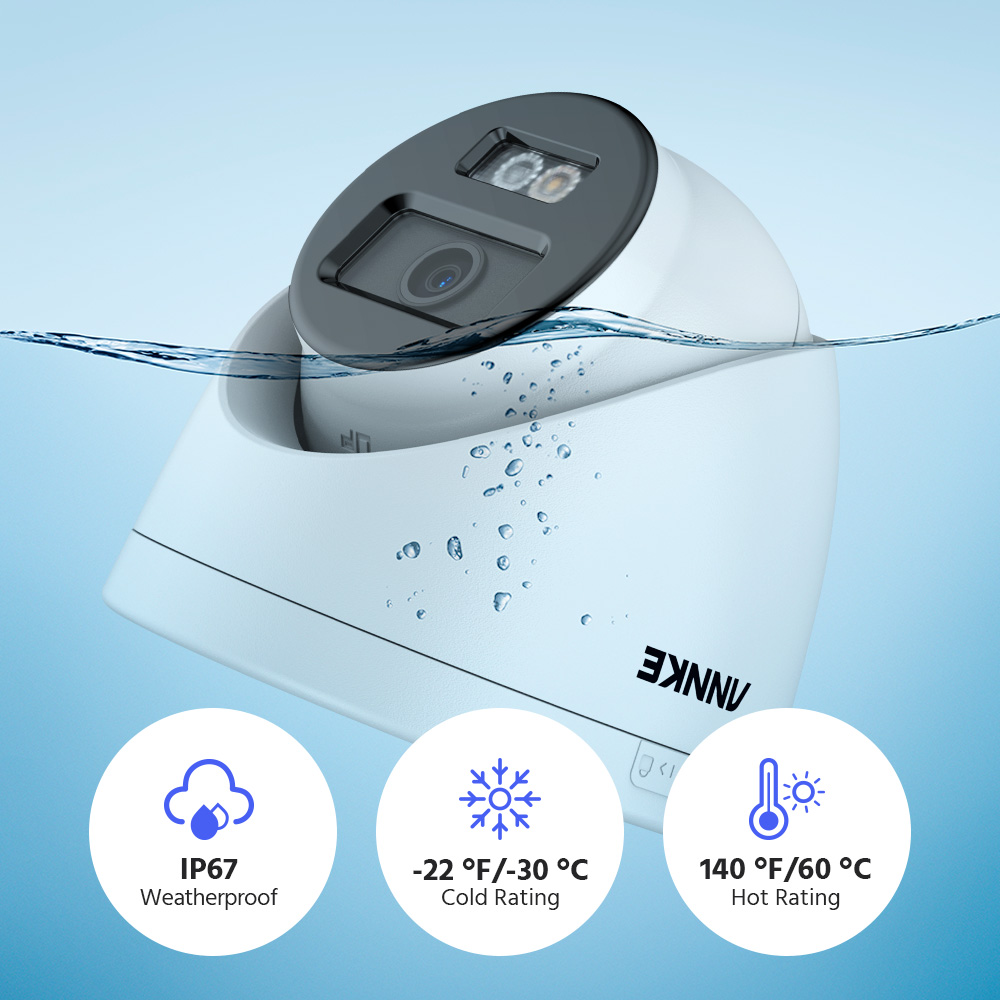

- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)

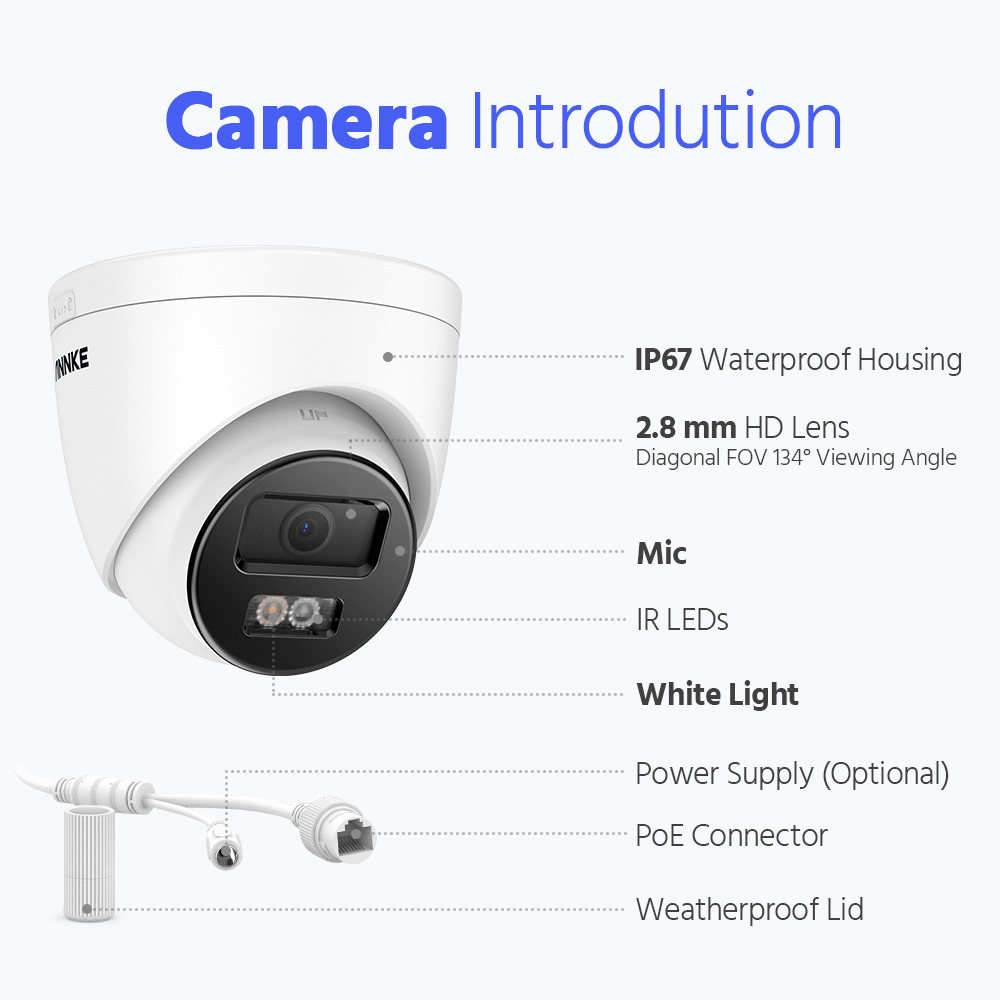

- Camera Dimensions: Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Camera Weight: 0.6 lb (285 g)
- NVR Dimensions: 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- NVR Weight: ≤11 lbs (5 kg)
Compatibility and accessories
- Supports up to 512 GB microSD/SDHC/SDXC for local storage
- Compatible with ONVIF protocol
- Includes 16 PoE ports for easy camera connectivity
Installation
- Easy installation with Power over Ethernet (PoE) for simplified wiring
- Mounting hardware included for secure camera placement
Usage
- Ideal for both indoor and outdoor surveillance
- Real-time audio monitoring with built-in microphone
- Advanced motion detection with human and vehicle recognition to reduce false alerts
