General description

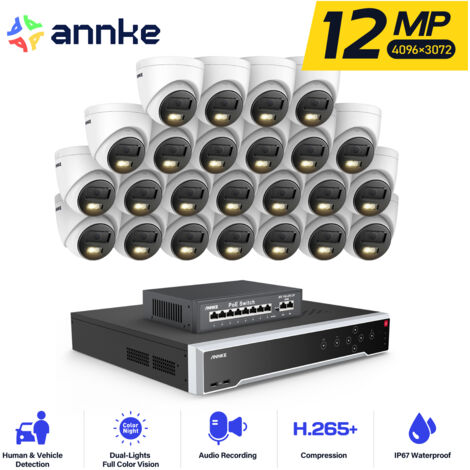

The ANNKE 12MP Outdoor Security Camera Kit includes a powerful 32-channel NVR and advanced surveillance cameras designed for comprehensive outdoor monitoring. With features like smart dual light night vision, email alerts, and motion detection, this kit ensures high-quality security for your property.Technical specifications
- Camera Resolution: 12 MP
- NVR Input: 32 IP camera channels (total incoming bandwidth of 256 Mbps)
- Video Output: HDMI up to 4K (3840 × 2160), VGA up to 1080p
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Max Recording Resolution: Up to 12 MP
- Max Playback Resolution: Up to 12 MP
- Max Playback Capacity: 2CH @12MP (20 fps), 4CH @8MP (25 fps), 8CH @4MP (30 fps), 16CH @1080p (30 fps)
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Lens: 2.8 mm
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Angle of View: Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Dimensions (Camera): Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Weight (Camera): 0.6 lb. (285 g)
- Dimensions (NVR): 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- Weight (NVR): ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 512 GB microSD/SDHC/SDXC storage
- 4 SATA interfaces for hard drives, supporting up to 12 TB each (48 TB total)
- 16 PoE ports (IEEE802.3at/af)
Installation
- Easy installation with PoE support for simplified wiring
- Metal and plastic housing suitable for indoor and outdoor use
Usage
- Real-time audio monitoring with built-in microphone
- Smart motion detection to reduce false alerts from non-human sources
- Remote access via APP/PC for convenient monitoring
