General description

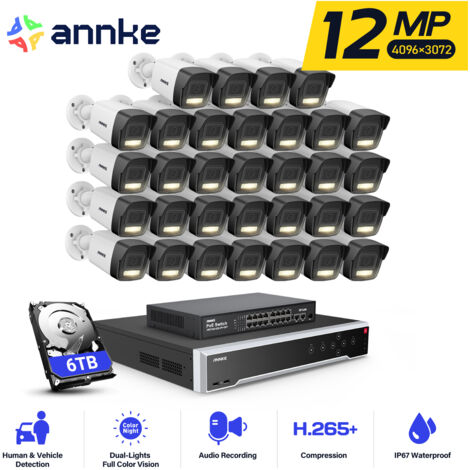

The ANNKE 12MP Outdoor Security Camera Kit includes a 32-channel NVR and 32 smart cameras, designed for comprehensive surveillance with dual light night vision capabilities. This kit is ideal for both residential and commercial use, providing high-resolution recording and advanced motion detection features.Technical specifications
- Camera Resolution: 12 MP (4096 x 3072)
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Max Playback Resolution: Up to 12 MP
- Max Recording Resolution: Up to 12 MP
- Incoming/Outgoing Bandwidth: 256 Mbps
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Dimensions (Camera): 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
- Weight (Camera): 0.6 lb (285 g)
- Dimensions (NVR): 445 mm × 400 mm × 71 mm (17.5" × 15.7" × 2.8")
- Weight (NVR): ≤11 lbs (5 kg)
Compatibility and accessories
- Supports up to 32 IP cameras
- 4 SATA interfaces for hard drives, supporting up to 12 TB each (48 TB total)
- Compatible with PoE (Power over Ethernet)
Installation
- Easy installation with PoE technology, allowing for long-distance transmission (100 to 300 m)
- Includes 16 PoE ports for direct camera connection
Usage
- Real-time monitoring via APP/PC
- Smart motion detection with human and vehicle recognition
- Audio recording with built-in microphone
- Remote access and playback capabilities
