General description

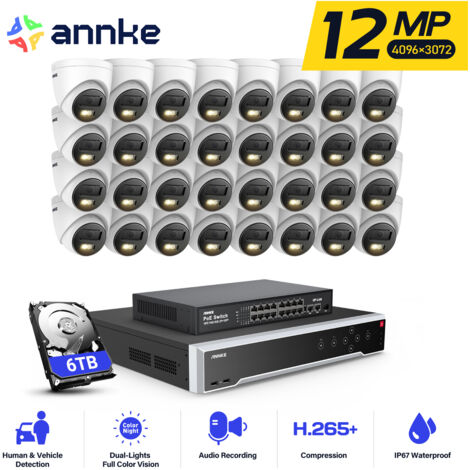

ANNKE 12MP Outdoor Video Surveillance Kit includes a 32-channel NVR and 32 smart dual light cameras, providing exceptional night vision capabilities and advanced motion detection features. This comprehensive surveillance system is designed for both indoor and outdoor use, ensuring reliable security monitoring in various environments.Technical specifications
- NVR: 12 MP recording resolution
- Camera: 12 MP turret network camera with 2.8 mm lens
- Video output: HDMI 4K (3840 × 2160), VGA
- Incoming bandwidth: 256 Mbps
- Max recording resolution: Up to 12MP
- Max playback resolution: Up to 12MP
- Max playback capacity: 2CH @12MP (20 fps), 4CH @8MP (25 fps)
- Storage: 4 SATA interfaces, up to 12 TB capacity for each HDD (48 TB total)
- Weight: 0.6 lb (285 g) for each camera; ≤11 lbs (5 kg) for NVR
- Dimensions (Camera): Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Dimensions (NVR): 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- Operating temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- IP67 weatherproof rating for cameras
Compatibility and accessories
- Supports up to 32 IP cameras
- Compatible with PoE (Power over Ethernet)
- Built-in microSD/SDHC/SDXC slot, up to 512 GB for camera storage
Installation
- Easy installation with PoE support for simplified wiring
- Mounting hardware included for camera installation
Usage
- Ideal for home and business security monitoring
- Real-time audio monitoring with built-in microphone
- Advanced motion detection to minimize false alerts
