General description

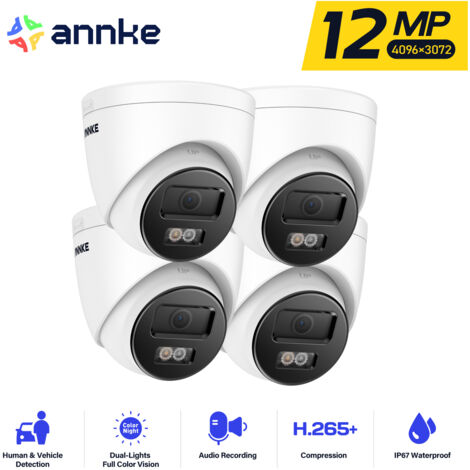

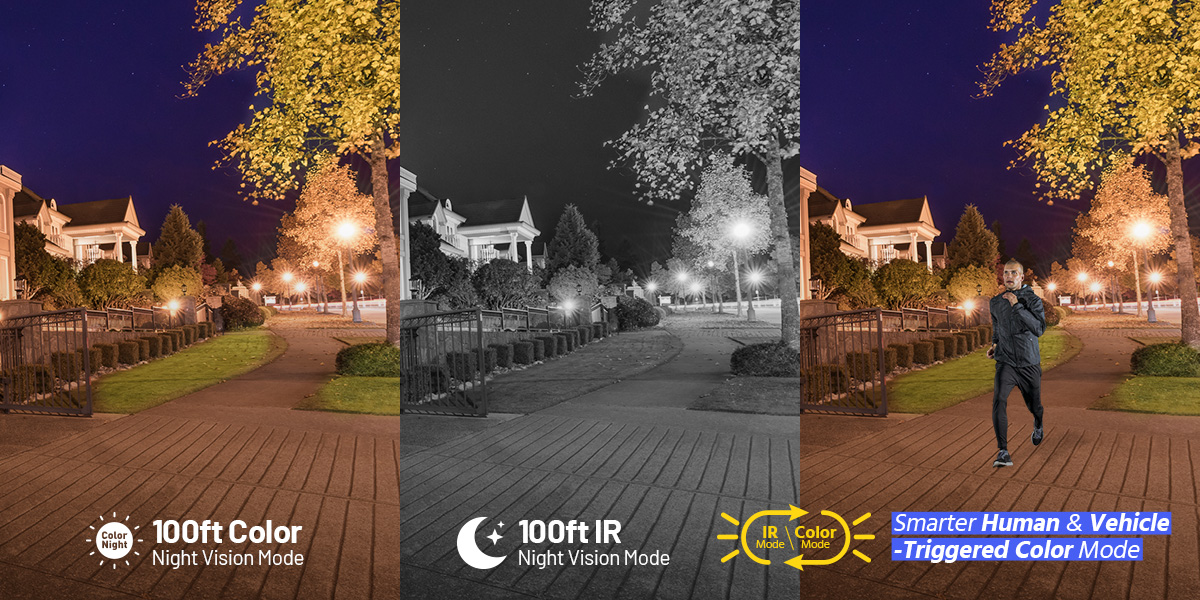

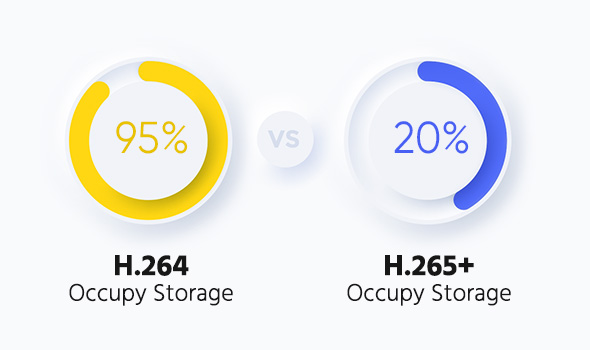

The ANNKE 12MP POE Security Camera is designed for outdoor surveillance, featuring advanced person and vehicle detection capabilities. With its high-resolution 12MP image quality and color night vision, this camera ensures comprehensive monitoring day and night. It supports H.265+ video compression for efficient storage and offers various customizable features to enhance security.
Technical specifications
- Camera: 1/2.7" Progressive Scan CMOS
- Max resolution: 4096*3072 (12MP)
- Video Compression: H.265+/H.265/H.264+/H.264 (Main stream), H.265/H.264/MJPEG (Sub-stream)
- Main Stream: 10 fps@4096*3072, up to 15 fps at lower resolutions
- Sub Stream: 12.5 fps (1280*720, 640*480, 640*360)
- Audio Input: Built-in Microphone
- Lens: 2.8 mm
- Angle of View: Horizontal FOV 113°, Vertical FOV 62°, Diagonal FOV 134°
- Min. Illumination: Color: 0.01 Lux, B/W: 0 Lux with IR
- Wide Dynamic Range: 120 dB WDR
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F – 140 °F (-30 °C – 60 °C)
- Dimension: 110 mm × 93 mm (4.33" × 3.66")
- Weight: 0.6 lb. (285 g)

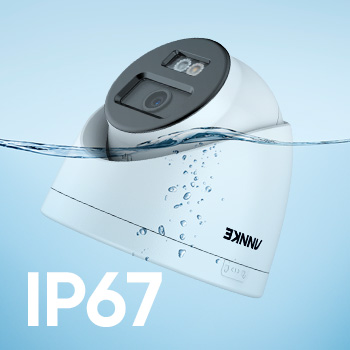

- IP Rating: IP67
Compatibility and accessories

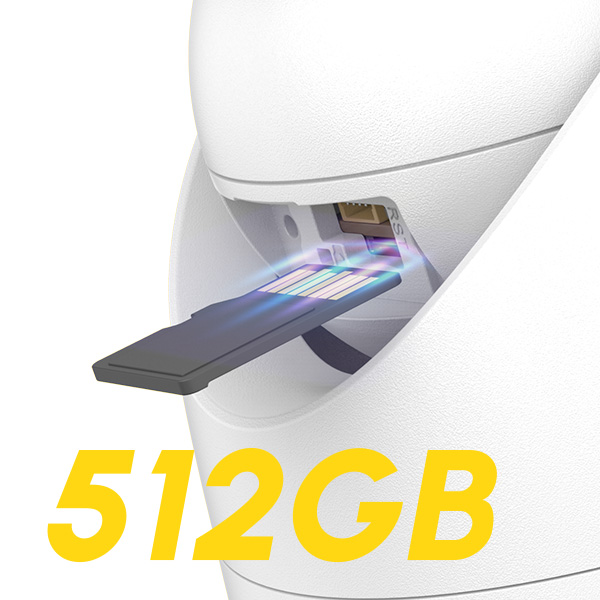

- Supports up to 512GB Micro SD Card (not included)

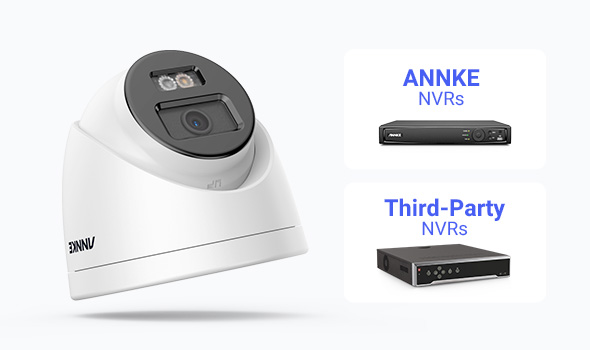

- Compatible with third-party ON-VIF PoE security cameras
Installation

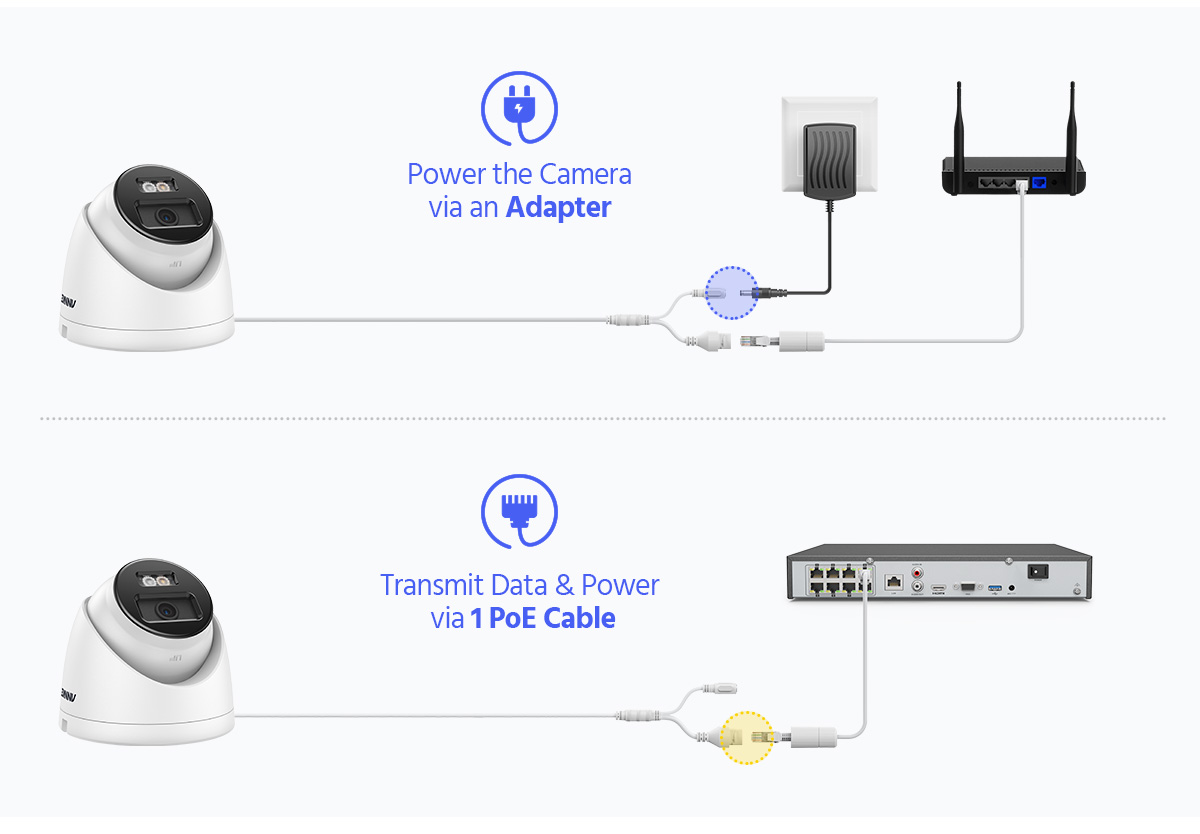

The camera can be powered via PoE or a separate DC power supply, simplifying installation. Just plug the adapter into an outlet and connect the network cable to a router for power and data transmission.
Usage

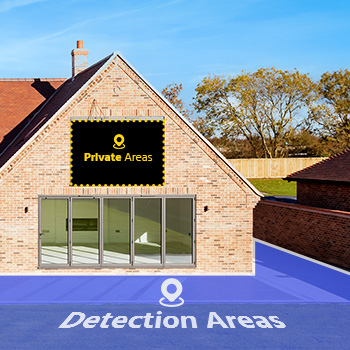

Customize motion detection areas for specific surveillance needs. The camera sends instant alerts via app notifications and email when motion is detected, enhancing security coverage.
