General description

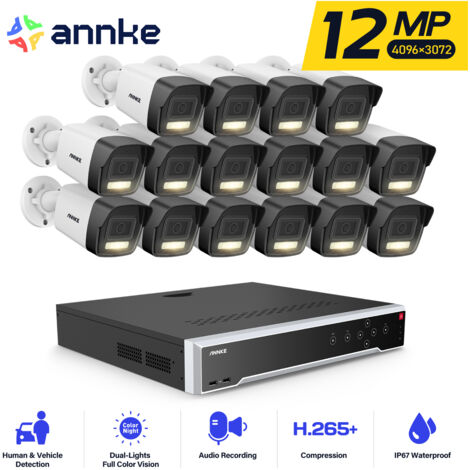

The ANNKE 12MP PoE Wired Video Surveillance Kit includes a 32-channel NVR and 16 smart outdoor cameras equipped with dual IR lights for enhanced night vision. This comprehensive security system is designed for both indoor and outdoor use, providing reliable monitoring with advanced features such as email alerts and motion detection. The system supports remote access via an app or PC, ensuring you can keep an eye on your property from anywhere.Technical specifications
- NVR: 12 MP recording resolution
- Camera: 12 MP smart network camera with 2.8 mm lens
- Video Output: HDMI up to 4K (3840 × 2160), VGA up to 1080p
- Incoming Bandwidth: 256 Mbps
- Max Recording Resolution: Up to 12MP
- Max Playback Resolution: Up to 12MP
- Max Playback Channel: 16 Channel
- Storage: Supports up to 12 TB per HDD (48 TB total) with 4 SATA interfaces
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F – 140 °F (-30 °C – 60 °C)
- Camera Dimensions: 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
- Camera Weight: 0.6 lb. (285 g)
- NVR Dimensions: 445 mm × 400 mm × 71 mm (17.5" × 15.7" × 2.8")
- NVR Weight: ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 32 IP cameras (including 16 PoE channels)
- Compatible with H.265+/H.265/H.264+/H.264/MPEG4 video compression formats
- Includes 4 SATA interfaces for hard drives
Installation
- Easy installation with PoE technology, allowing for long-distance transmission (100 to 300 m)
- Includes 16 PoE ports for direct camera connection
Usage
- Real-time monitoring with email alerts for motion detection
- Audio recording capability with built-in microphone
- Advanced motion detection with human and vehicle recognition to minimize false alerts
