General description

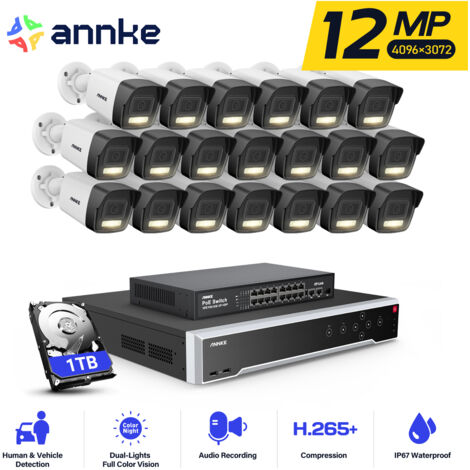

The ANNKE 12MP PoE Wired Video Surveillance Kit is a comprehensive security solution featuring a 32-channel NVR and 20 smart cameras equipped with dual IR lights for enhanced night vision. This kit allows for remote control via an app or PC, ensuring you can monitor your property from anywhere. With a robust 1TB storage capacity, it provides ample space for recording high-resolution footage.Technical specifications
- NVR: 12 MP recording resolution
- Camera Inputs: 32 IP camera inputs (total incoming bandwidth of 256 Mbps)
- Video Output: HDMI 4K (3840 × 2160), independent HDMI and VGA outputs
- Compression Formats: H.265+/H.265/H.264+/H.264/MPEG4
- Storage: 4 SATA interfaces, supports HDD up to 12 TB each (48 TB total)
- Camera: 12 MP smart network camera with 2.8 mm lens
- Minimum Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Field of View: Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Dimensions (Camera): 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
- Weight (Camera): 0.6 lb. (285 g)
- Dimensions (NVR): 445 mm × 400 mm × 71 mm (17.5" × 15.7" × 2.8")
- Weight (NVR): ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 32 IP cameras
- Compatible with PoE (Power over Ethernet)
- Built-in microSD/SDHC/SDXC slot, supports up to 512 GB
Installation
- Easy installation with PoE technology, allowing for long-distance transmission (100 to 300 m)
- Includes 16 PoE ports for direct camera connection
Usage
- Ideal for outdoor security monitoring
- Real-time audio monitoring with built-in microphone
- Advanced motion detection with human and vehicle recognition
- Remote access via app or PC for real-time monitoring and alerts
