General description

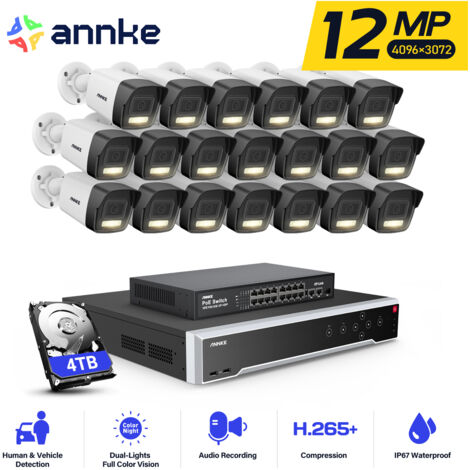

The ANNKE 12MP PoE Wired Video Surveillance Kit is a comprehensive security solution featuring a 32-channel NVR and 20 smart cameras equipped with dual IR lights for enhanced night vision. This kit is designed for outdoor use, providing robust surveillance capabilities with remote access via app or PC, ensuring peace of mind for your property.Technical specifications
- NVR Resolution: 12 MP
- Camera Resolution: 4096 × 3072 (12 MP)
- Video Output: HDMI up to 4K (3840 × 2160), VGA up to 1080p
- Incoming Bandwidth: 256 Mbps
- Max Playback Resolution: Up to 12 MP
- Max Playback Capacity: 2CH @12MP (20 fps), 4CH @8MP (25 fps), 8CH @4MP (30 fps), 16CH @1080p (30 fps)
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F – 140 °F (-30 °C – 60 °C)
- Dimensions (Camera): 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
- Weight (Camera): 0.6 lb. (285 g)
- Dimensions (NVR): 445 mm × 400 mm × 71 mm (17.5" × 15.7" × 2.8")
- Weight (NVR): ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 32 IP cameras
- Compatible with 4 SATA hard drives, up to 12 TB each (48 TB total)
- Built-in microSD/SDHC/SDXC slot, supports up to 512 GB
Installation
- Easy installation with PoE technology, allowing for long-distance transmission (100 to 300 m)
- Includes 16 PoE ports for direct camera connection
Usage
- Remote access via mobile app or PC for real-time monitoring
- Smart motion detection with human and vehicle recognition to minimize false alerts
- Integrated microphone for audio recording and monitoring
Other information
