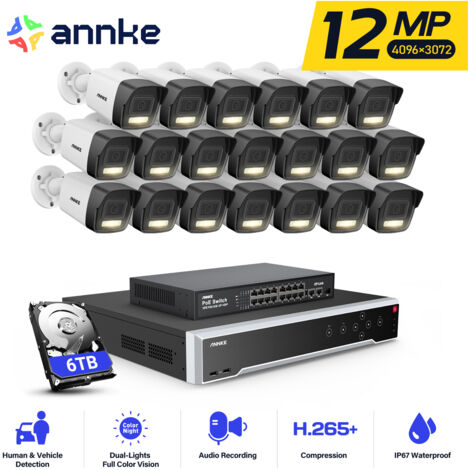

ANNKE 12MP PoE Wired Video Surveillance Kit 32CH NVR 20×Smart Cameras Dual IR Lights Night Vision, Email Alert, APP/PC Remote Outdoor Surveillance Camera Kit 6TB

Name: ANNKE 12MP PoE Wired Video Surveillance Kit 32CH NVR 20×Smart Cameras Dual IR Lights Night Vision, Email Alert, APP/PC Remote Outdoor Surveillance Camera Kit 6TB
Brand: ANNKE
SKU: AE-N931BB6-91DD*20
Price: 2872.99 GBP
Availability: InStock

~~£8,618.97~~

Sold by ANNKE Security kit

Product information

Description

General description

The ANNKE 12MP PoE Wired Video Surveillance Kit is a comprehensive security solution featuring a 32-channel NVR and 20 smart cameras equipped with dual IR lights for enhanced night vision. This kit is designed for outdoor use, providing reliable surveillance with advanced features such as email alerts and remote access via app or PC.

Technical specifications

NVR:

Recording resolution: 12 MP

Camera IP inputs: 32 (total incoming bandwidth: 256 Mbps)

Video output: HDMI 4K (3840 × 2160), independent HDMI and VGA outputs

Compression formats: H.265+/H.265/H.264+/H.264/MPEG4

Hard drive interfaces: 4 SATA

Max HDD capacity: 12 TB per HDD (48 TB total)

Camera:

Image sensor: 1/2.7" Progressive Scan CMOS

Max resolution: 4096*3072 (12MP)

Lens: 2.8 mm

Min. illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Field of view: Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°

Operating temperature: -22 °F to 140 °F (-30 °C to 60 °C)

Dimensions (Camera): 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")

Weight (Camera): 0.6 lb (285 g)

Weight (NVR): ≤11 lbs (5 kg)

Compatibility and accessories

Supports up to 512 GB microSD storage for each camera

Compatible with PoE (802.3af) and DC 12V power supply

Installation

Installation involves connecting the cameras to the NVR via PoE, ensuring proper placement for optimal coverage. The NVR can be set up in a secure location with access to power and network connections.

Usage

This surveillance kit is ideal for monitoring residential and commercial properties. Users can access live feeds and recorded footage remotely through the dedicated app or PC software, allowing for real-time surveillance and alerts.

Other information

Features

Brand
ANNKE
Width
6.6 cm
Height
6.91 cm
Voltage
12 V
Material
Plastic
