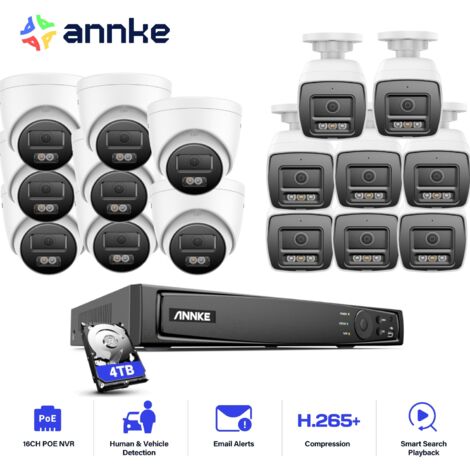

ANNKE 12MP Wired CCTV System, 16CH NVR with 16X 12MP PoE Cameras, Color Night Vision, APP/PC Remote, 8 Towers + 8 Bullets, 4TB HDD

Name: ANNKE 12MP Wired CCTV System, 16CH NVR with 16X 12MP PoE Cameras, Color Night Vision, APP/PC Remote, 8 Towers + 8 Bullets, 4TB HDD
Brand: ANNKE
SKU: AE-N46PCK4-98DD-98DN
Price: 1751.99 GBP
Availability: InStock

~~£5,255.97~~

Sold by ANNKE Security kit

Product information

Description

General description

ANNKE 12MP Wired CCTV System is a comprehensive security solution featuring a 16-channel NVR and 16 high-definition 12MP PoE cameras. This system provides exceptional image clarity and advanced features for both day and night surveillance, ensuring that every detail is captured with precision.

Technical specifications

Camera Type: IP Camera

Image Sensor: 1/2.7" Progressive Scan CMOS

Max Resolution: 4096 x 3072 (12MP)

Main Stream: 50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720); 60 Hz: 10 fps@4096*3072, 15 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720)

Substream: 50 Hz: 12.5 fps (1280*720, 640*480, 640*360); 60 Hz: 15 fps (1280*720, 640*480, 640*360)

Video Compression: H.265+/H.265/H.264+/H.264 (Main stream); H.265/H.264/MJPEG (Sub-stream)

Video Bitrate: 32 Kbps - 16 Mbps

Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Input: Built-in Microphone

Lens: 2.8 mm

Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Angle of View: Horizontal FOV 113°, Vertical FOV 62°, Diagonal FOV 134°

Supplement Light Type: Smart Dual-Light, IR, White Light

Supplement Light Range: Up to 30 m

Motion Detection: Supports Human & Vehicle detection

Image Enhancement: BLC, HLC, 3D DNR

Wide Dynamic Range: 120 dB WDR

Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

API: Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G)

Region of Interest (ROI): 1 fixed region for main stream

Privacy Mask: 4 programmable polygon privacy masks

General Function: Rotate mode, mirror, password protection, remote access

Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Housing: Metal & Plastic

Color: White & Black

Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB

Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W

Operating Temperature: -22 °F – 140 °F / -30 °C – 60 °C

Indoor/Outdoor Use: Indoor/Outdoor

Interface Protection: IP67

Dimension (L X W X H): 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")

Weight: 0.6 lb / 285 g

Other information

Features

Brand
ANNKE
Width
6.6 cm
Height
6.91 cm
Depth
17.8 cm
Voltage
12 V
