General description

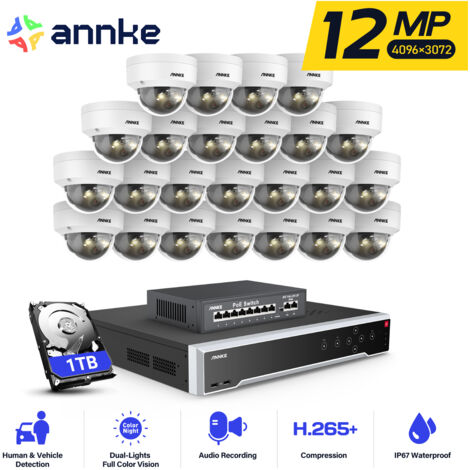

The ANNKE 12MP Wired Video Surveillance Kit includes a 32-channel NVR and 24 smart dual light cameras, providing comprehensive outdoor surveillance with advanced features such as night vision, email alerts, and motion detection. This system is designed for both residential and commercial use, ensuring high-quality video monitoring and security.Technical specifications
- NVR: 12 MP recording resolution
- Camera Input: 32 IP camera inputs (total incoming bandwidth of 256 Mbps)
- Video Output: HDMI 4K (3840 × 2160), independent HDMI and VGA outputs
- Compression Formats: H.265+/H.265/H.264+/H.264/MPEG4
- Storage: 4 SATA interfaces, supports HDD up to 12 TB each (48 TB total)
- Camera: 12MP smart dual light dome camera with 2.8 mm lens
- Minimum Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Field of View: Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Dimensions (Camera): Ø110 mm × 93 mm (Ø4.33" × 3.66")
- Weight (Camera): 0.6 lb (285 g)
- Dimensions (NVR): 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- Weight (NVR): ≤11 lbs (5 kg)
Installation
- Easy installation with Power over Ethernet (PoE) support
- Connect the NVR to the cameras using Ethernet cables
- Mount cameras in desired locations for optimal coverage
Usage
- Remote access via APP/PC for real-time monitoring
- Receive email alerts for motion detection events
- Playback recorded footage directly from the NVR
- Adjust settings for motion detection sensitivity and audio recording
